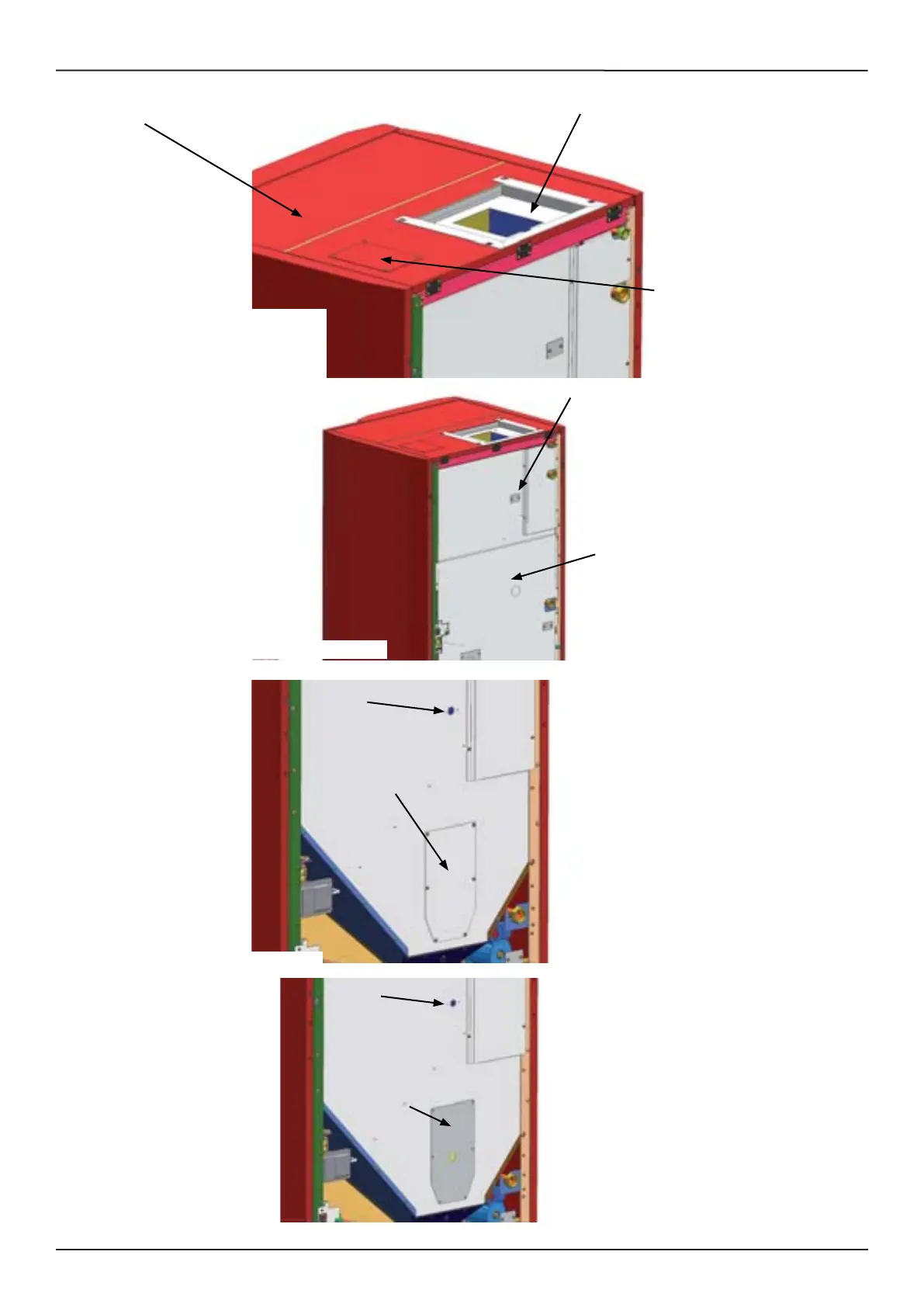

INSTRUCTIONS FOR ASSEMBLY OF THE LP30 CYCLONE TANK LIDS
10
5
6
7
8
Front door
Cyclone tank support
Position the cyclone tank support
(the cyclone tank will be rested
and xed to this part)
Additional door
pellet feed (only used if the
system is temporarily not in
use)
plate
Remove the plate and the rear panel
rear panel
hole
hole
Re-assemble the perforated lid of the kit using
the previously-removed screws (the hole is used
to house the pellet level proxy sensor).
Re-mount the previously-removed rear panel.
Remove the lid
lid
Perforated
lid
To Next Page
