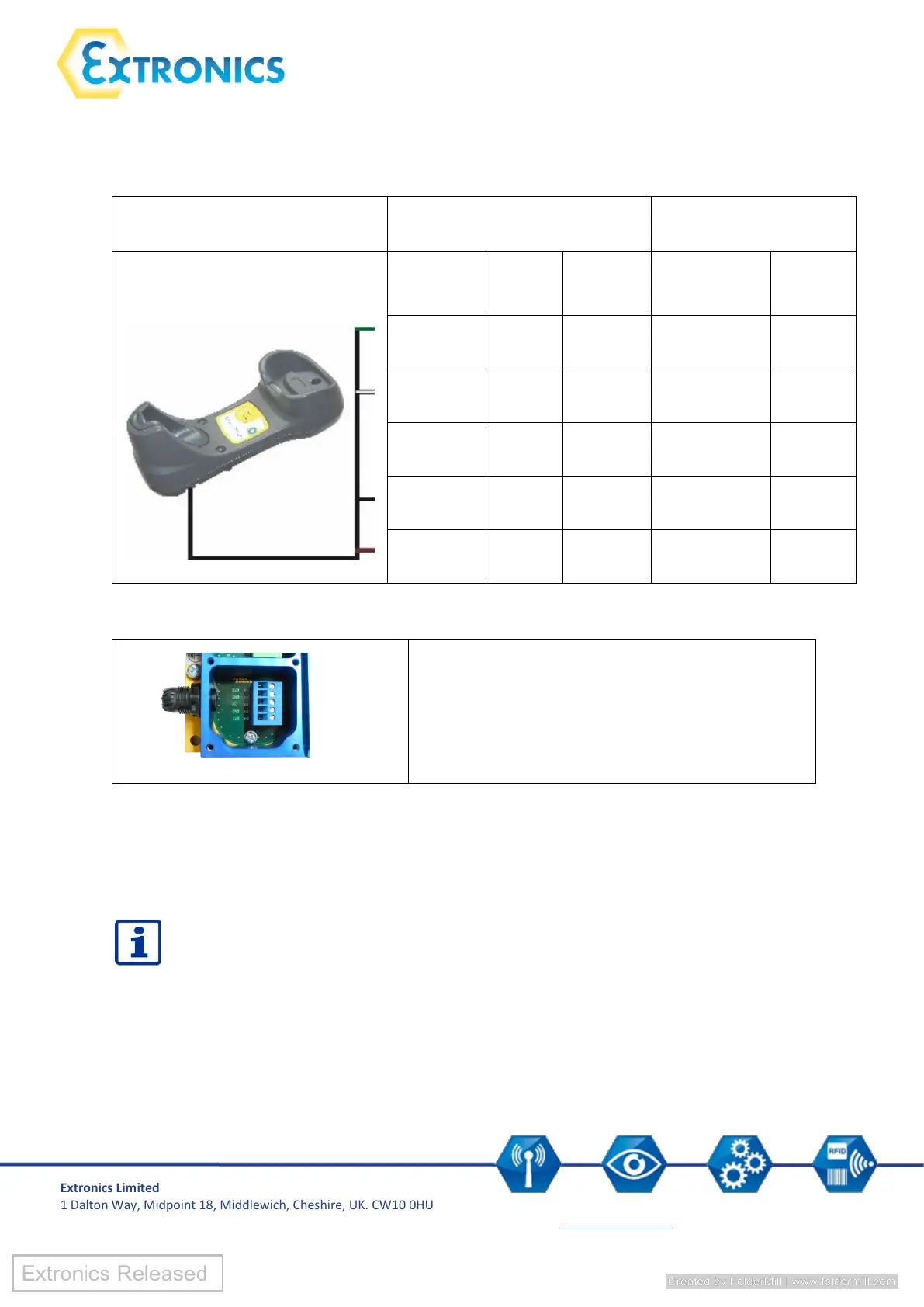

Direct connection of base station without plug connection to the RS232 iSCANPS – connection with
cable end sleeve:
Pin assignment of scanner
USB connection cable
Power supply
RJ45 Pin
assignment
Wire
colours
Definition
Connection
terminal
power supply
Definition
2
Green
D+
X9
D+
10
White
D-
X10
D-
X11
PE
4
Black
GND
X12
GND
7
Brown
+UB
X13
+UB
Intrinsically safe connection box
of the USB iSCANPS power supply
after removal of the wires of the plug connection
To fully operate the Bluetooth handheld scanner you will require the programming information
contained in the manual published by SICK AG (www.SICK.com).
