4 System assembly

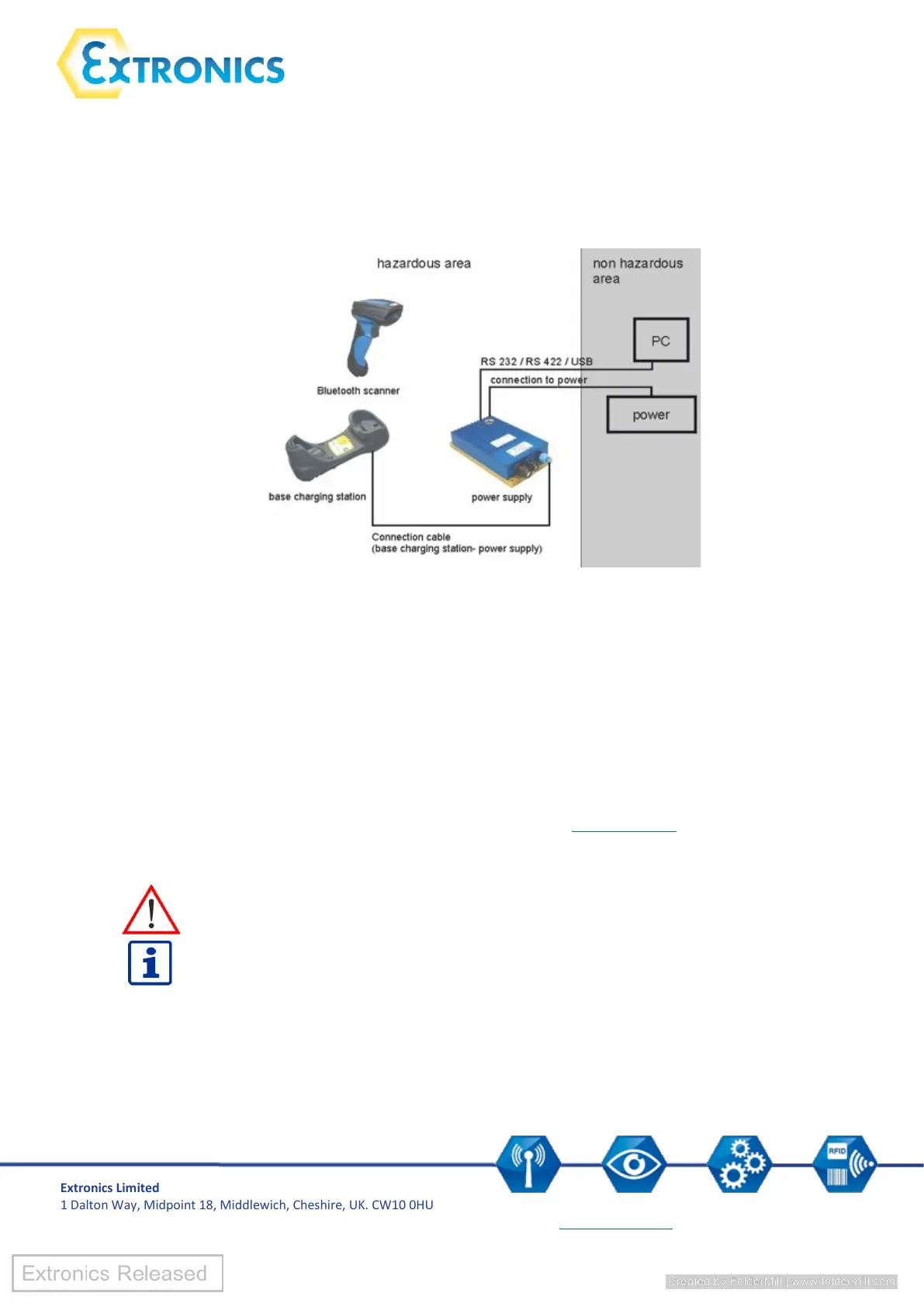

4.1 Assembly 1 description
The Bluetooth handheld scanner was designed for use in hazardous areas. Normal operation requires
a base station, a connection cable between base station and power supply, power supply, and
connection cable(s) between power supply and a PC.
External connection cables:
Data cable:
USB 0.2 - 2.5 mm², 4-wire
RS232 0.2 - 2.5 mm², 3-wire
Power cable:
0.2 - 2.5 mm², 3-wire
The handheld scanner and the power supply can be connected and operated in the hazardous area.
For safe installation please refer to the manual issued by SICK AG (www.SICK.com)
The warnings and notes of caution contained in these operating instructions and in the
manual issued by SICK AG (www.SICK.com) must be adhered to.
For the professional use of the power supply iSCANPS the operating instructions of the
manual of the power supply are necessary.
