Page K-21
Repair and Service Manual
B
B
MECHANICAL BRAKES
Read all of Section B and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
Inspect the bushings (9,10) and spacer. If they are worn,
replace them with new ones.

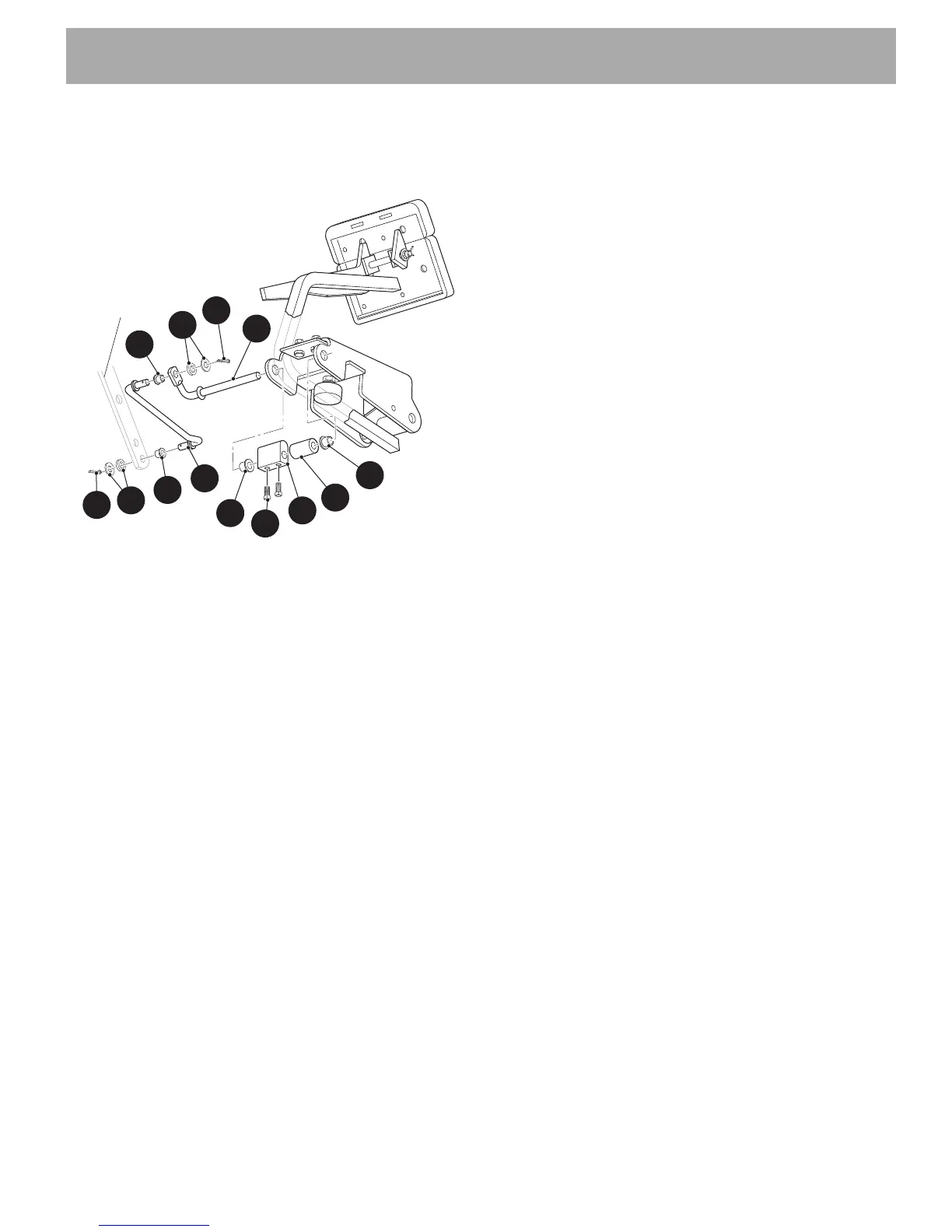

Fig. 29 Parking Brake Release Linkage and Kick-Off
Cam Removal and Installation.
Installation is in the reverse order of disassembly.
With the parking brake engaged and fully latched, there
mus be no gap between the top of the cam and the latch
arm. To adjust the kick-off cam (6), engage the parking
brake and loosen the two cam setscrews (5) and rotate
the cam until it contact the latch arm. Tighten the set-
screws to 45 - 55 in. lbs. (5 - 6 Nm) torque. Always use
new epoxy patch setscrews when replacing the kick-off
cam.
Accelerator
Pedal
4
3
2
7
2
3
4
1
9
5
6
8
10
