FRONT SUSPENSION AND STEERING
Read all of Section B and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.

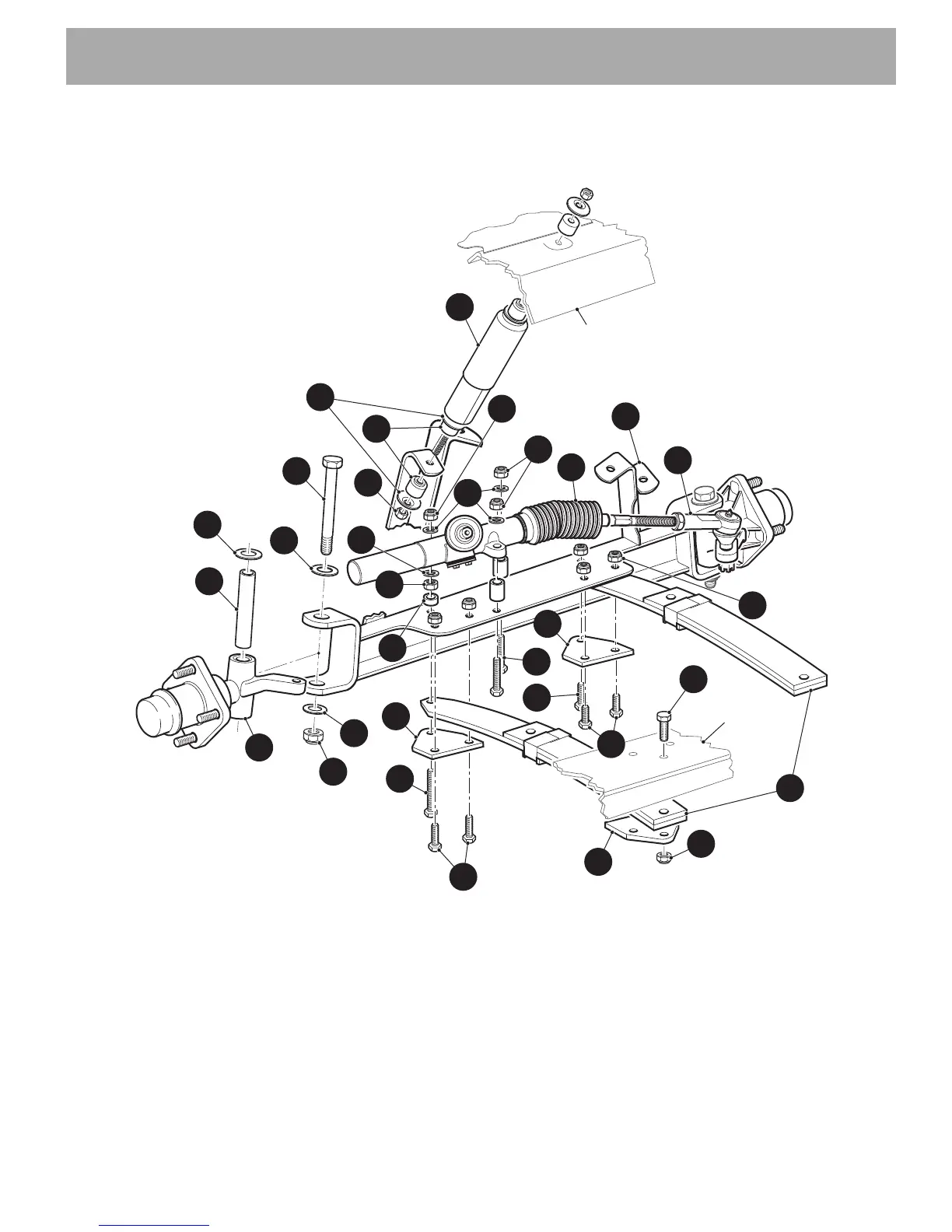

Fig. 8 Express S6 Front Suspension Components
F
ront Shock Absorber Replacement
Tool List Qty.
Wrench, 9/16”.............................................................. 1
Remove the nut (1) from the bottom of the shock
absorber (2) at the front axle (3).
Compress shock absorber to clear the mounting
bracket.
Loosen the nut securing the top of the shock absorber to
the vehicle frame and then rotate the shock absorber
while holding the nut in place with a wrench.
Remove the shock
absorber.
Installation of shock absorber is reverse of disassembly.
Mounting nuts should be tightened until rubber bushings
(4) expand to diameter of shock absorber washers (5).
*NOTE: Tie Rod Not Shown for Clarity
Part of
Frame
Part of
Frame
EXPRESS S6
2
5
4
1
7
9
11
12
24
20
10
6
8
18
26
27
17
25
28
18
13
24
3
29
16
15
15
14
21
23
22
19
