Page F-18
Repair and Service Manual
B
ELECTRONIC SPEED CONTROL
Read all of Section B and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
Mount new solenoid and reconnect wiring. Tighten the
solenoid mounting nuts to 67 - 82 in. lbs. (8 - 9 Nm)
torque, the #10 terminal nuts to 13 - 17 in. lbs. (1 - 2
Nm) and the 5/16" terminal nuts to 50 - 60 in. lbs (6 - 7
Nm) torque.
Reconnect the BL- battery cable and replace the seat.

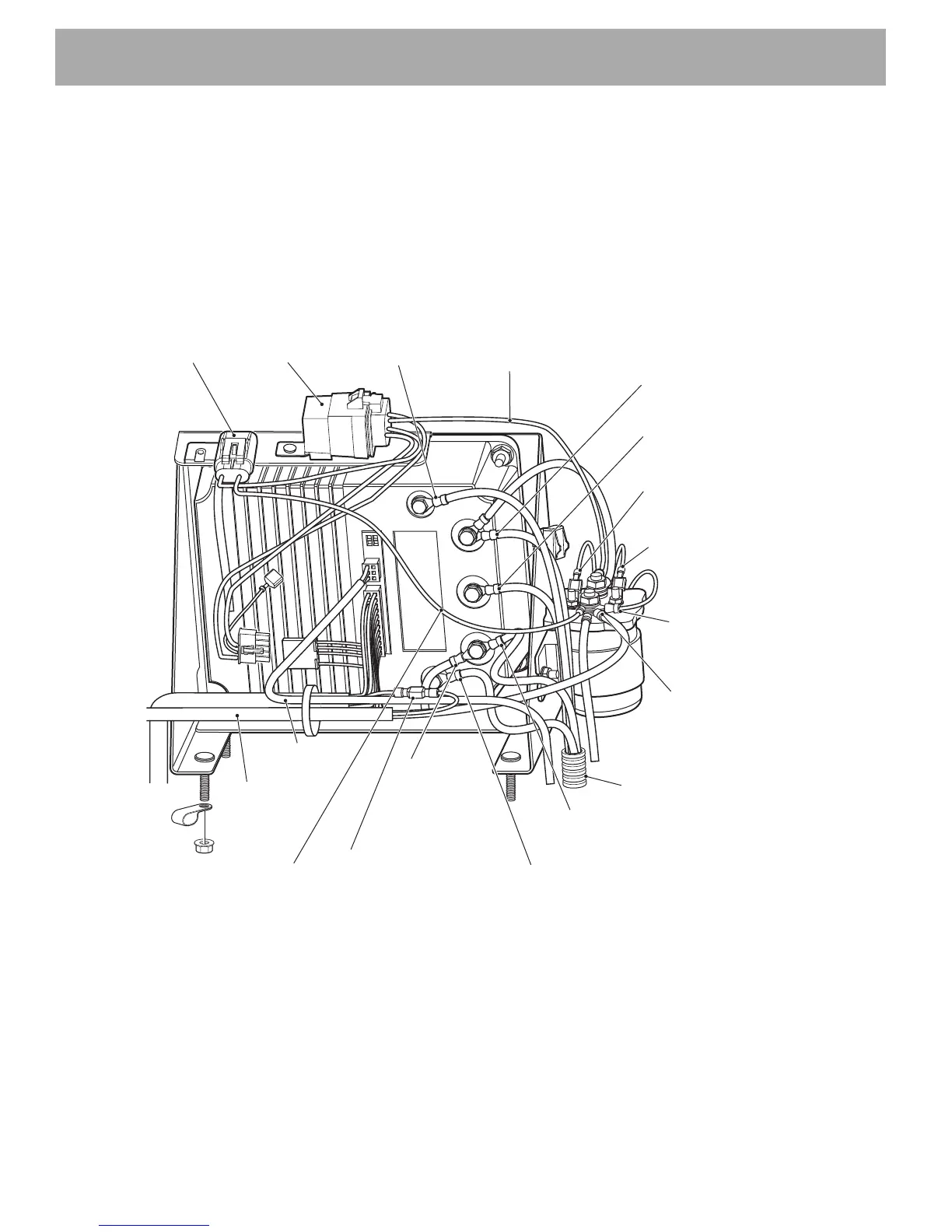

Fig. 18 Controller Wiring
J1
J2
F1
F2
B+
B-
M-
#10 Black
From Motor F2
(Power Harness)
#4 Black
From Motor A1
(Power Harness)
#18 Red
From Tow
Switch and
Reverse Buzzer
(Control Harness)
#10 White
From Charger
Receptacle
#4 Black
From Battery (-)
(Power Harness
#4 Black
From Charger
(Charger Harness)
#18 Red/White
From Tow Switch
(Control Harness)
To Ignition Interlock
(Charger Receptacle)
Charger Receptacle
Harness
Speed Sensor
Harness
Power Harness
RED
From Walkaway
Fuse
To Solenoid
Walkaway
Relay
Walkaway
Fuse
PURPLE
From Walkaway Relay
To Solenoid
J3
#18 Yellow
From J1 Pin 5
(Control Harness)
#18 Blue
From J1 Pin 17
(Control Harness)
#4 Black
From Motor A1
(Power Harness)
#4 Black
From Motor A2
(Power Harness)
To Next Page
