Ezviz CS-CV246 User Manual

7

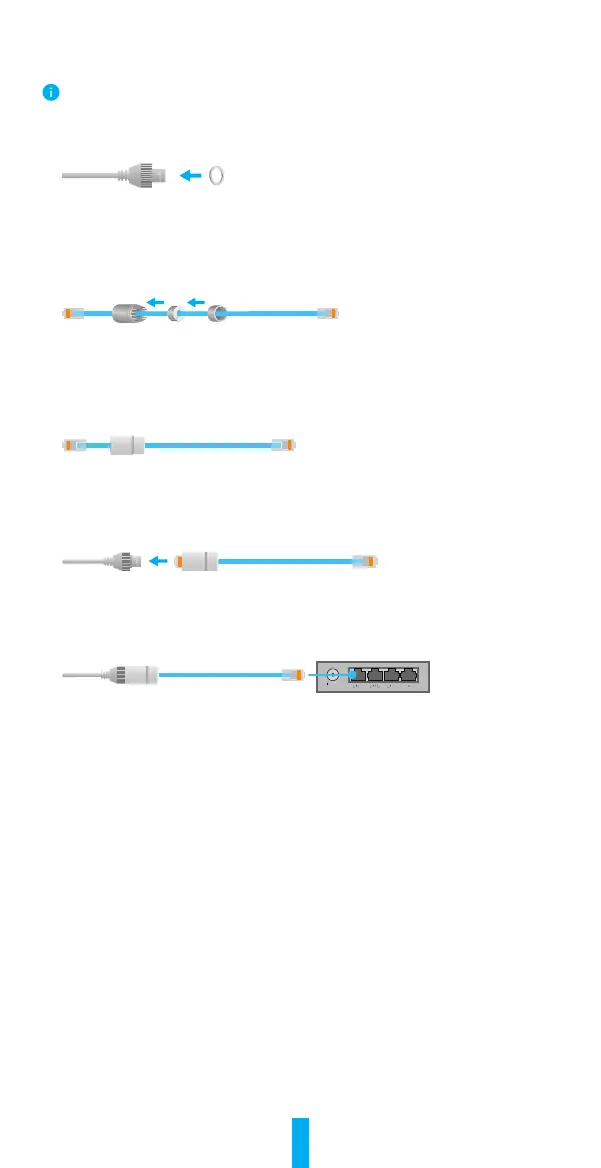

4� Waterproof Kit Installation (Optional)
If the camera is installed outdoors or in humid environments, please use the waterproof kit.
1. Insert the gasket into the Ethernet port of the camera.
Ethernet Port Gasket
2. Thread A through the nut, the gasket and the endcap.
A BNut Gasket
Endcap
3. Tighten the nut and the endcap�
A BNut Endcap
4. Thread A into the Ethernet port of the camera and tighten the nut.
Ethernet Port A
5. Connect B to the LAN port of the router.
B
Router

Ezviz CS-CV246 Specifications

General

Resolution	1920 x 1080
Audio	Built-in microphone and speaker
Power Supply	DC 5V/1A
Image Sensor	1/2.7"Progressive Scan CMOS
Day & Night	IR-cut filter with auto-switching
DNR	3D DNR
Video Compression	H.264
Max. Resolution	1920 x 1080
Power Consumption	Max. 5W
Night Vision	Up to 10 meters
Connectivity	IEEE802.11 b/g/n
Storage	MicroSD card slot
Lens	4mm @ F2.2
Frame Rate	Up to 15 fps
Smart Alarm	Motion detection
Protocol	EZVIZ Cloud Proprietary
Interface Protocol	EZVIZ Cloud Proprietary
Operating Conditions	-10°C to 45°C, Humidity 95% or less (non-condensing)
Operating Temperature	-10°C to 45°C
Weight	256 g
