Faber Chloe - Optional Chimney Installation; Chimney Kit Hood Preparation

18

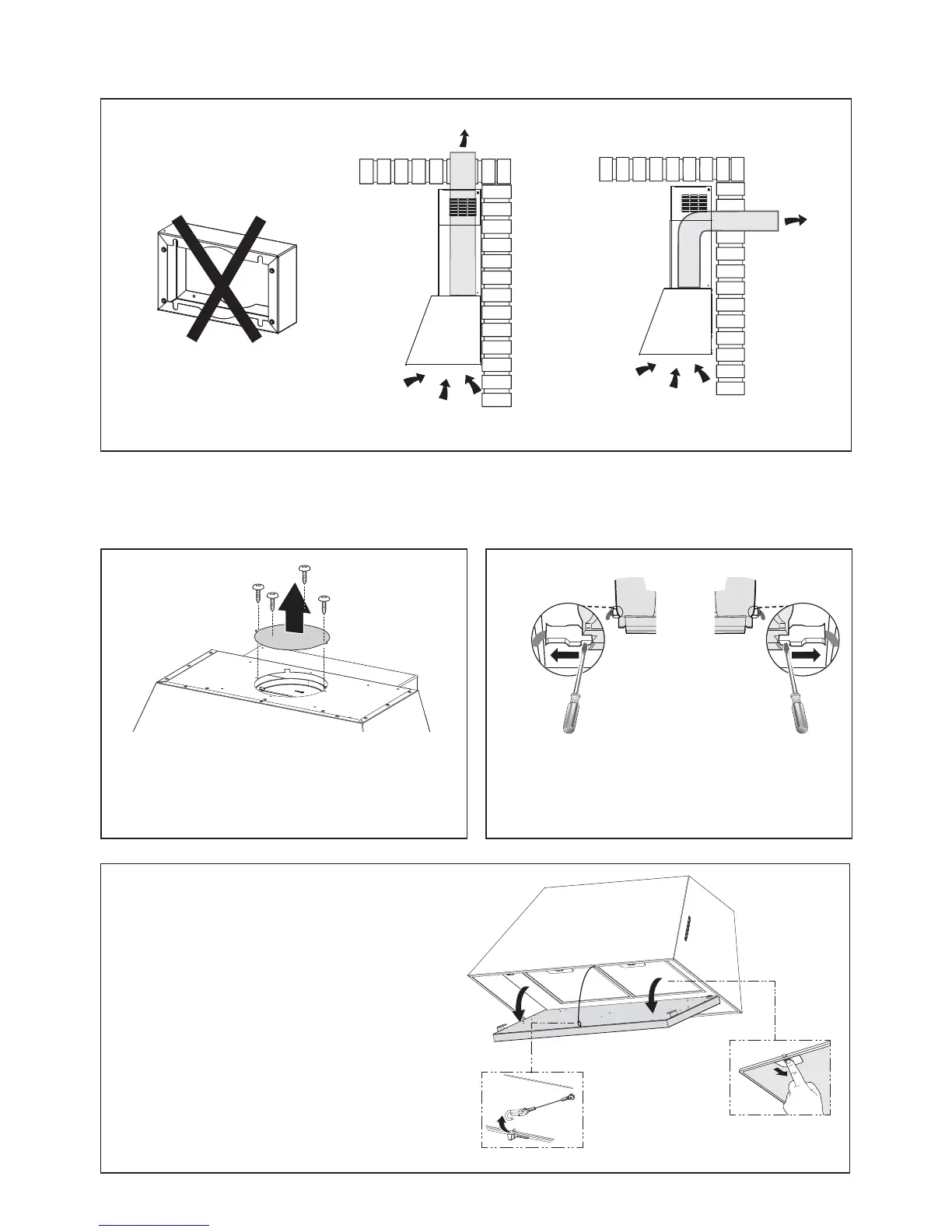

Vertical and Horizontal Ducted Venting Installation with the optional Kit Chimney
Remove the 4 screws as shown and take off the cover plates.
Do not discard and set aside for future use.
)URPLQVLGHWKHKRRGXVHDÀDWKHDGVFUHZGULYHUDV
shown in image above, to disconnect the left and right
Connectors from the blower.
1 2
3
Open the panel, unlock the security cable as shown.
5HPRYHWKH¿OWHUVE\SXVKLQJWKHOHYHUWRZDUGVWKH
back of the unit and at the same time pulling downward.
'RQRWGLVFDUGWKH¿OWHUVDQGVHWDVLGHIRUIXWXUHXVH
Installation with the optional Kit Chimney - Preparation of Hood
