Re-secure the Cover Plate as shown with the
screws removed previously.
6
5

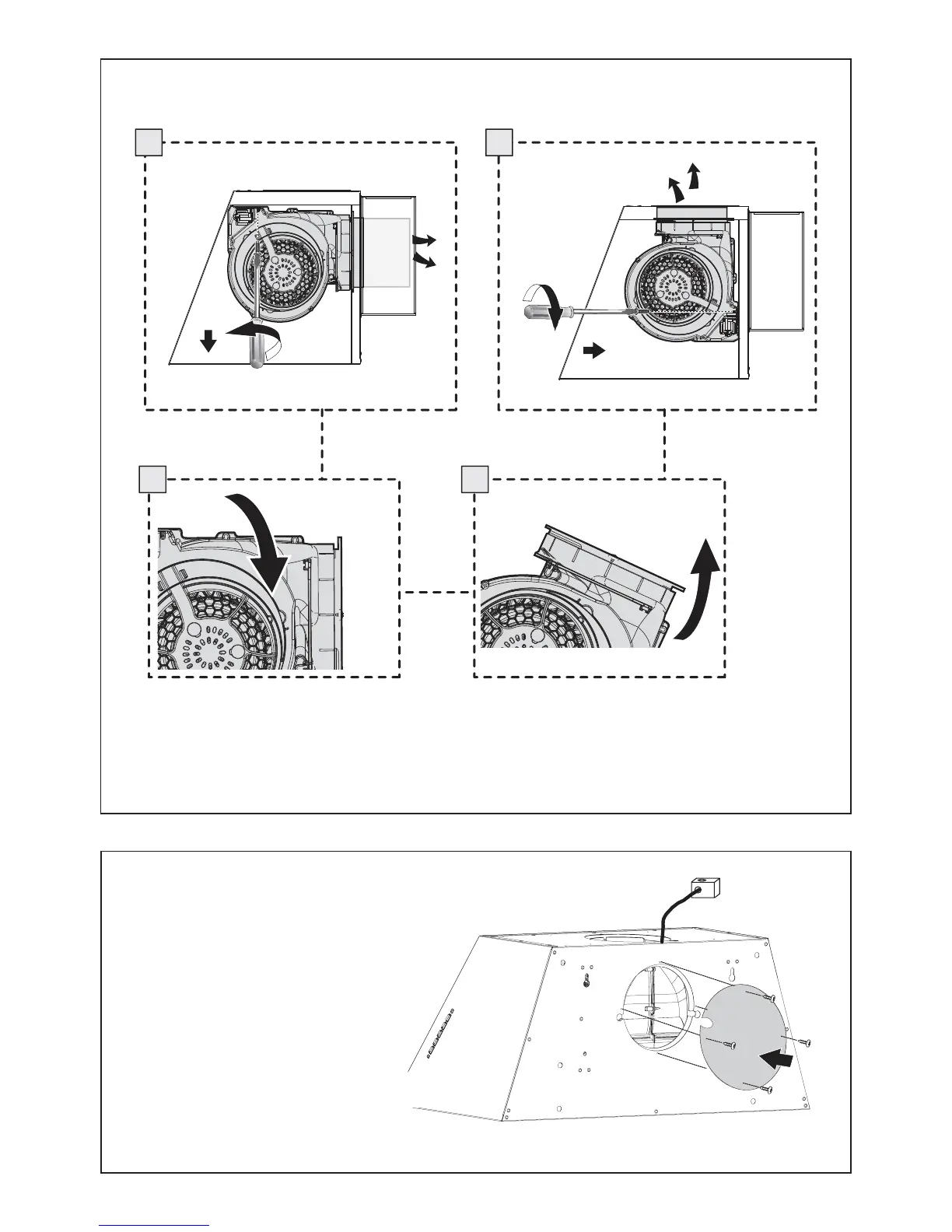

Unscrew the 2 screws that hold the blower and unlock it from the initial position as shown in Image a.
E F
D G
[
[
After removing blower rotate as shown until it is in the correct rear venting position as shown in Image b-c.
Use the two screws (Posi-Drive) that were removed to secure the blower as shown in Image d.
