CUT-OUT

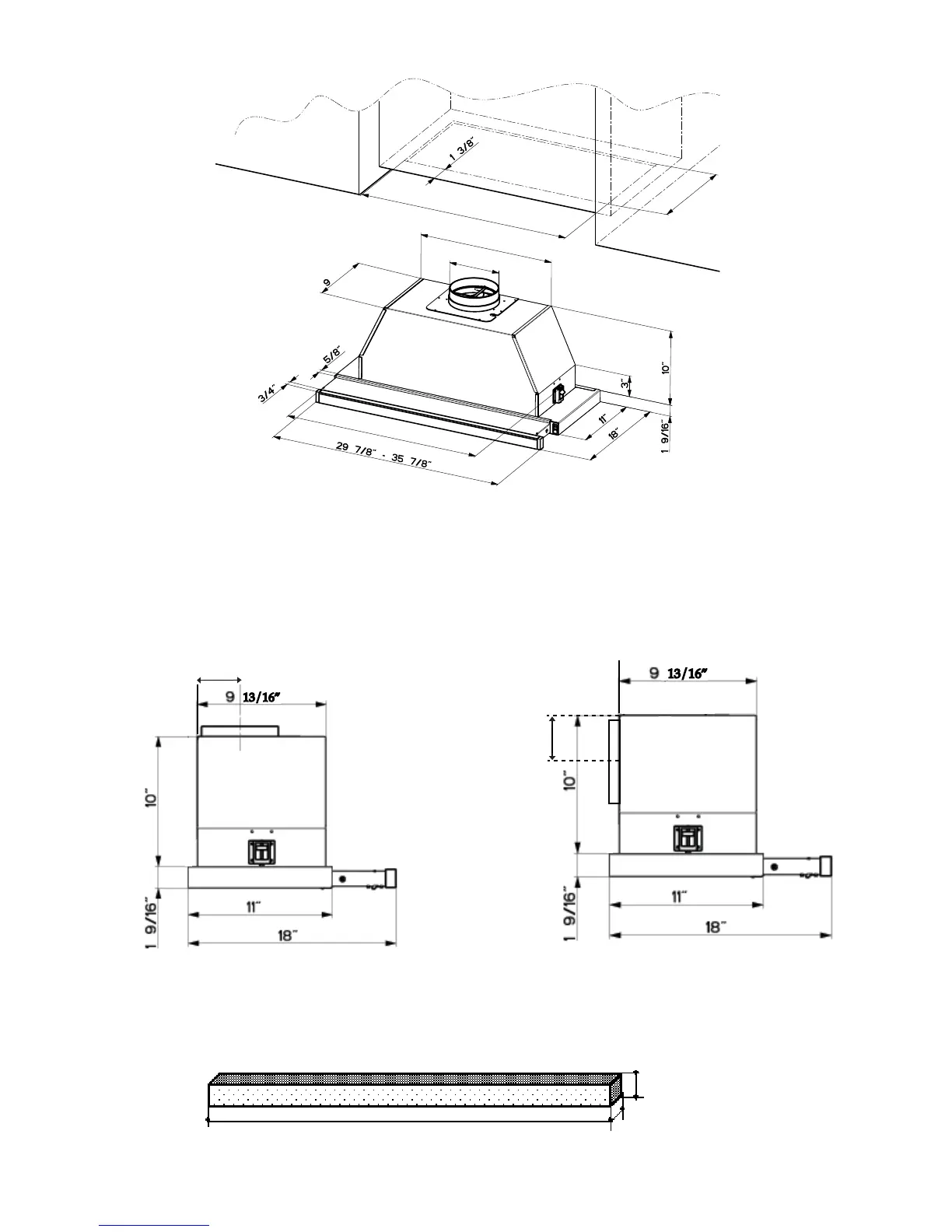

CRISTAL HC DIMENSIONS
FRONT TRIM OPTIONS
The Cristal HC comes with a stainless steel front strip installed. Optional black and white kits are available for purchase.
For a custom front strip, a local cabinet shop can make a strip to match your cabinets.
CUSTOM FRONT TRIM DIMENSIONS
1 15/32"
25 1/2” - 31 1/2”
10”
25 1/2” - 31 1/2”
13/16”
17 1/2” - 23 1/2”
5 7/8”
Pre-Planning Your Installation -
Important: The recommended height to install this hood
off the cooktop is a minimum of 24" and a maximum of 30” for maximum effectiveness. Also
consult the cooktop manufacturer’s recommendation. NOTE: If direct rear venting, use the side
dimensional diagram below on the right. For top venting (comes standard in this position),
use the left dimensional diagram. Refer to page 5 for directions for direct rear venting.
3 15/16”
CRISTAL HC SIDE DIMENSIONS
(TOP VENT - STANDARD)
CRISTAL HC SIDE DIMENSIONS
(DIRECT REAR VENT OPTION)
3 15/16”
