5V CRIMP TRIM PARTS
Key Terms (continued)
See following pages for Illustration of Trim Conditions
SIDEWALL
This piece is used when the roofing panel is installed parallel to a vertical wall.
ENDWALL
This piece is used when the upper end of panel butts into a vertical wall.
MONOSLOPE PEAK CAP
This piece is used at the top of a single-sloped roof.
SLOPE TRANSITION
This piece is used where two roofs of different pitch meet; the top section being steeper than the lower section.
GAMBREL CONDITION
This trim is used to transition from a low slope to a steep slope.
CHIMNEY OR SKYLIGHT
FASTENERS
#14 x 1” or #14 x 1½” Mill Point Screw
This fastener is used to attach panels and trim.
This list of flashing can be used in conjunction with the Home Legend drawing to help you understand placement
and proper installation.

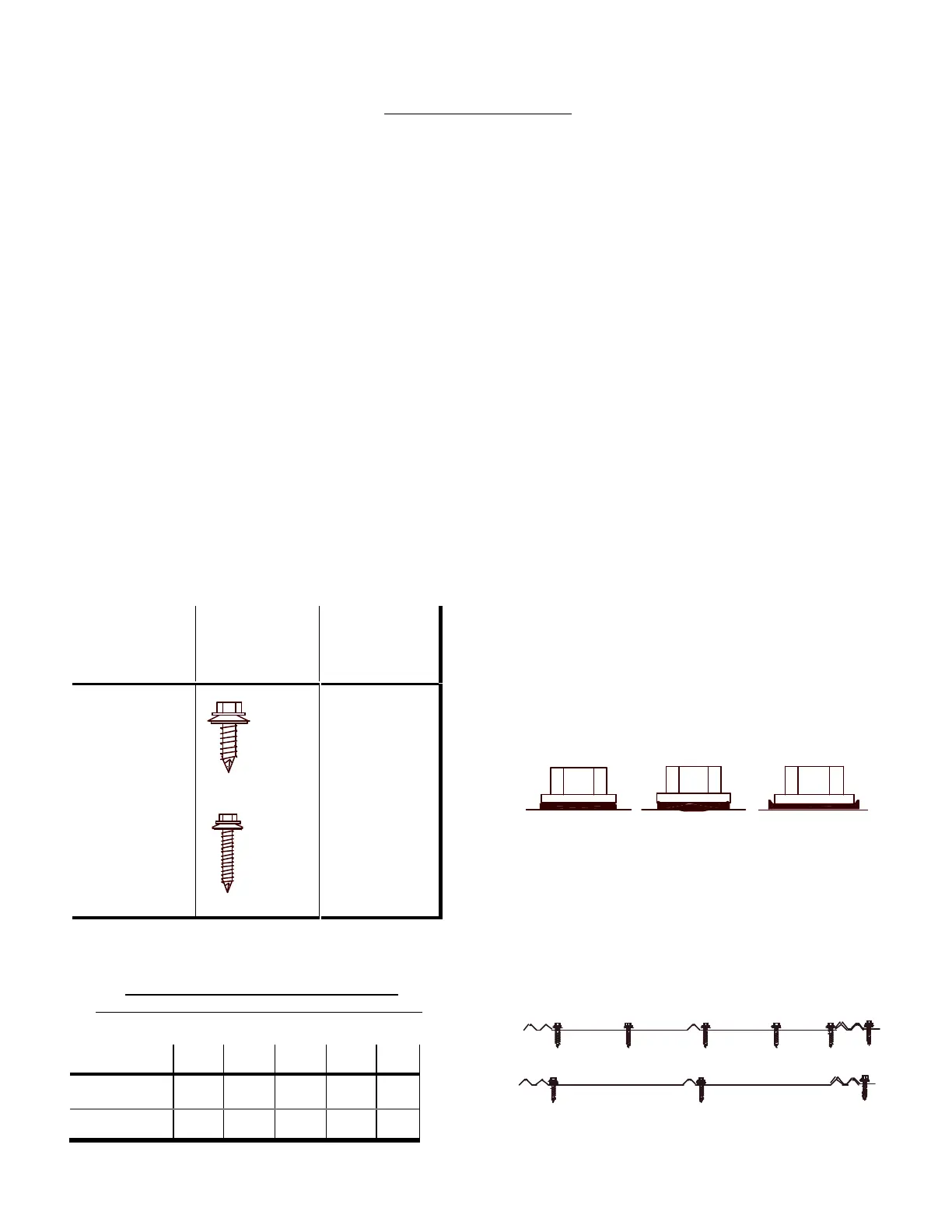

5V CRIMP – FASTENERS
# Fasteners Description Use
Approx.
2 Per foot
Of Panel
Plus Trim
#14 x 1”
Mill Point
Screw
Panels and Trim
Approx.
2 per foot
Of panel
Plus Trim
#14 x 1½”
Mill Point
Screw
Panels and Trim
♦ Note: either 1” or 1½” screws can be used to
fasten panels.
Listed are the fasteners recommended for the proper
installation of the 5V CRIMP panels. Also note the
diagram below for proper installation of gasketed
fasteners.
PROPER INSTALLATION OF GASKETED
FASTENERS
correctly under over
driven driven driven
Key Terms
26 GA. 5V CRIMP SELF HELP KIT
Wind Load Tables – Steel Panels
ALLOWABLE WIND UPLIFT LOAD (PSF)
5V Crimp Fastening Schedule
ROOFING - EAVES, RIDGES, AND ENDLAPS
ROOFING - INTERMEDIATE SUPPORTS
SIDING - ALL SUPPORTS
Decking
12” 15” 18” 21” 24”
7
/
16
OSB
56.0 44.8 37.33
32.0 28.0
½”Plywood 92.88
74.3 61.9 53.0 46.4
