L
W
SLOPE
Notes:
1. Whenever possible, position the skylight curb so
the ribs of the roof panels do not interfere with
the flashing.
2. Cut the metal panels as close to the left, right and
downhill sides of the curb as possible. Cut the
uphill side 6” up from the curb as indicated
above.
6"
2 1/16"
Notes:
1. The skylight flashing will be 4” wider than the
width of the curb (2” on each side).
2. Cut a 1/8” slot in the two uphill corners of the
5V Crimp panels, slightly wider than 2” so the
uphill flashing can slide through the two slots.

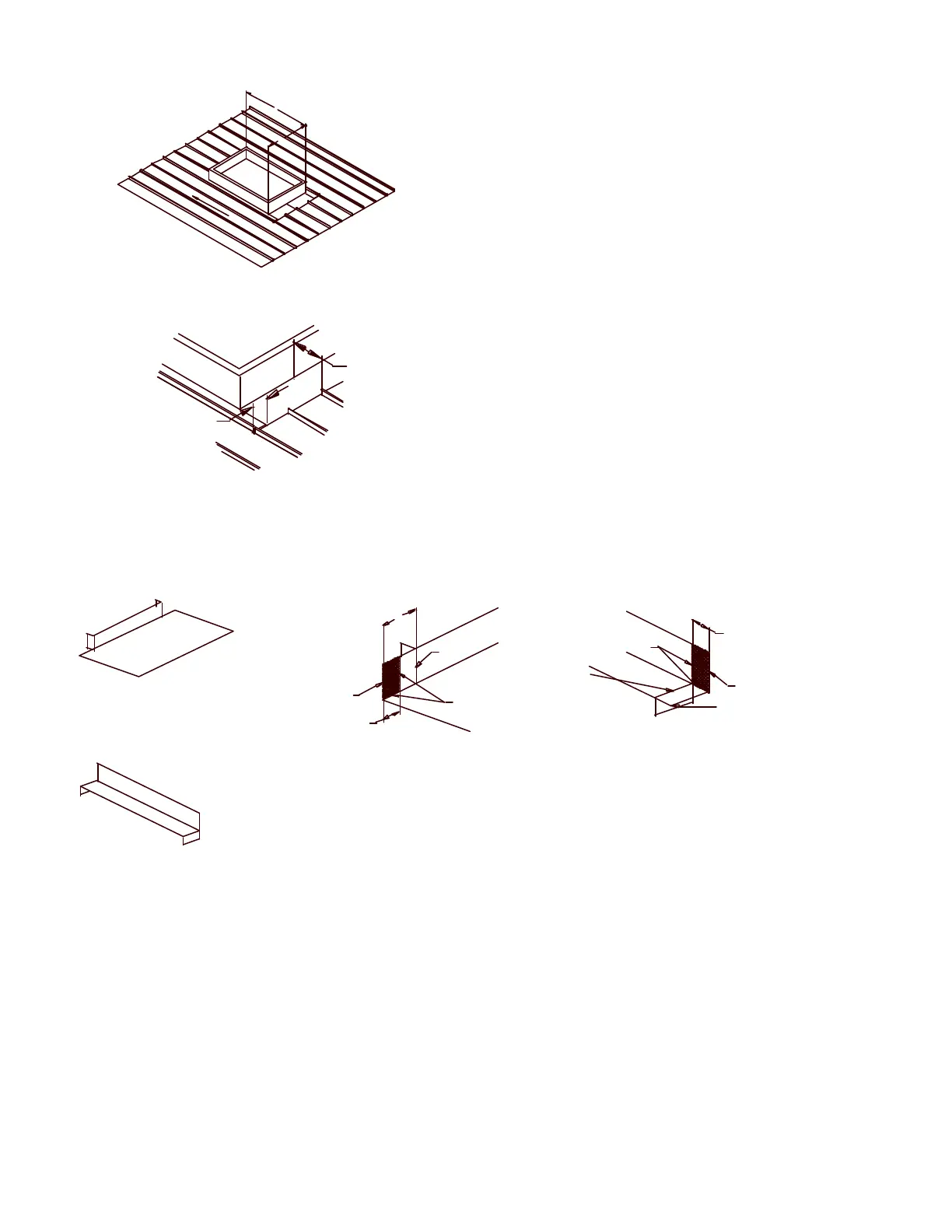

SKYLIGHT FLASHING PREPARATION
Detail “A”
2"
1"
REMOVE THIS
MATERIAL
FOLD HERE
90 DEGREE
CUT HERE
Detail “C”
1"
CUT HERE
REMOVE THIS MATERIAL
FOLD HERE
90 DEGREE
REMOVE HEM
TO FOLD LINE
Notes:
1. Trim both ends of the uphill and downhill sides
of the skylight flashing as indicated.
2. Slide the uphill flashing into the slots of the 5V
Crimp roofing and apply liberal amount of
sealant.
3. Assemble the skylight as indicated.
4. Trim and assemble chimney flashing similarly.
