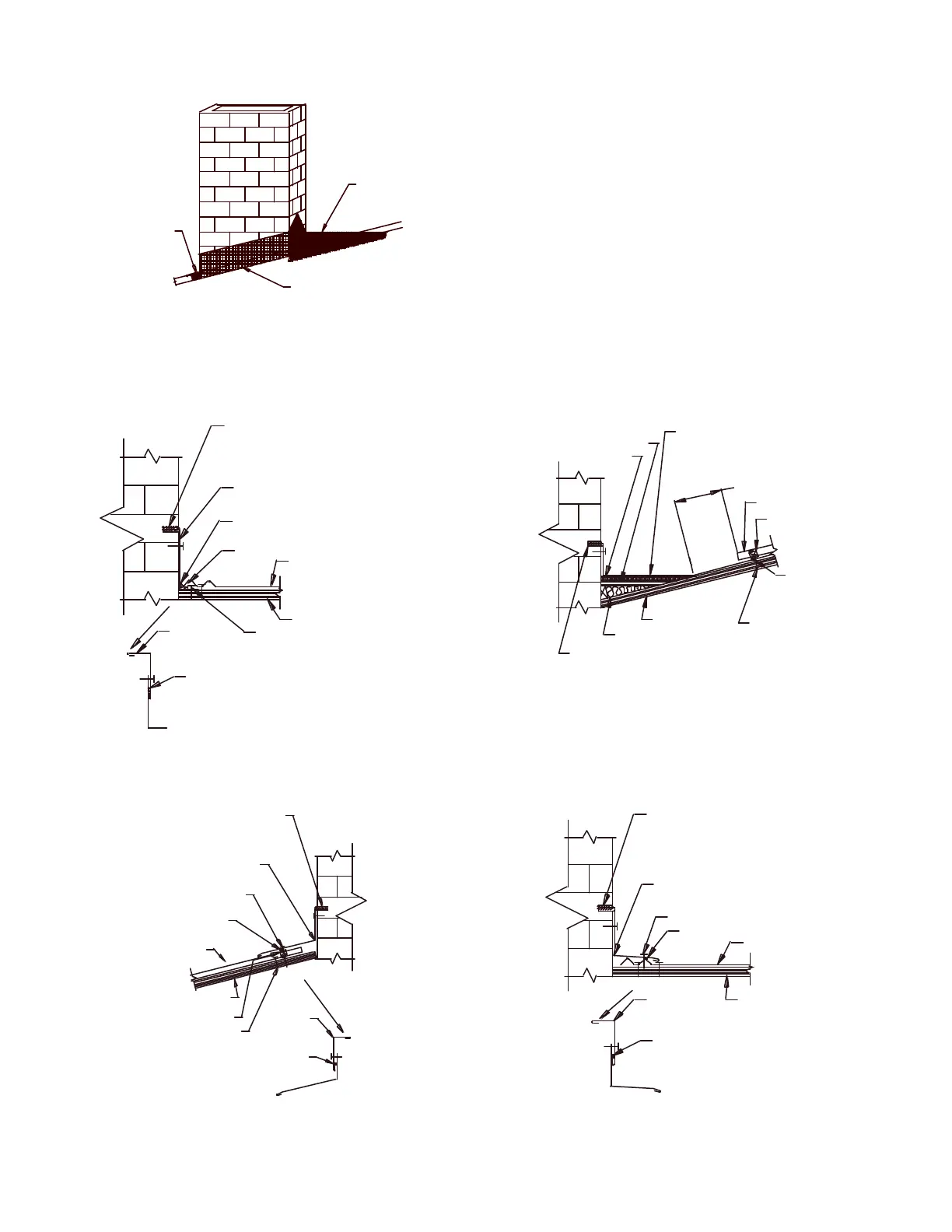

Fabral 5V Crimp - Chimney Flashing

CRICKET FIELD
MADE FROM
FLAT SHEET
ENDWALL FLASH
SIDEWALL FLASH
Notes:
1. Procedures for the installation of Chimney
Flashings are similar to the Skylights.
2. The saw-cut reglet shown provides the best
weather tight installation for chimneys. Fill the
reglet with one part polyurethane sealant, insert
trim and fasten as necessary with masonry
anchors. Heads of masonary anchors can be
color-matched with touch-up paint after
installation.
3. Flashings may be field-formed from 27
9
/
16
” x
10’ flat sheets.
CHIMNEY FLASHING
(SIDE)
ROOF PANEL
FASTENER
SEALANT TAPE
BETWEEN FLASH
AND ROOF PANEL
ALTERNATE FLASHING
AL FLASHING
SEALANT
ROOF SHEATING
CONTINUOUS SILICONE
CAULK @ PERIMETER
SAW CUT REGLET
1/2" - 1" DEEP
BLOW OUT DUST & FILL WITH SIKAFLEX
SEALANT SET FLASH & FASTEN WITH
COMPATIBLE MASONRY ANCHOR
FLASHING -REVERSE
AL FLASHING
CHIMNEY FLASHING
(UPHILL SIDE)
ROOF SHEATING
#14x1" OR1 1/2"
SCREW
FASTENER
6" O.C. MAX
BATT INSULATION
SAW CUT REGLET
1/2" - 1" DEEP
BLOW OUT DUST & FILL WITH SIKAFLEX
SEALANT SET FLASH & FASTEN WITH
COMPATIBLE MASONRY ANCHOR
ROOF PANEL
INSIDE CLOSURE
SEALANT TAPE
TOP & BOTTOM
OF CLOSURE
5" MIN
1/2" PLYWOOD
1/2" RIGID INSULATION
CUSTOM DIVERTER FLASH
CONTINUE SUCH THAT
THE DIVERTER AND
VALLEY FLASH OVERLAP
CHIMNEY FLASHING
(DOWNHILL SIDE)
SEALANT
AL FLASHING
FASTENER
ALTERNATE FLASHING
OUTSIDE COLSURE
ROOF SHEATHING
ASW-1 FLASHING
FIELD MODIFIED
TO FIT
#14 x 1 1/2" SCREW
FASTENER 9" O.C.
BUTYL TAPE
TOP & BOTTOM
OF CLOSURE
ROOF PANEL
SAW CUT REGLET
1/2" - 1" DEEP
BLOW OUT DUST & FILL WITH SIKAFLEX
SEALANT SET FLASH & FASTEN WITH
COMPATIBLE MASONRY ANCHOR
CHIMNEY
(ALTERNATE SIDE)
SEALANT
ALTERNATE FLASHING
ROOF SHEATING
ROOF PANEL
AL FLASHING
FASTENER
SEALANT
FLASHING ASW-1 - FIELD MODIFY
AS REQUIRED
SAW CUT REGLET
1/2" - 1" DEEP
BLOW OUT DUST & FILL WITH SIKAFLEX
SEALANT SET FLASH & FASTEN WITH
COMPATIBLE MASONRY ANCHOR
