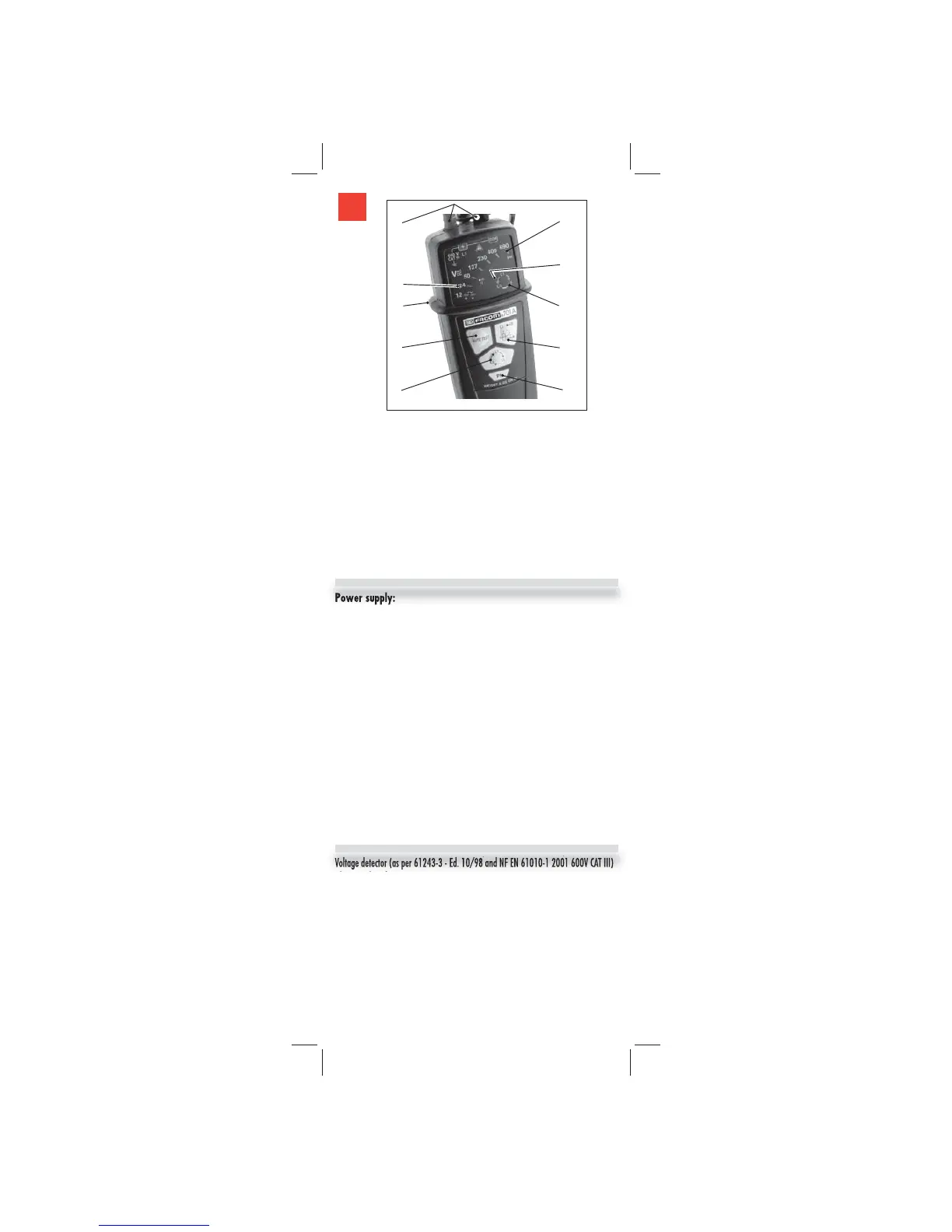

1 - Disconnectable test probes: Ø 2 mm
2 - Guard:all around the instrument, protecting the user to prevent any accidental
contact with an uninsulated conductor
3 - Autotest push button
4 -
Continuity test / Circuit-breaker tripping test pushbutton for 30 mA differential circuit breakers (RCDs)
5 - «Dangerous» voltage LED ramp (red)
6 -
Voltage ramp (low voltage green), LED for continuity (orange) and polarity indication
7 - Phase rotation LED (green): clockwise
8 - Phase rotation LED (green): anti-clockwise
9 - Phase rotation pushbutton
10 - Contact area: Ph/N detection
General characteristics
Power supply:
• One 9V battery
• Battery charge life:
2600 10-second measurements (with 6LR61 9V alkaline battery)
1300 10-second measurements (with 6LR61 9V alkaline battery)
• Battery charge indication: Autotest
Buzzer :
• Short bursts for phase identifi cation
• Continuous for the voltage > 50V test and continuity
Operating duration:
• 690 V AC/DC : unlimited operation
Climatic conditions:
Reference : 23°C ± 3°C
Use : -10°C à + 55°C
- relative humidity: < 96% HR
- altitude: up to 2.000 m
Storage: -10°C to +55°C (without battery
Compliance with international standards
Voltage detector (as per 61243-3 - Ed. 10/98 and NF EN 61010-1 2001 600V CAT III)
Electrical safety
■ Casing as per NF EN 61010-1: 2001
- Pollution level: 2
- Measurement category III for rated voltage 600V.
■ Wires as per NF EN 61010-1-031: 2002
- Pollution level: 2
- Measurement category III for rated voltage 1000V.
Electromagnetic compatibility
■ EN 61326-1/A2 : 2001 class B
Mechanical protection
■ Protection level of the envelope (as per EN 60529/A1: 2000)
EN
1
6
2
3
9
5
8
7
4
10
