Panel Descriptions

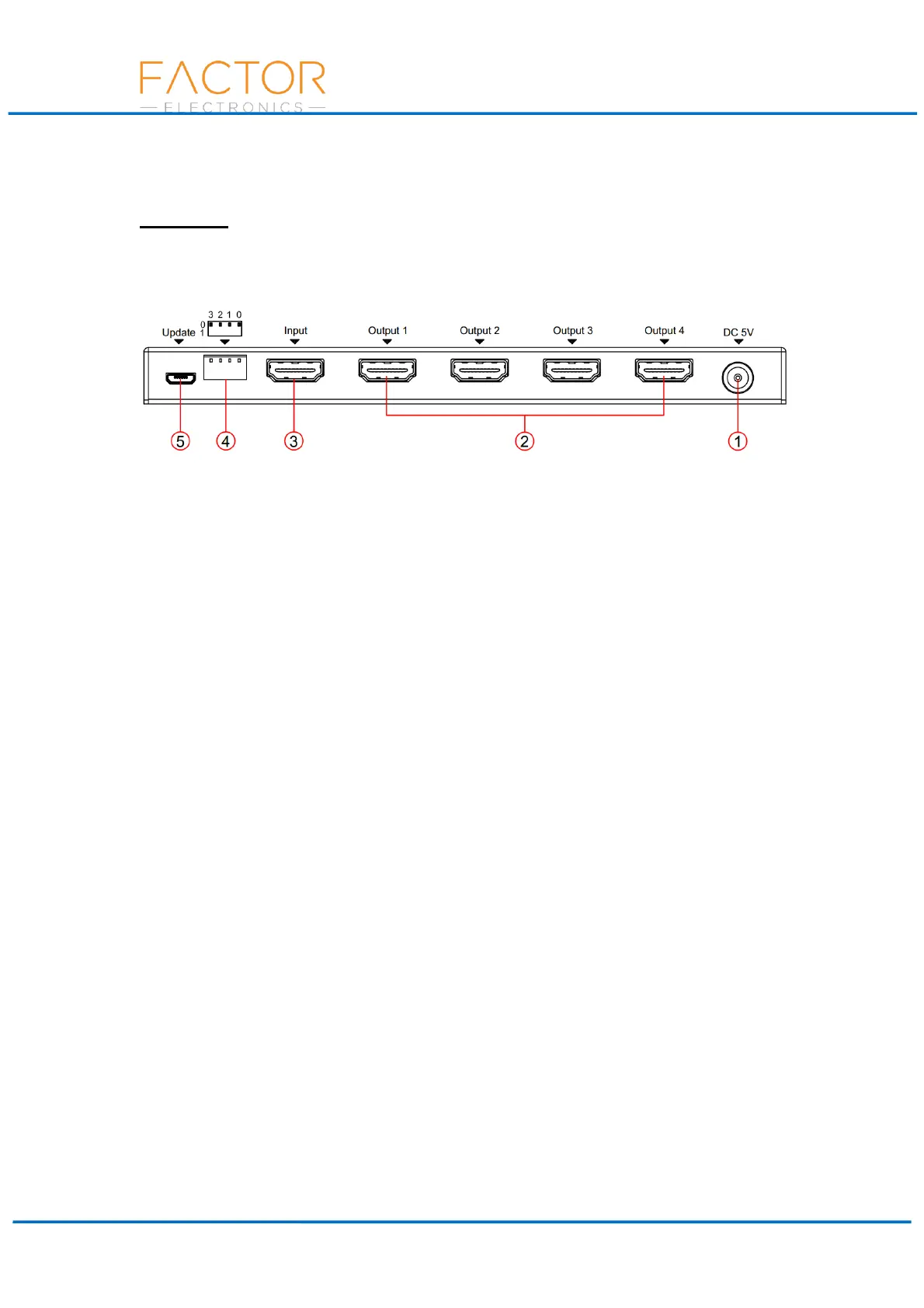

Rear Panel
① DC 5V – Connect to 5V/1A DC adapter.
② HDMI Output 1 to 4 – Connect to sink devices using HDMI cable.
③ HDMI Input – Connect with signal sources, such as DVD, STB, TV box…
④ DIP Switch – EDID Management.
[DIP]=0000: Copy EDID From Output1, i.e., EDID pass through
[DIP]=0001: HDMI 1080p@60Hz, Audio 2CH PCM
[DIP]=0010: HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=0011: HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=0100: HDMI 1080i@60Hz, Audio 2CH PCM
[DIP]=0101: HDMI 1080i@60Hz, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=0110: HDMI 1080i@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=0111: HDMI 1080p@60Hz/3D, Audio 2CH PCM
[DIP]=1000: HDMI 1080p@60Hz/3D, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=1001: HDMI 1080p@60Hz/3D, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=1010: HDMI 4K2K, Audio 2CH PCM
[DIP]=1011: HDMI 4K2K, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=1100: HDMI 4K2K, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=1101: DVI 1280x1024@60Hz, Audio None
[DIP]=1110: DVI 1920x1080@60Hz, Audio None
[DIP]=1111: DVI 1920x1200@60Hz, Audio None
⑤ Mini USB Port – Used for firmware updates.
