HD-1x4-4K User Manual
Factor Electronics

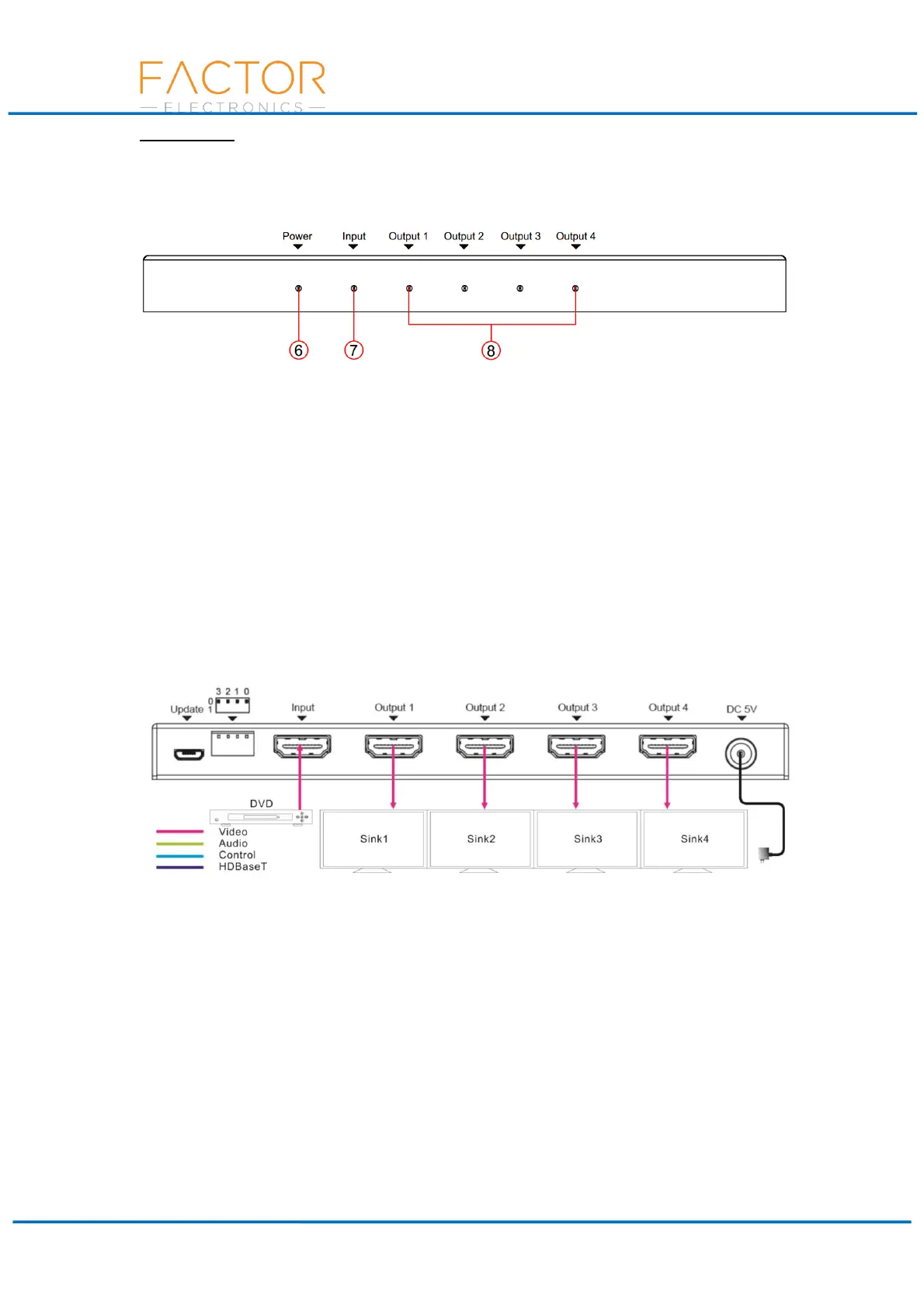

Front Panel
⑥ Power LED – Lit if the power supply is properly connected.
⑦ Input LED - Indicates the status of the input for the unit.
⑧ Output LEDs - Indicates the status of the outputs for the unit.
Application Diagram
