46

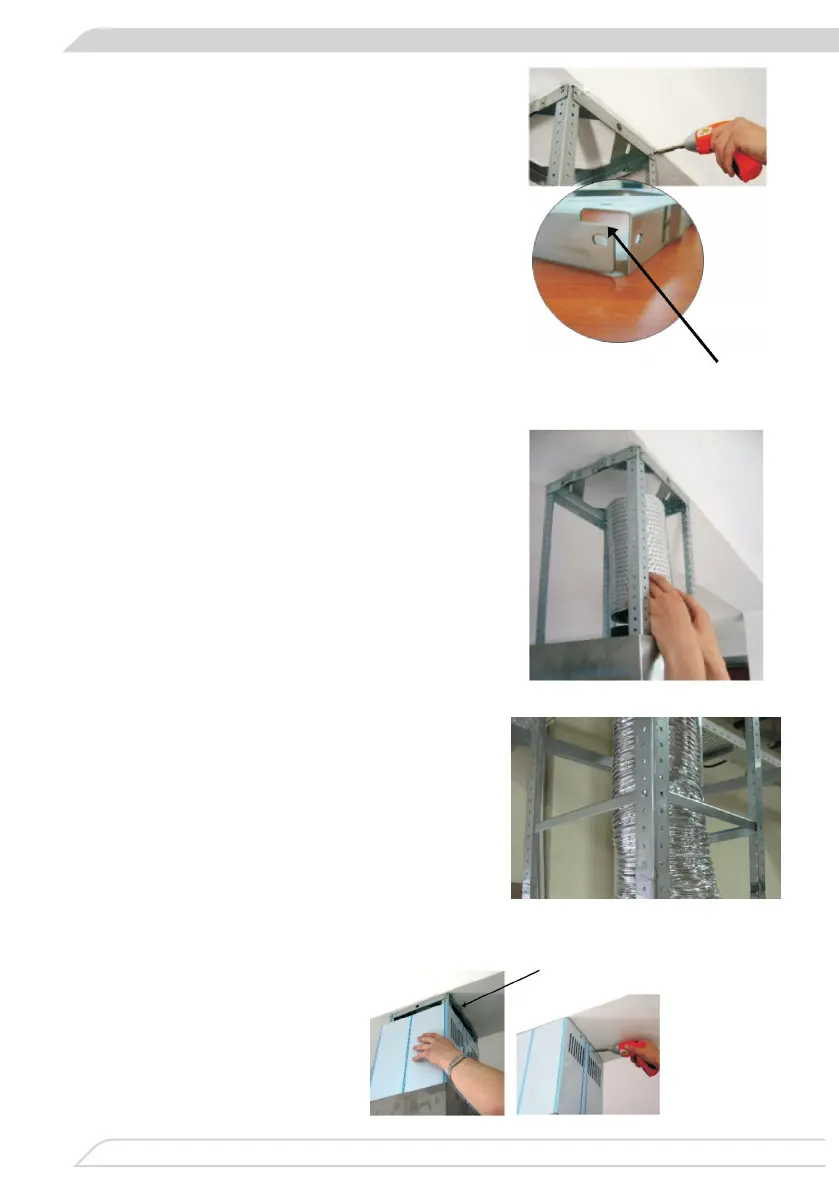

D) Placing Motor Cabin to Hanging Bar
Place xed hanging sticks on hanging bar through
the channels. Fix parts together via 3,5x9,5
screws Picture 6
Installation bracket channels
on ceiling mounting plate
E) Installing Aluminium Flexible Pipe Connect alu-
minium exible pipe to outlets on the product and
kitchen wall. Ensure connection will not lose while
your product is operated on maximum airow
level (Picture 7).
F) Metal frames installation
Using screws from installation kit, mount frames
to hanging sticks (Fig. 9).
G) Fixing Internal Chim-
ney
Pull internal chimney
up, align holes and x
by 3,5x9,5 nickel coat-
ed screws as shown in
Picture 10.
Assembling bracket hole on the Ceiling
Connection Sheet
