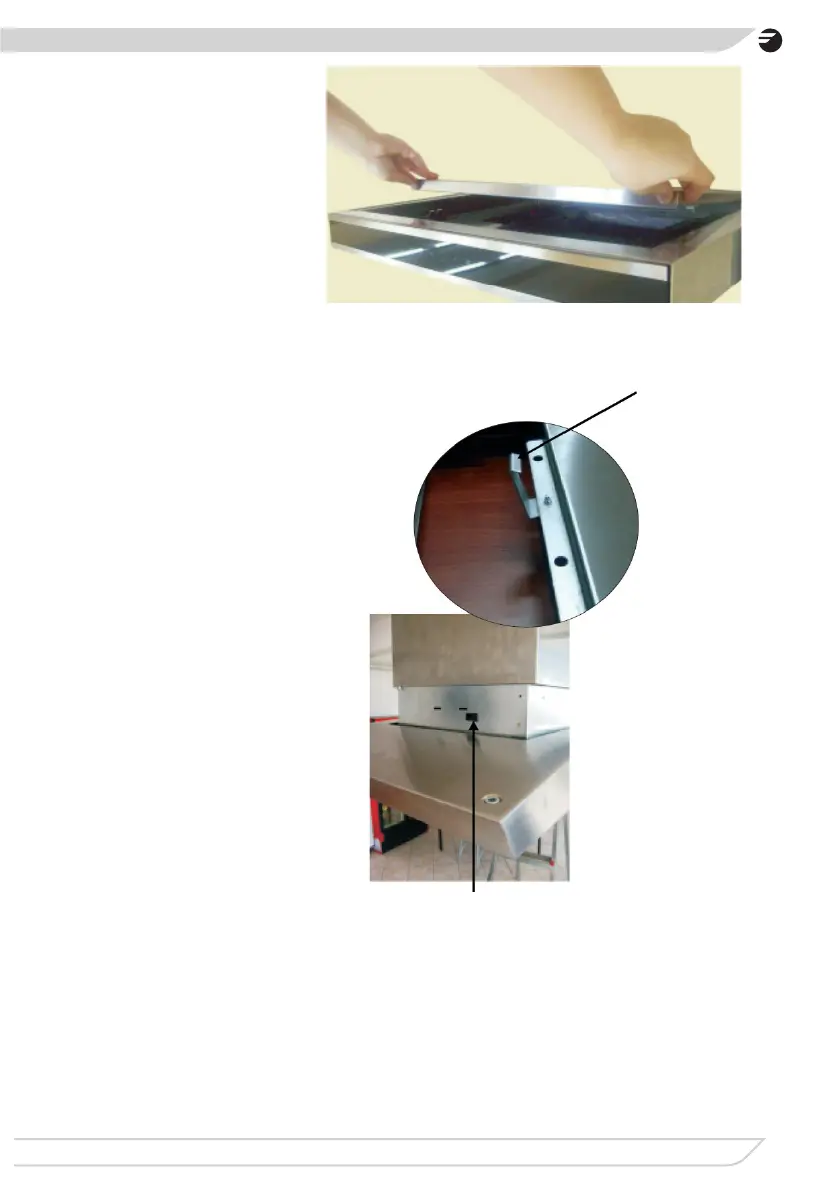

H) Removing split ex-
traction plate
To remove split extrac-
tion plate, pull it down
holding left and right
upper points - Picture.
11.
I) Fixing Motor Cabin on
Product Body
Place hanging hooks
on product body onto
channels on motor
cabin. Fix them together
with 3,5x9,5 screws
(Picture 12a-12b)
Hanging Hook
(Fig. 12a)
Hanging hook channel on motor cabin (Fig.
12b)
