48

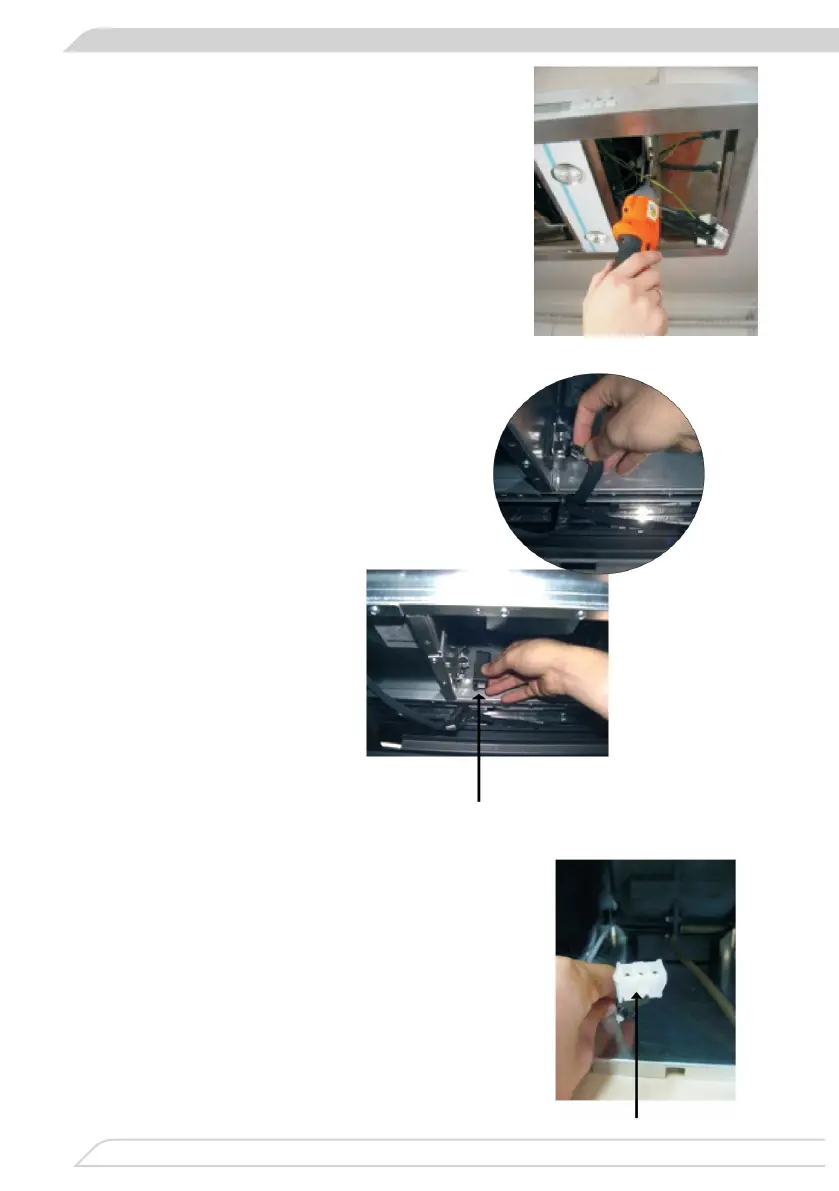

J) Fixing Motor Cabin on Product Body (2)
Using 3,5 x 9,5mm bolts mount both elements
(Fix. 13).
K) Making Connections
Connect 220V power
supply socket with
corresponding motor
socket. Place aluminum
cassette lters when
connections are done.
(Picture 14)
Puszka ochronna
L) Making Connections (2)
Connect white plug (supply) into the correct sock-
et. Fig 15
