1.2 Circuit concept
The BOLERO-LT architecture includes the following major functional
components ( see figure 2 ):
 ARCHITECTURE INTEGRATES:
➢ High-performance Quad-Band GSM/GPRS core (operating at
26MHz),
➢ 20 parallel channel low-power GPS core (operating at L1 1575.42
MHz and C/A code 1,023 MHz chip rate),
➢ ARM7TDMI Processor (at speed 25MHz) that controls all functions of
the system,
➢ Internal SIM card reader ( 1.8V and 3V ),
➢ Internal GSM antenna,
➢ Internal GPS antenna,
 Options to BOLERO-LT
➢ 3D motion sensor
➢ Rechargeable Li-Polymer battery (see Ordering Guide),
➢ Audio for voice call
 Physical interfaces:
➢ Power supply line,
➢ 1x Multi-line I/O,
➢ 1 x Ignition;
➢ RS232 port
➢ SIM Card reader (Type: Molex-91228-0002 small SIM Card)
➢ LED status indicators.

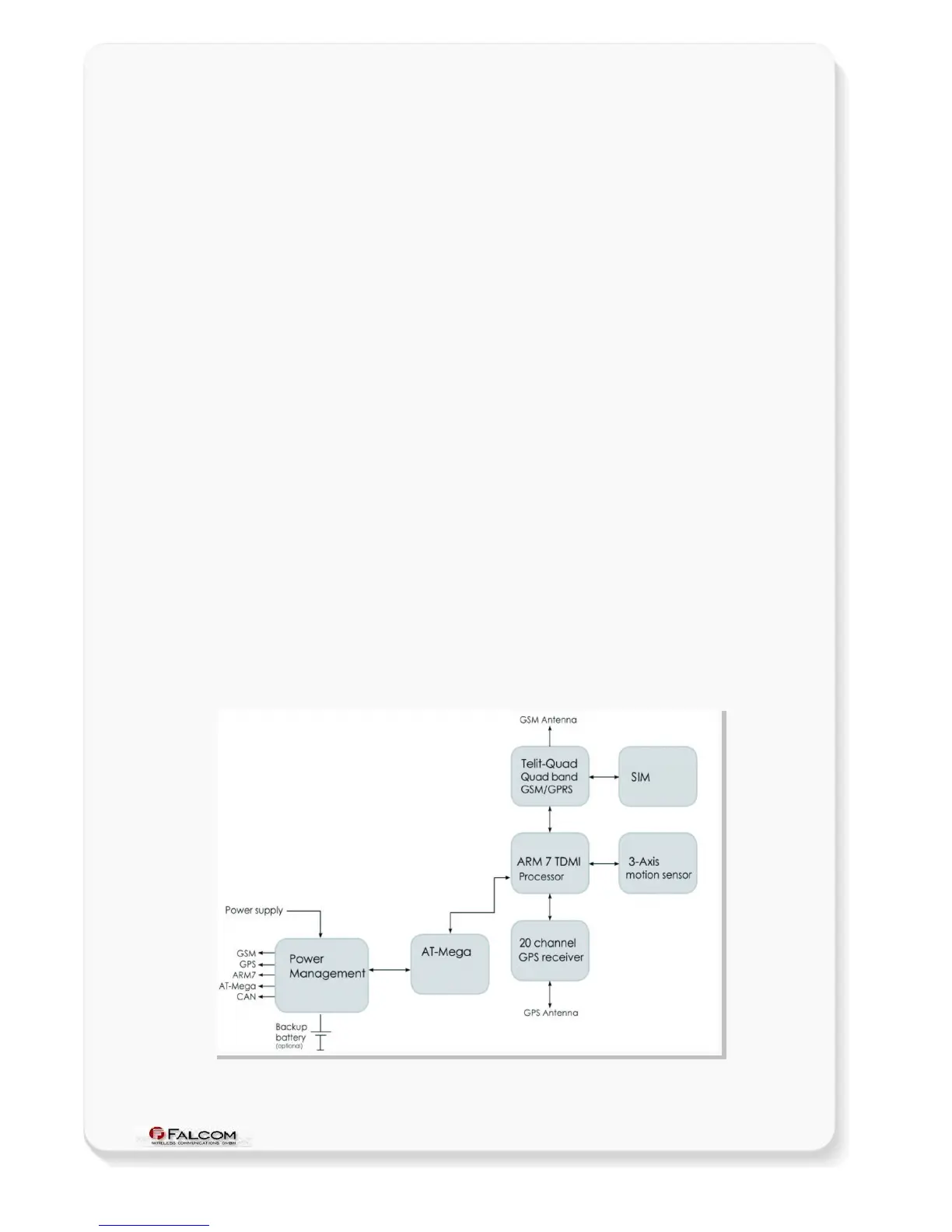

Figure 2: Architecture of the BOLERO-LT terminal
