REVOSHIFT

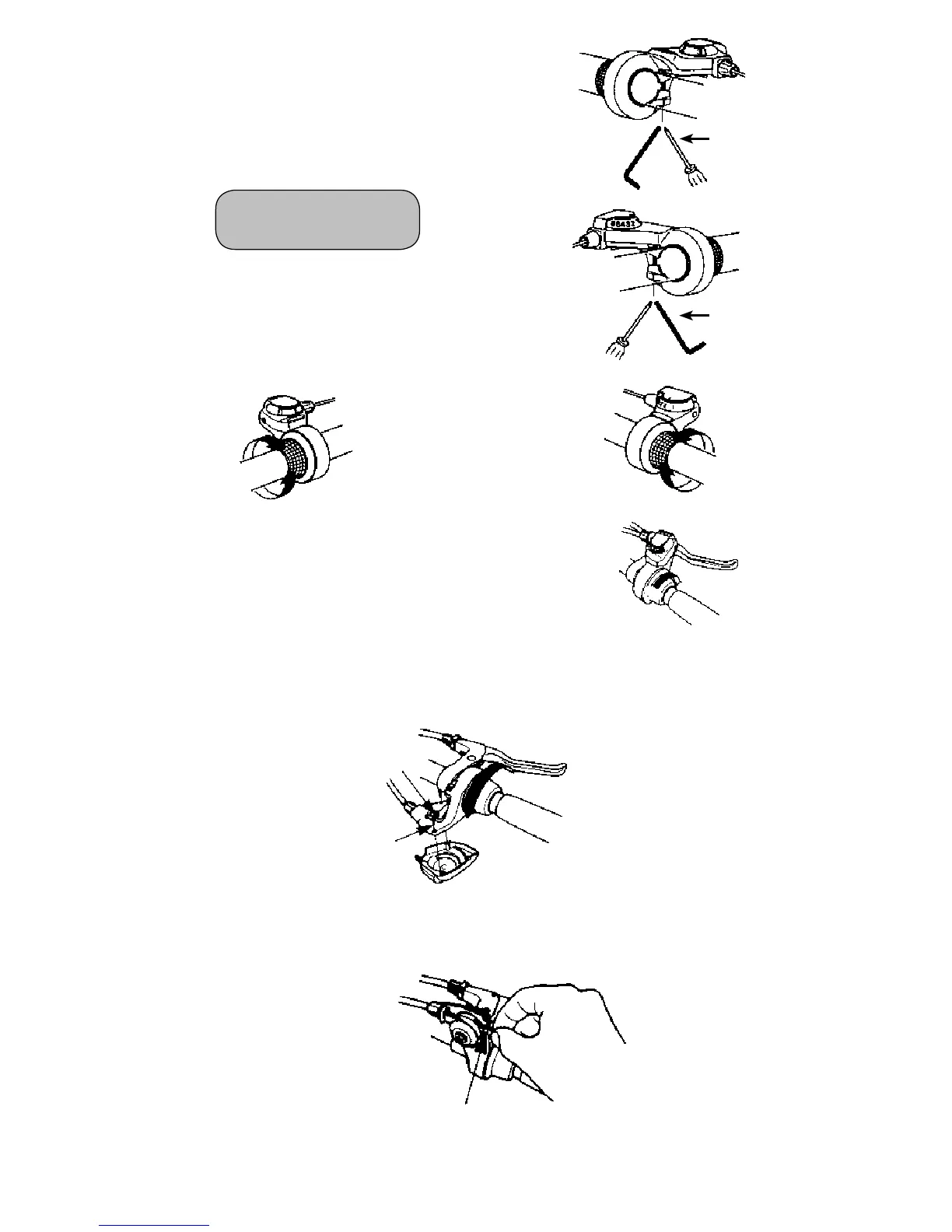

MOUNTING THE SHIFTING LEVER
Install the brake lever in a position where it will
not obstruct brake operation. Do not use in a
combination which causes brake operation to
be obstructed.
Tightening torque:
2 Nm (1.5lb -ft)
Suitable
Allen Key
Suitable
Allen Key
GEAR SHIFTING OPERATION
REPLACING THE INNER CABLE
1. Turn the lever to the initial position (low position
for the front lever; top position for the rear lever).
2. Loosen the lever fixing bolt, and then rotate the lever until the cover
fixing bolt can be turned (Fig. 1)
After this, remove the cover fixing bolt and then remove the cover (Fig 2)
3. Pull out the inner cable and replace it with the new inner cable (Fig. 3)
4. After installing the cover, rotate the lever to return it to its original position, then tighten the
lever fixing bolt.
Lever fixing bolt
Cover fixing bolt
FIG. 1
FIG. 2
Inner Cable
FIG. 3
Pedalling
becomes
heavier
Pedalling becomes
lighter
Pedalling
becomes
lighter
Pedalling
becomes
heavier
