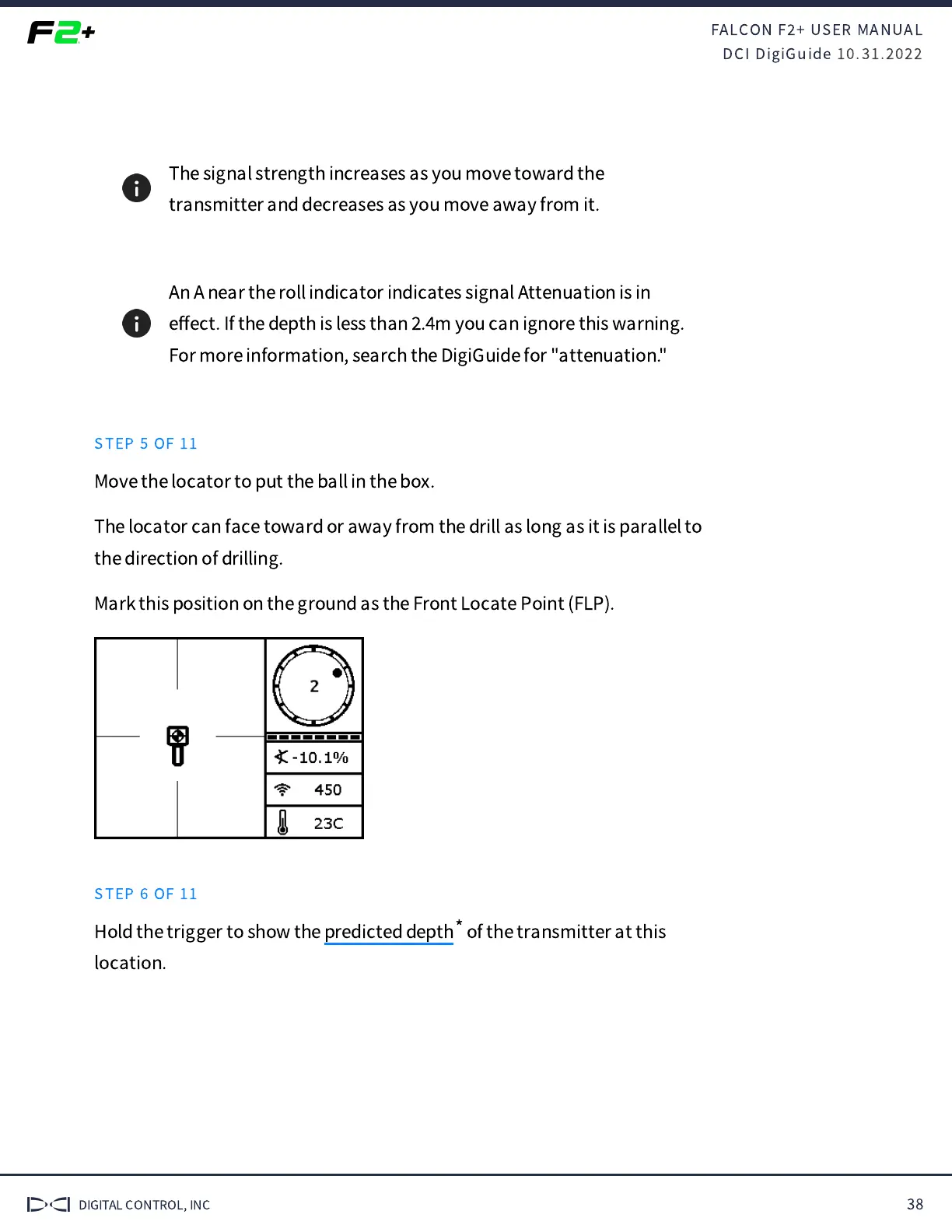

FALCON F
+ USER MANUAL
DCI DigiGuide 10.31.2022
DIGITAL CONTROL, INC 38
The signal strength increases as you move toward the
transmitter and decreases as you move away from it.
An A near the roll indicator indicates signal Attenuation is in
e
ff
ect. If the depth is less than
.
m you can ignore this warning.
For more information, search the DigiGuide for "attenuation."
STEP 5 OF 11
Move the locator to put the ball in the box.
The locator can face toward or away from the drill as long as it is parallel to
the direction of drilling.
Mark this position on the ground as the Front Locate Point (FLP).
STEP 6 OF 11
Hold the trigger to show the of the transmitter at this
location.
predicted depth
*
