Falcon MEL 24 Series User Manual

32

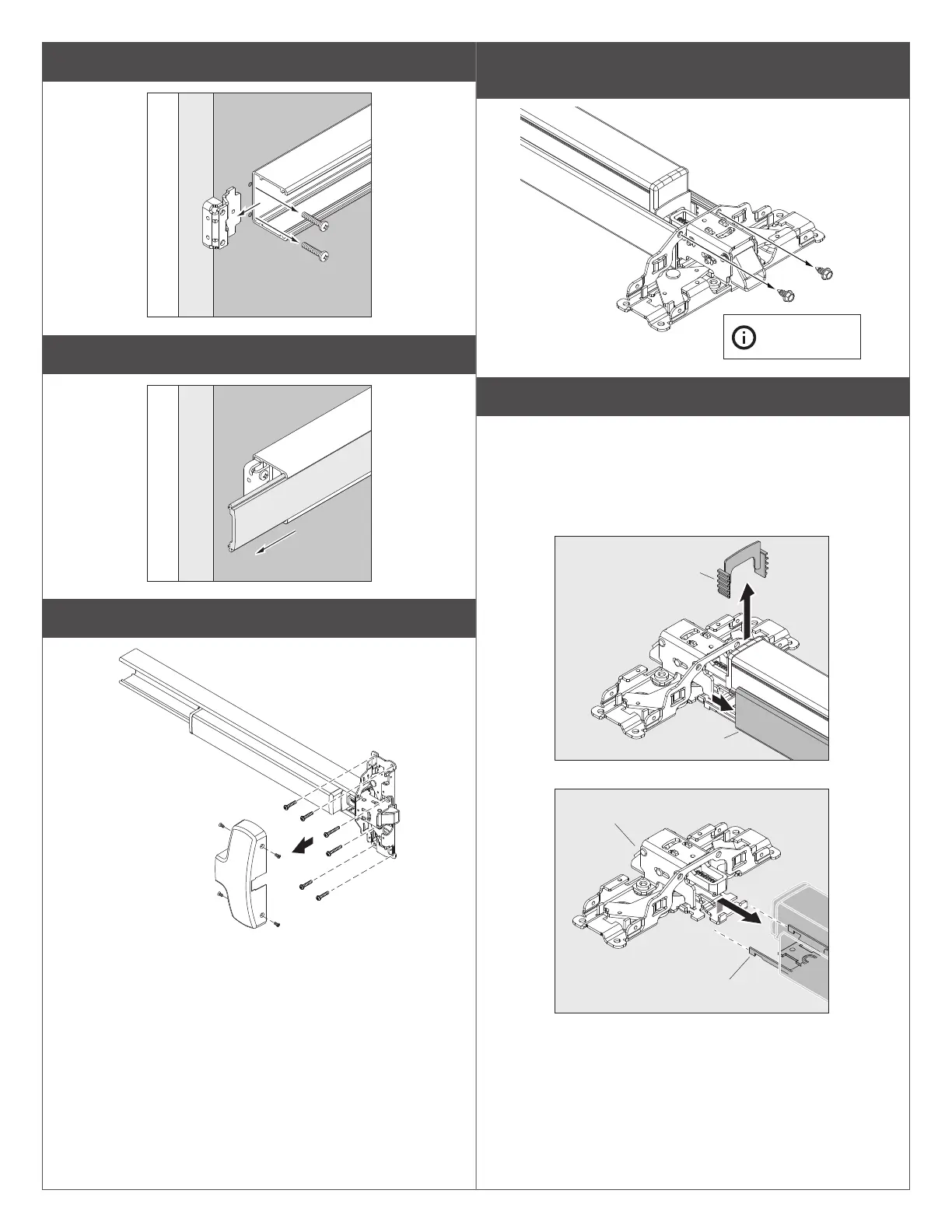

2 Remove device end mounting bracket from door
3 Slide back, remove and discard old cover plate
4 Remove center case cover and device from door
a
b
5 With device laying on a table or bench, remove the 2
screws that connect mechanism case to center case
Use long shank
screwdriver.
6 Unhook baseplate from center case
a. Slide back mechanism case about 2” to access hooking
parts.
b. Push bar guides will come loose and will need to be
reinstalled later.
c. Unhook baseplate from center case.
b
a
mechanism
case
pushbar
guide
c
center
case
baseplate
