FALMEC Vega User Manual

12

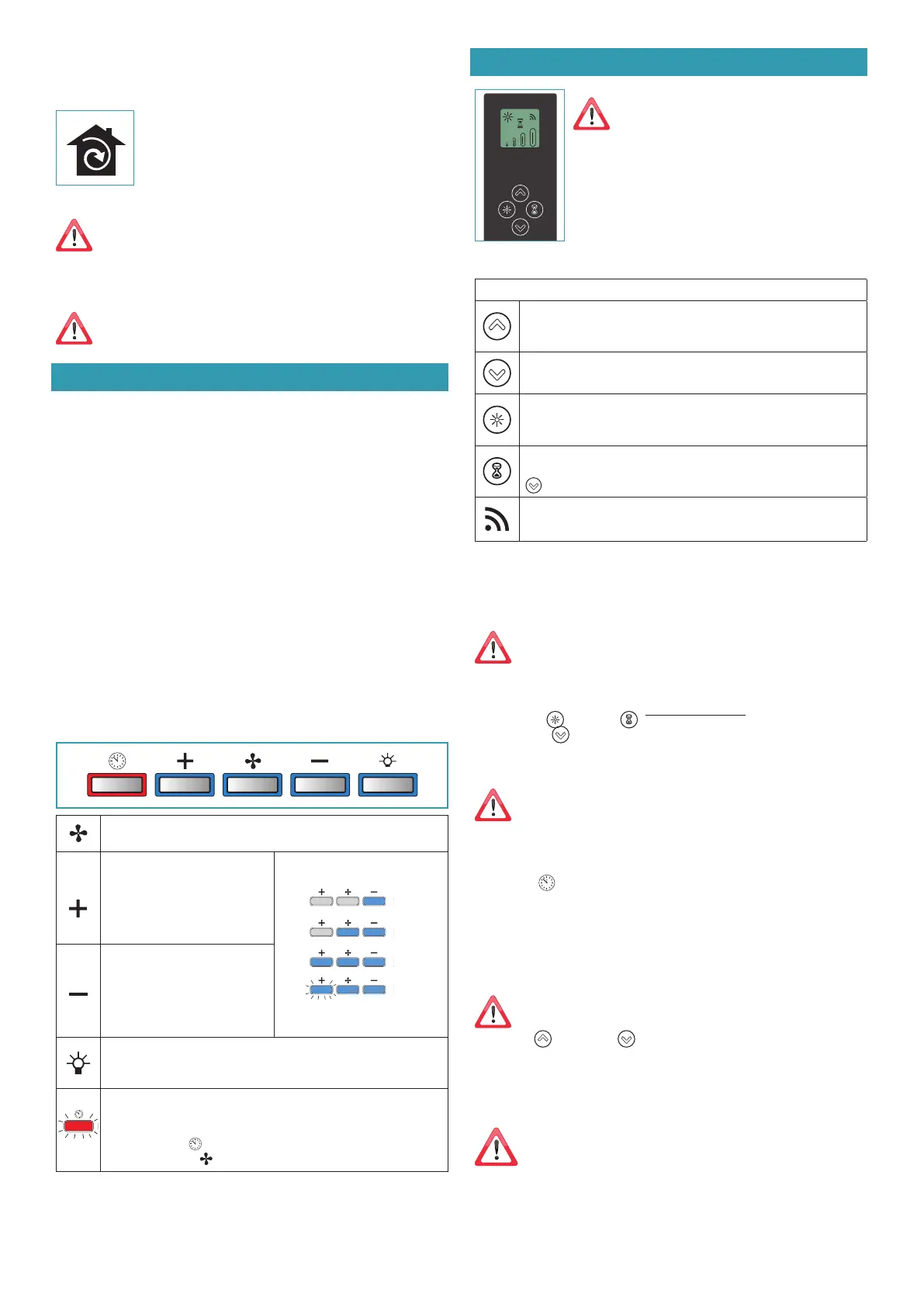

USING THE RADIO CONTROL
WARNINGS!:
Place the hood away from sources of electro-
magnetic waves (e.g. microwave ovens), which
could interfere with the radio control and with the hood
electronics. The maximum operating distance is 5 me-
tres, that may vary according to the presence of electro-
magnetic interferences.
Radio control operated at 433.92MHz.
The radio control consists of two parts:
- the receiver built into the hood;
- the transmitter shown here in the gure.
DESCRIPTION OF TRANSMITTING COMMANDS
UP
Motor switch-on and speed increase from 1 to 4. Speed 4 is only
active for a few minutes.
DOWN
Speed decrease and motor switch-off.
Light ON-OFF
Short impulse: turn light on and off
Long impulse: change light tone from 2700K to 5600K
TIMER ON: The motor automatically switches off after 15 min.
The function is automatically disabled if the motor is switched off (
key)
Command transmission active
RADIO CONTROL CODE CHANGE
With only one radio control, go directly to point 2.
With several radio controls in the same room, a new code can be created by
following the procedure below.
Disconnect the power to the hood before starting the procedure.
1  CREATE A NEW CODE
The procedure is to be carried out on the radio control.
• Press LIGHT and TIMER simultaneously until the display starts flashing.
• Press DOWN on the radio control: saving is confirmed by three brief flash-
es of the display. The new code cancels and replaces the previous default
code.
Reconnect the hood to the electrical power supply, making sure
that the lights and motor are o.
2A  ASSOCIATING THE RADIO CONTROL WITH THE HOOD
USING THE ELECTRONIC PUSHBUTTON PANEL
press TIMER ( ) on the hood pushbutton panel for 2 seconds:
the red LED lights up.
press any key on the radio control within 10 seconds. .
RESTORING DEFAULT CODE
the procedure is to be carried out if the hood is disposed of, sold or transferred.
Disconnect the power to the hood before starting the procedure.
• Press UP and DOWN simultaneously on the radio control for more
than 5 seconds: reset is confirmed by three brief flashes of the display.
• Reconnect the hood to the electrical power supply.
• Proceed with associating the hood and the radio control, as described in point
2. Maintenance
Before cleaning or carrying out maintenance operations, discon-
nect the equipment by removing the plug or switching o the
main switch. Do not use detergents containing abrasive, acidic
or corrosive substances or abrasive cloths.
Regular maintenance guarantees proper operation and performance over time.
Special attention is to be paid to the metal anti-grease lters: frequent clean-
ing of the filters and their supports ensures that no flammable grease is accu-
mulated.
FUMES DISCHARGE
HOOD WITH INTERNAL RECIRCULATION FILTERING
In this model, the air passes through the zeolite-carbon filters
to be purified and recycled in the environment.
Ensure that the active carbon filters are assembled into the
hood, if not, install them as indicated in the assembly instruc-
tions.
In this version the check valve must not be assembled: remove it if it is
on the air outlet fitting of the motor.
ASSEMBLY INSTRUCTIONS
only intended for qualied personnel
The hood can be installed in various congurations.
The generic assembly steps apply to all installations; for each case,
follow the specic steps provided for the required installation.
OPERATION
WHEN TO TURN ON THE HOOD?
Switch on the hood at least one minute before starting to cook to direct fumes
and vapours towards the suction surface.
After cooking, leave the hood operating until complete extraction of all vapours
and odours. By means of the Timer function, it is possible to set auto switch-off
function which will allow the hood to turn off automatically after 15 minutes of
operation.
WHICH SPEED IS TO BE SELECTED?
1st speed: maintains the circulation of clean air with low electricity consump-
tion.
2nd speed: normal conditions of use.
3rd speed: presence of strong odours and vapours.
4th speed: rapid disposal of odours and vapours.
WHEN SHOULD THE FILTERS BE WASHED OR REPLACED?
The metal filters must be cleaned every 30 hours of operation.
The zeolite-carbon filters must be reactivated every 18 months and replaced
every 3 years.
For further details see the “MAINTENANCE” chap.
ELECTRONIC PUSHBUTTON PANEL
Motor ON/OFF
Upon start-up, the speed is that stored at the previous operation.
Increase speed from 1 to 4
Speed 4 is only active for a few
minutes, then speed 3 activates.
The speeds are indicated by the
LEDs on the keys:
Speed 1
Speed 2
Speed 3
Speed 4
("+" LED flashing)
Reduce speed from 4 to 1
Light on/o
Short impulse: turn light on and off
Long impulse: change light tone from 2700K to 5600K
TIMER (red LED flashing)
Auto switch-off after 15 min.
The function deactivates (red LED off) if:
- The TIMER key ( ) is pressed again.
- The ON/OFF key ( ) is pressed.

FALMEC Vega Specifications

General

Type	Ceiling built-in
Product color	Black
Built-in display	-
Housing material	Stainless steel, Tempered glass
Noise level	67 dB
Intensive speed	Yes
Number of speeds	4
Type of extraction	Ducted
Noise level (low speed)	48 dB
Maximum extraction power	600 m³/h
Noise level (high speed)	61 dB
Noise level (medium speed)	54 dB
Minimum distance from electric hob	1500 mm
Grease filter type	Metal/Charcoal
Motor power	130 W
Connected load	230 W
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	- kWh
Bulb type	LED
Bulb power	50 W
Package depth	300 mm
Package width	1330 mm
Package height	725 mm
Package weight	50200 g

Weight and Dimensions

Depth	590 mm
Width	1163 mm
Weight	45000 g
Height (max)	205 mm
