LIGHT KIT INSTALLATION

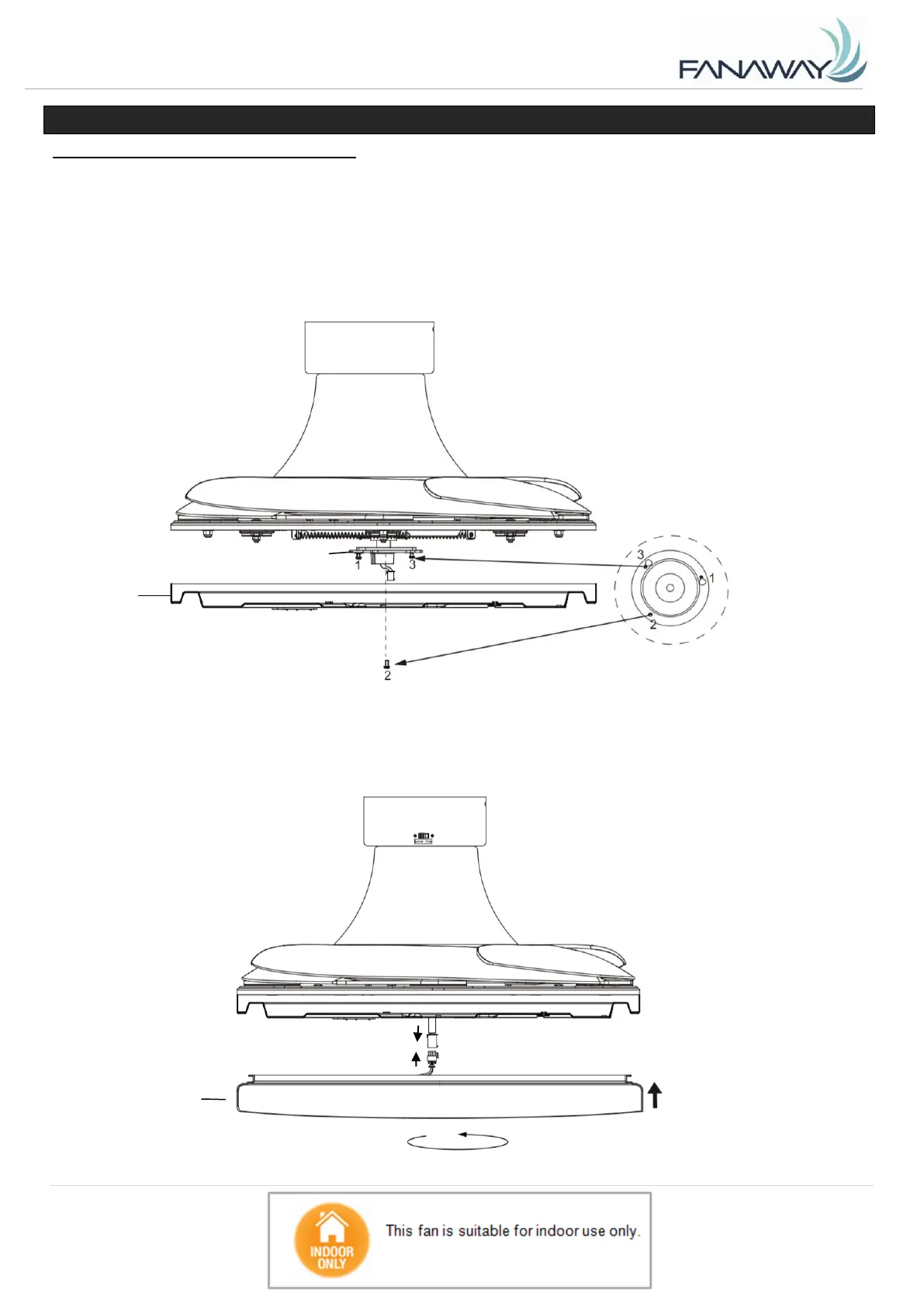

LIGHT KIT INSTALLATION (Fig. 6 & 7)
1. Loosen the screw (2) from the fan bracket. Align the two slot screws (1 and 3) with the keyhole slots (1
and 3) of the light kit plate . (Fig. 6)
2. Turn the light kit plate counterclockwise until the slot screws(1 and 3) are firmly at the end of the slots (1
and 3).
3. Secure screw (2) to the light kit plate. Tighten all three screws. Do not over-tighten.
4. Connect the quick connector to the light kit assembly with LED and shade . (Fig. 7)
5. Finally install the light kit assembly with LED and Shade to the laight kit plate by turning it clockwise (Fig. 7)
Fig. 11
Fig. 7
Fig. 7
Light kit plate
Fig. 6
Fan bracket
Light kit assembly
with LED and shade
