Exhaust Makeup Air System Components
Items Which Must Be Furnished By Others:
a. Insulation
b. Wiring
c. Electrical Wiring Boxes
d. Equipment Supports/Hangers
e. Duct work
f. Electrical Disconnect Means
g. Miscellaneous Hardware and Any Other Items not described in this document
1 Wall Intake Hood, FML
2 Fast Clamp, FC
3 Shut-off Damper, ADC
4 Filter cassette, FGR HV
5 Makeup Air Fan, prioAir EC or FKD
EC
6 Silencer, LD
7 Duct Heater, Stelpro (optional)
8 Controller, FMAC*

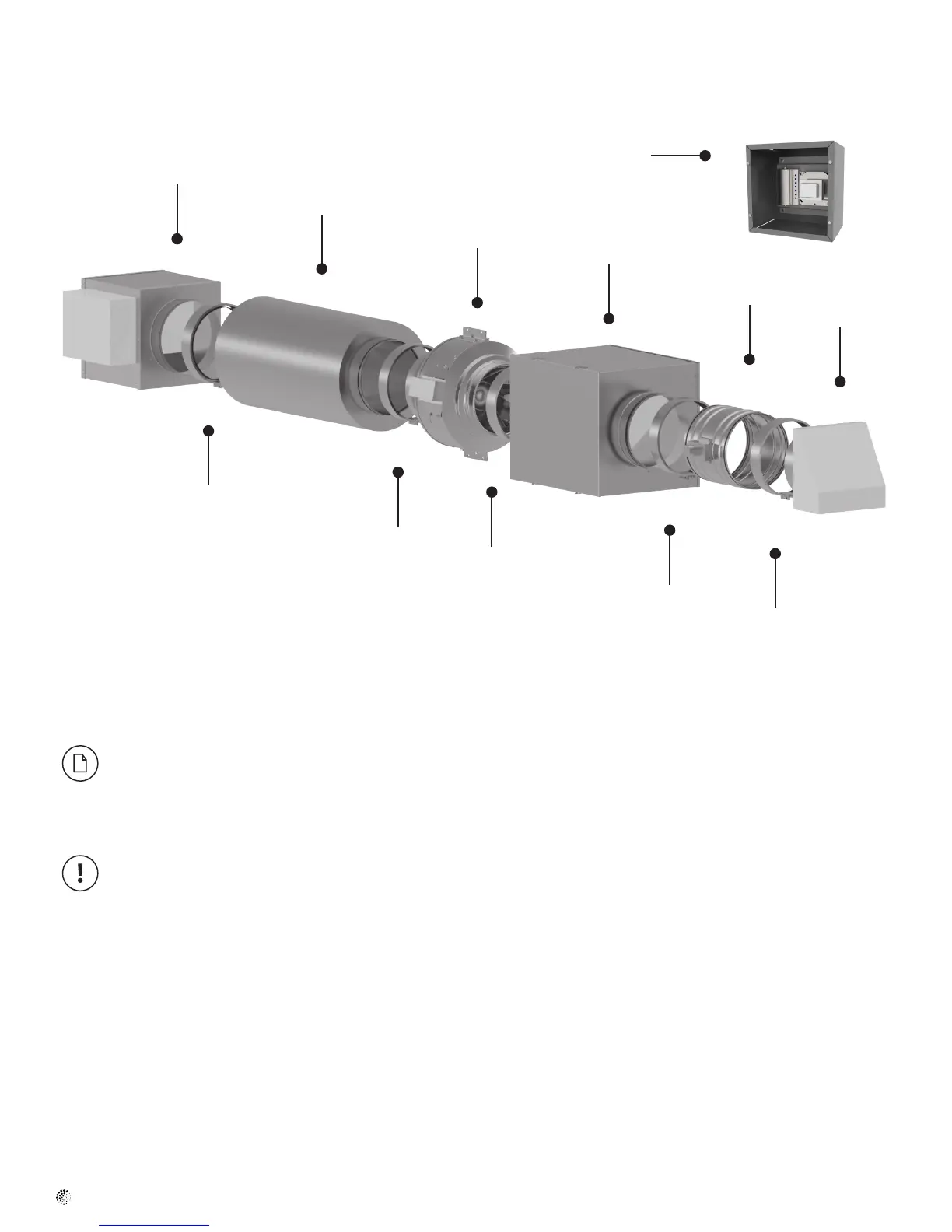

Figure 1. Makeup Air System for Exhaust Fan
2
2
2
2
2
3
6
5
4
1
7
*The FMAC Controller includes a transducer, system control board, 24V transformer, NEMA enclosure,
enclosure back plate for mounting transformer and controller, 4" x 4" electrical box for supporting the
transformer.
8
