5
fantech

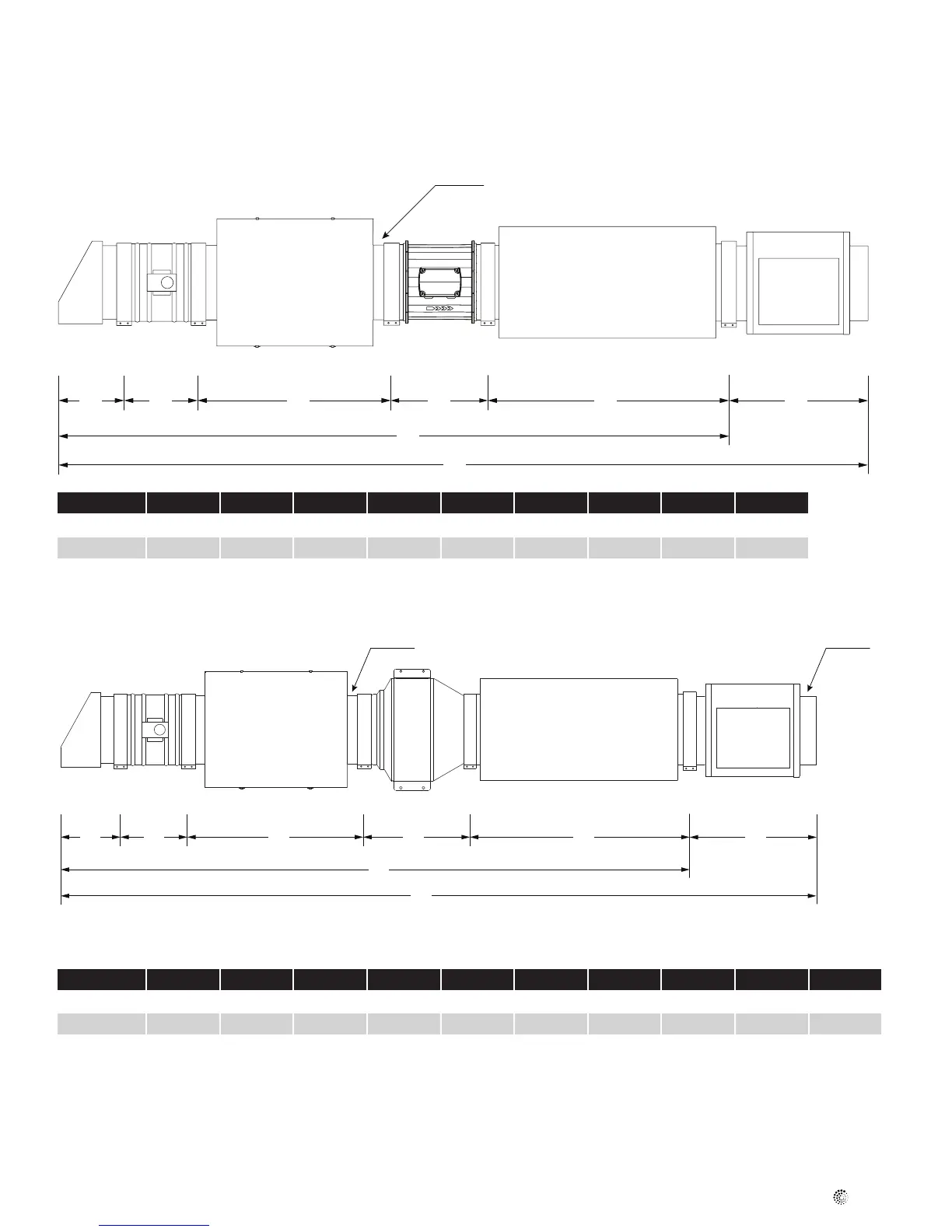

Dimensions
Model A B C D E F H (optional) G J
MUAS 750 10 10 30 1/2 7 7/8 26 5/8 85 14 99 8
MUAS 1200 10 10 30 1/2 9 13/16 38 1/2 98 13/16 14 112 13/16 10
A
B
C
D
E
H
F
G
Ø
J
MUAS 750 & MUAS 1200
Model A B C D E F H (optional) G J K
MUAS 1600 10 1/2 12 30 1/2 18 7/8 38 1/2 110 3/8 14 124 3/8 12 12
MUAS 2000 10 3/4 14 30 1/2 20 /8 38 1/2 114 1/8 24* 138 1/8 14 12
A
B
C
D
E
H
F
G
Ø
J
Ø
K
MUAS 1600 and MUAS 2000
Dimensions are in inches.
All dimensions are in inches.
*
This dimension includes a 14"-12" duct size reducer (not shown), not provided.
