Headlight Lamp
Lens
Socket
Lamp
REPLACEMENT INSTRUCTIONS
Caution: Be sure to turn the ON/OFF switch to the"OFF" position and disconnect the
power cord from the wall outlet before replacing any of the parts below.

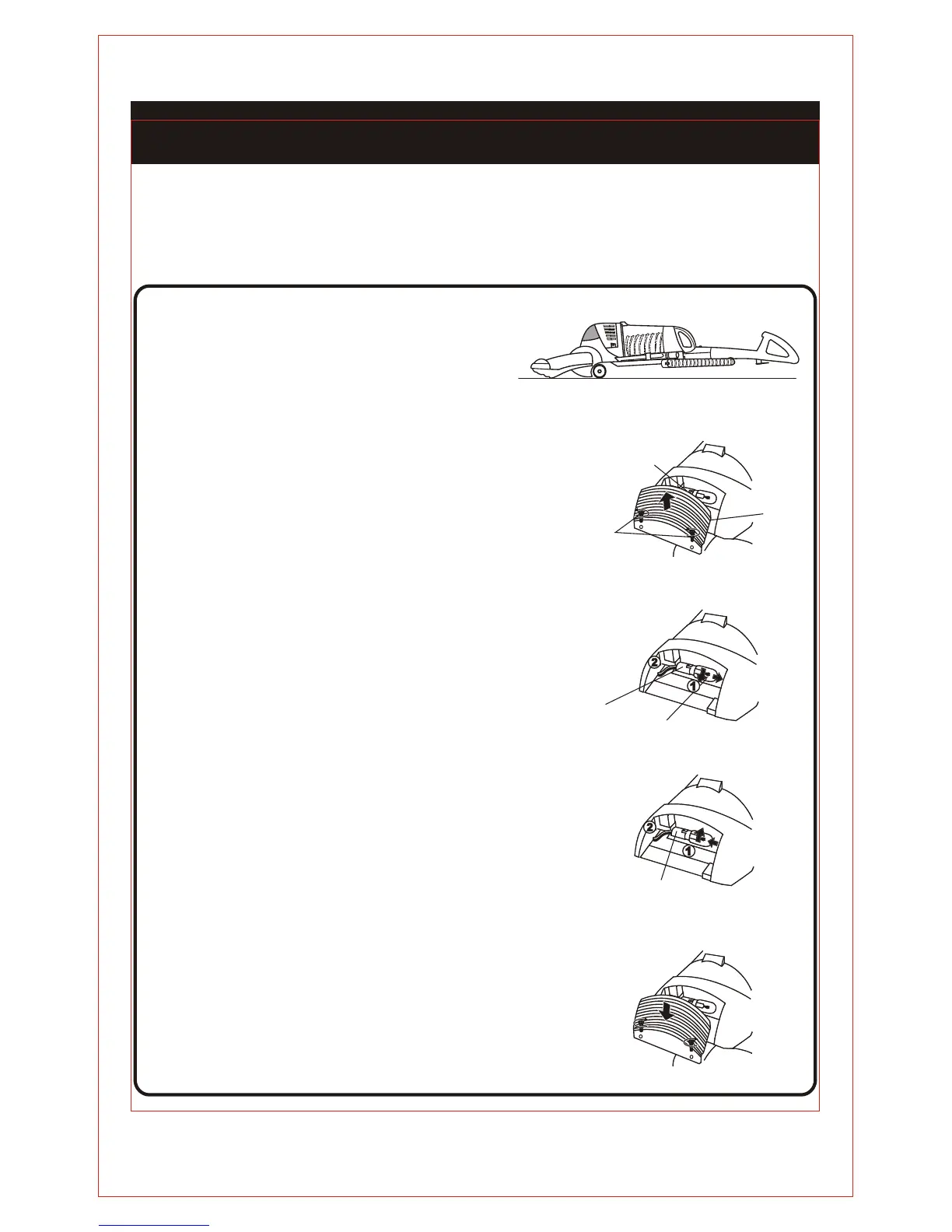

REPLACING THE HEADLIGHT LAMP
1
Set the vacuum cleaner to the parallel position.
2
Loosen the screws to remove the lens.
3
When removing the headlight lamp, be careful
not to pull on the headlight lamp wiring.
4
Remove the lamp by pushing it gently in
the direction of the arrow and then turning
it counterclockwise.
5
Push a new lamp gently into the socket and
turn it clockwise to tighten it .
Use a standard bayonet base appliance lamp
rated at 120V and 15W (LAMP MAX.15W).
Caution: Be careful not to clamp the
headlight lamp wiring.
6
Reattach the lens and fasten the screws.
12
Socket
Screw
