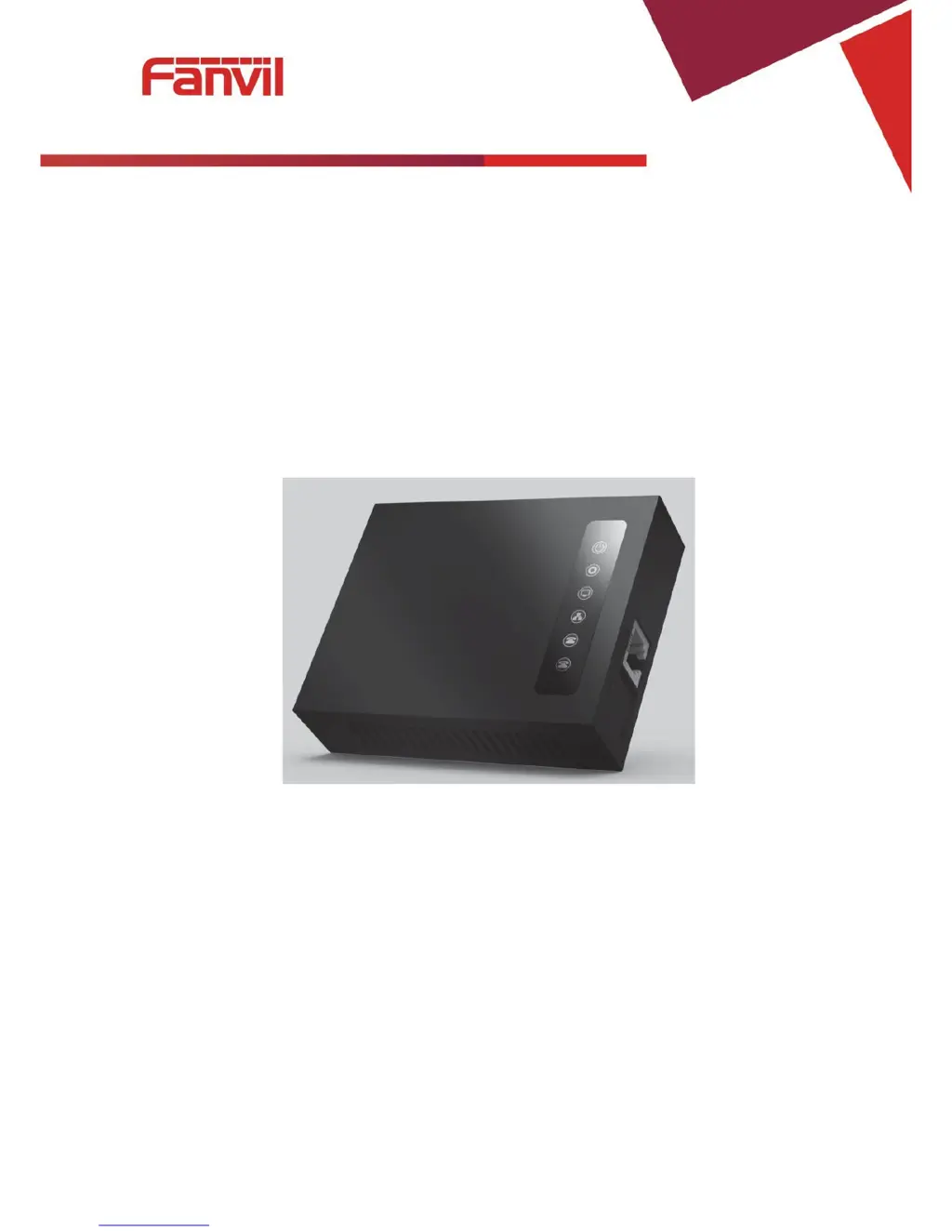

Fanvil G100S User Manual

[䭞ޕ᮷ᆇ]
G100S VoIP
Gateway User Manual

Fanvil G100S Specifications

General

WAN connection	Ethernet (RJ-45)
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Package weight	220 g
Certification	FC, CCC, CE, RoHS
Product color	Black
Syslog	Yes
Flash memory	16 MB
Internal memory	64 MB
VPN support	L2TP/PTP
NAT functionality	NAPT, STUN
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.1p
Ethernet LAN data rates	10, 100 Mbit/s
Voice codecs	G.711a, G.711u, G.726, G.729ab
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 65 %
Input voltage	100 - 240 V
Output current	0.5 A
Output voltage	12 V

Weight and Dimensions

Dimensions (WxDxH)	85 x 67.6 x 35 mm

Summary

Safety Instruction

About Device

Product description

Describes the G100S VoIP gateway's capabilities and target audience.

Device Appearance

Details the physical appearance of the G100S VoIP gateway device.

Getting Started

Connecting the Power and the Network

Guides on connecting the device to power and network infrastructure.

Basic Phone Operation

Call Transfer

Explains how to perform call transfers, including blind and attended methods.

Call Hold

Details how to put calls on hold and manage call waiting.

Shortcut key

Lists and explains the shortcut keys for quick operations via analog phone.

Web Configuration

Ways to Configure

Outlines the methods available for configuring the device.

Password Configuration

Explains the user and manager modes for device access and password settings.

Browser Configuration

Guides on accessing and logging into the web management interface.

WEB Pages Function Explanation

Status

Displays the current operational status of the device and network.

System

System

Configures basic device aspects like hostname, timezone, and logging.

Administration

Allows modification of the current user's password for device access.

Time Synchronization

Configures the device's time using NTP client settings.

Backup/Flash Firmware

Manages backup and restore of configurations and firmware updates.

Auto Provision

Sets up automatic device provisioning via configuration files.

Reboot

Initiates a device reboot to apply changes or restart the system.

Auto-Reboot

Configures scheduled automatic restarts for the gateway.

Network

WAN

Configures Wide Area Network (WAN) connection settings like IP, DHCP, PPPoE.

LAN

Configures Local Area Network (LAN) settings including IP address and DHCP server.

Static Routes

Defines static routes for network traffic flow.

Diagnostics

Provides tools for network diagnostics like ping and traceroute.

Check-WAN

Configures priority levels and checks WAN connectivity for auto-switching.

QoS

Configures Quality of Service to prioritize network traffic.

VoIP

Line1 & Line2

Configures SIP server settings for Line 1 and Line 2 registrations.

Common

Configures common SIP settings, including STUN and registration retry.

Dial Peer

Manages dial peer table for call routing rules.

Debug

Configures logging levels for CM and SIP for debugging purposes.

Phone

Audio

Configures audio codecs, microphone, handset volume, and tone standards.

Call Feature

Sets features like hotline, call transfer, call waiting, and black lists.

Dial rules

Configures dial rules for number receiving and invoking dialing.

Logout

Exits the web interface, requiring re-authentication to access again.

Trouble Shooting

Reboot Device

Provides instructions on how to reboot the device to resolve issues.

Reset Device to Factory Default

Explains how to erase all configurations and restore the device to factory settings.

Network Packets Capture

Guides on capturing network packets for issue identification and analysis.

Common Problems

Lists common symptoms and their corresponding solutions for troubleshooting.
