A.4.1.5.
Variable-Speed Transmission
Variable-speed transmission is a closed system
transmission mechanism capable of varying the motion
from the wheel to rotate the seed and fertilizer gears at
a required ratio and in a “stepless” manner.

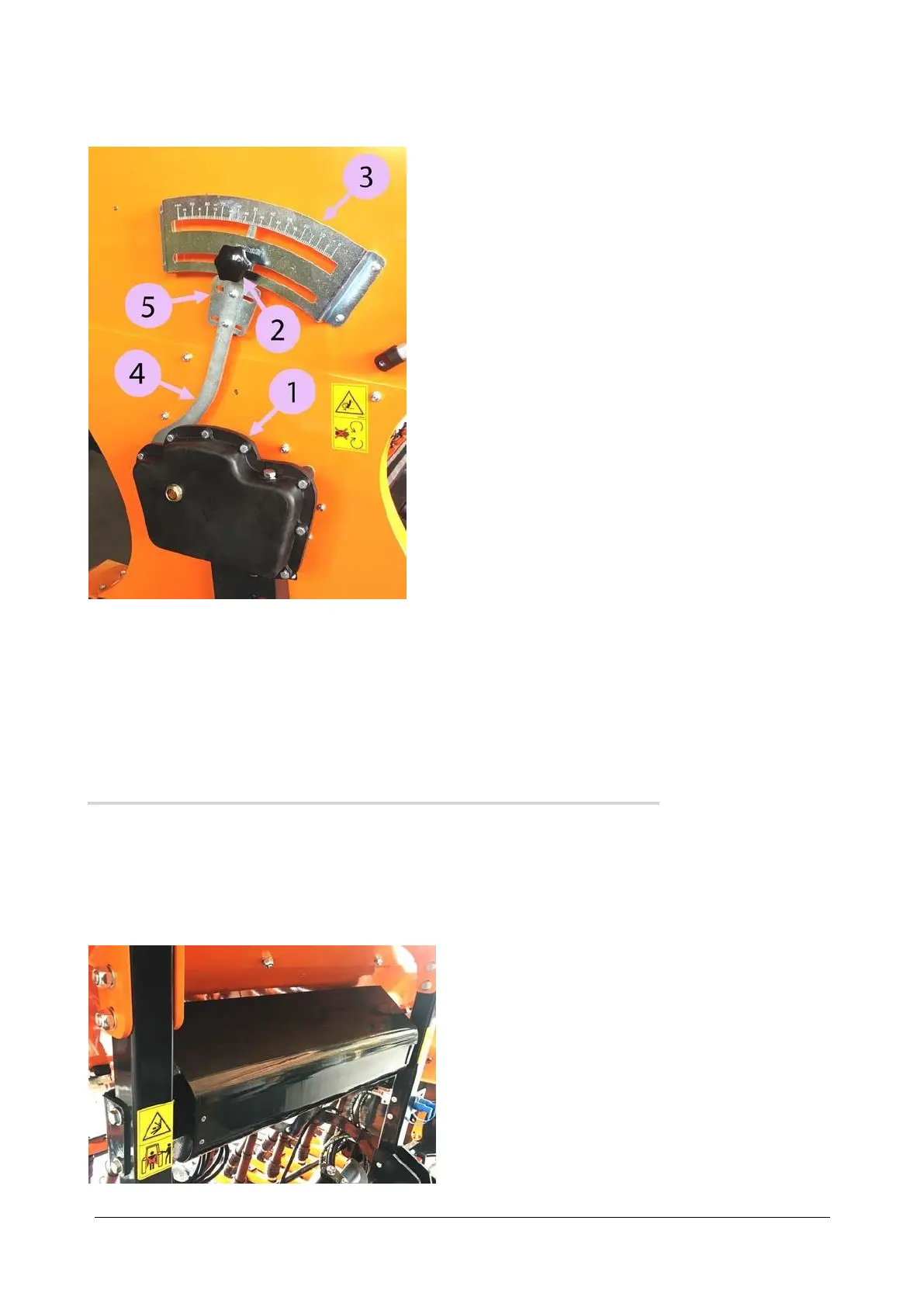

Variable-speed transmission and components (on the left)
1. Variable-speed Transmission
2. Adjustment Fixing Knob
3. Transmission Scale
4. Lower Transmission Lever
5. Upper Transmission Lever
One transmission is equipped on the box to control the
seed and fertilizer hoppers; and the amount of the seed
and fertilizer to be spread (seeding norm) is adjusted by
changing the position of the adjusting arm, connected to
the transmission, on the scale.
For detailed information about transmission adjustment refer
to:
(Section C.1. Seed and Fertilizer (Spread Amount)
Spread Norm Adjustment, C.1.3. Calibration
Adjustment)
A.4.1.6.
Tool Box / Tool Kit
There is a tool box in your grain drill to put the
scale, wrench set and similar tools to be needed
during the use of the machine.
Some models may have fresh water box
(optional) instead of tool box.
