Faro LISBOA - Hanging and Electrical Connections

INSTRUCCIONES DE SEGURIDAD / INSTRUCTION DE SÉCURITÉ SAFETY INSTRUCTIONS / INSTRUÇÕES DE SEGURANÇA
SICHERHEITSHINWEISE / VEILIGHEIDSINSTURCTIES INSTRUZIONI DI SICUREZZA
Faro
- 17 -

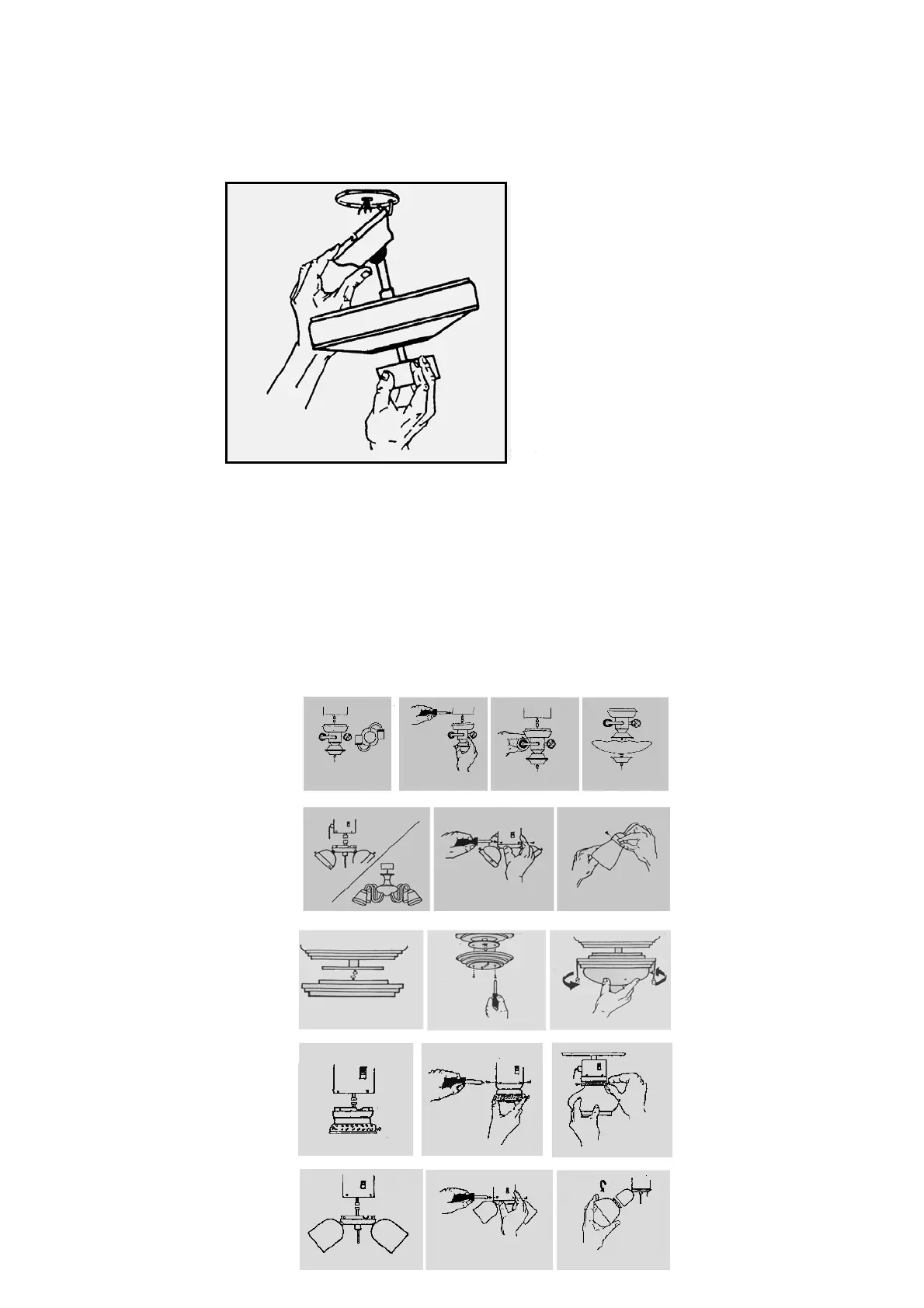

2.2. Hang the assembly of the ventilator from the hanger bracket of the base plate, which
will allow you to make the electrical connections more comfortably and without having
to hold the fan up.
CARRYING OUT THE ELECTRICAL CONNECTIONS
- Disconnect the power to avoid electrical shocks.
- In the fan motor there are 4 cables, blue, red, brown and green
1. If the ventilator does not have light, connect the blue cable to one in the ceiling and the
brown one to the other; the green/yellow cable is connected if in the ceiling has an earth
wire, the red one is annulled.
2. If the ventilator has kit of light or you wish to install one, join the red and brown cables
together and connect them to a cable in the ceiling and the blue one to the other blue
one. (see drawings)
3
4
3
2
1
5
