Faro LISBOA - Blade and Mounting Installation; Speed Control and Settings

INSTRUCCIONES DE SEGURIDAD / INSTRUCTION DE SÉCURITÉ SAFETY INSTRUCTIONS / INSTRUÇÕES DE SEGURANÇA
SICHERHEITSHINWEISE / VEILIGHEIDSINSTURCTIES INSTRUZIONI DI SICUREZZA
Faro
- 18 -
HUGGER HANG DOWN
BLADE INSTALLATION

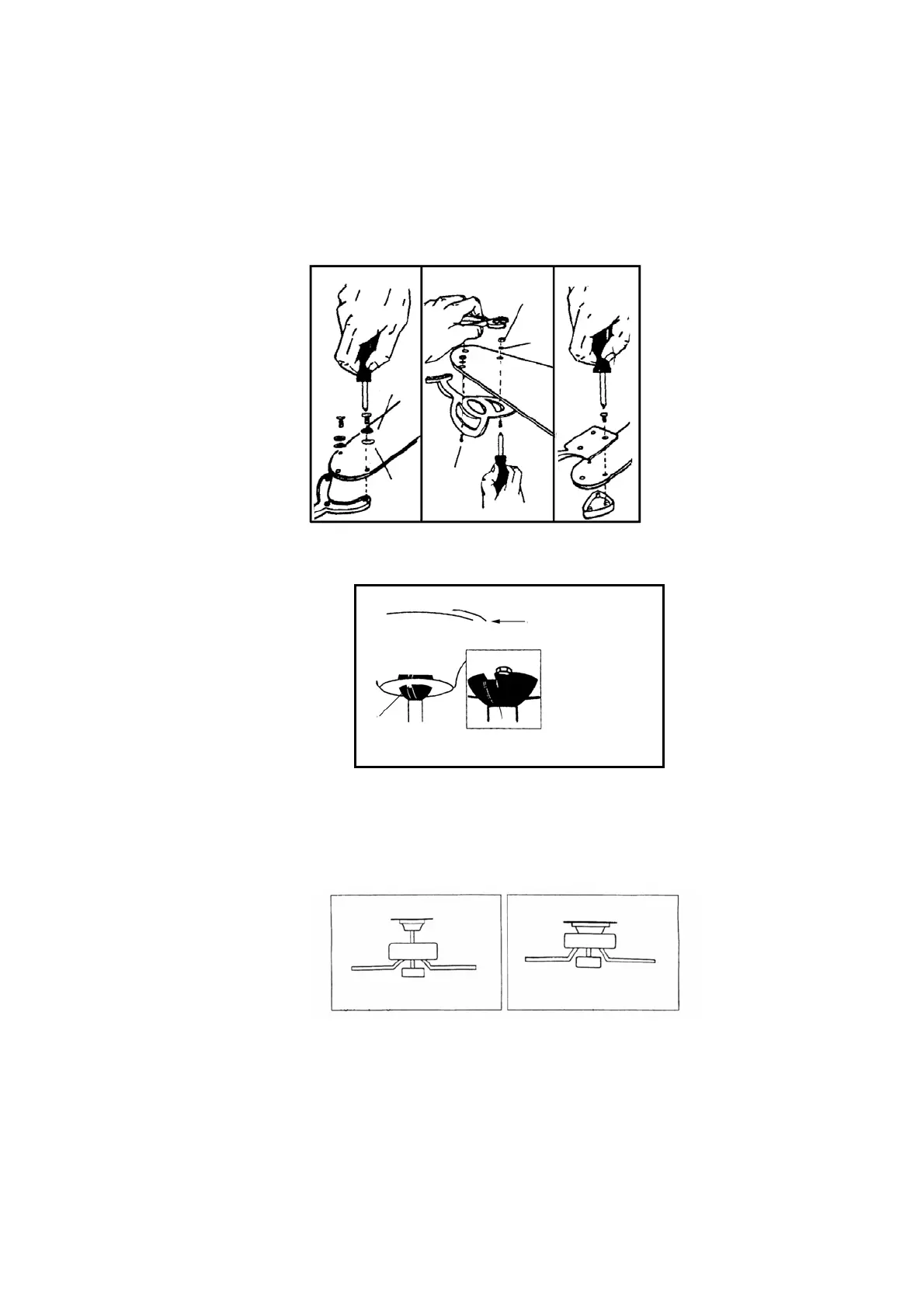

Once the motor is installed, mount the blades and install them in the motor. See drawing.
Once installed the blades fix the rod as shown in the picture
INSTALLATION OF THE CEILING FAN
This method is preferred if the
ceiling is sloped or vaulted, of
if ceiling is extra high.
This method is preferred if
maximum
headroom is
required. The
ceiling must be
horizontal.
The chain of the motor has 4 positions:
1 High speed
2 Medium speed
3 Low speed
4 Off
Canopy
Slot
Metal
Washer
Cardboard
Washer
Setscrew
Washer
Nut
