Fastbind ELITE XT - Smoothness of Clamp Movement

Elite XT 3352 b2
Page:
Name:
17-01
Part no+ version:
8
2
5
1
3
4
7
11
10
9
6

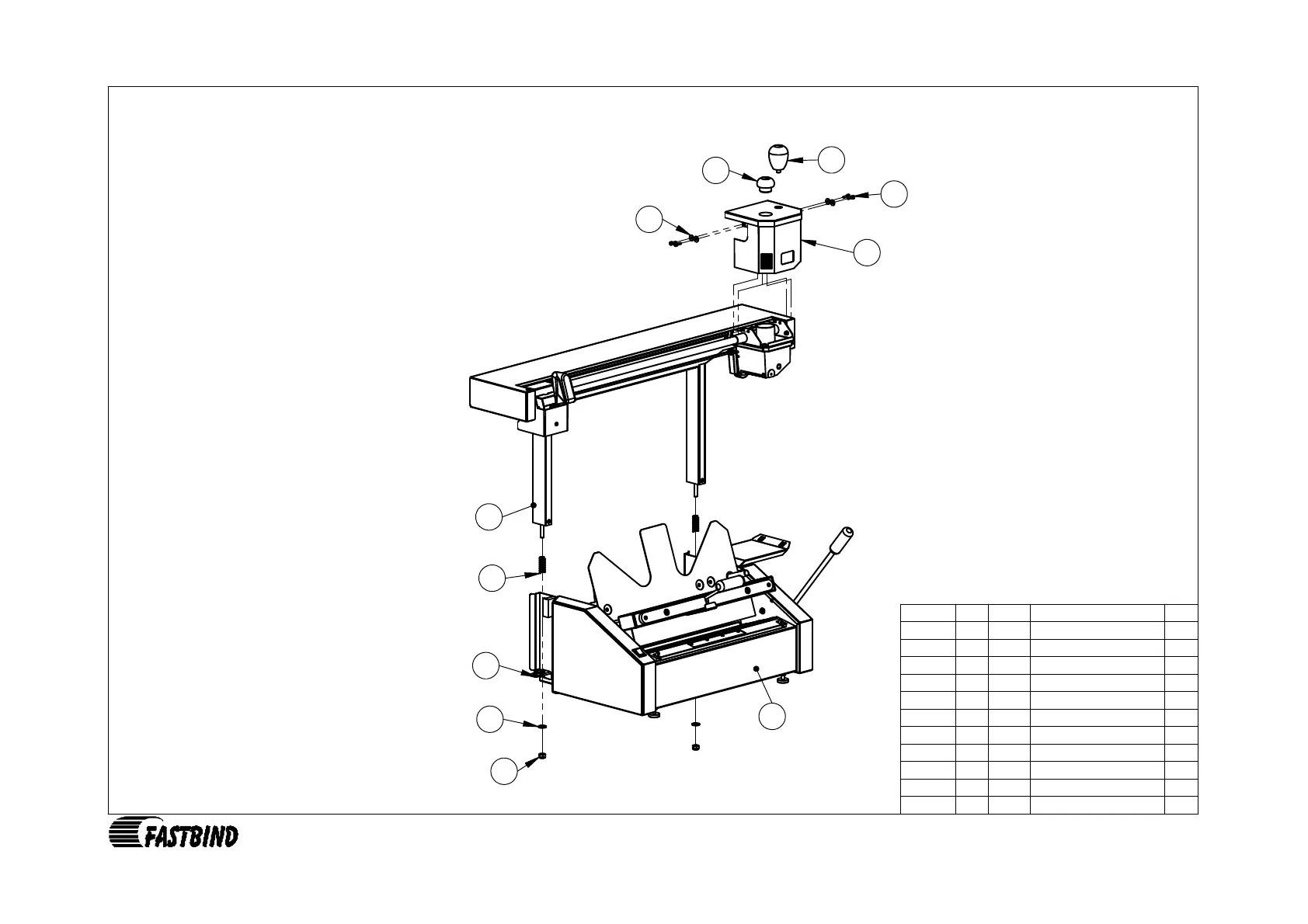

ITEM NO. ID Versio Name QTY.
1 3334 c1 Frame 1
2 3354 a4 Rail assembly 1
3 2318 STD Washer -A M10 2
4 3539 STD Nyloc nut M10 2
5 2363 STD Rail adjuster spring 2
6 4065 a2 Adjustment fork 0,7 mm 6
7 0611 a3 Applicator housing assembly1
8 0566 b2 Reservoir cap 1
9 0629 a1 Hand knob 1
10 1802 STD Washer 5 mm 4
11 1809 STD Hex socket screw M5 4
