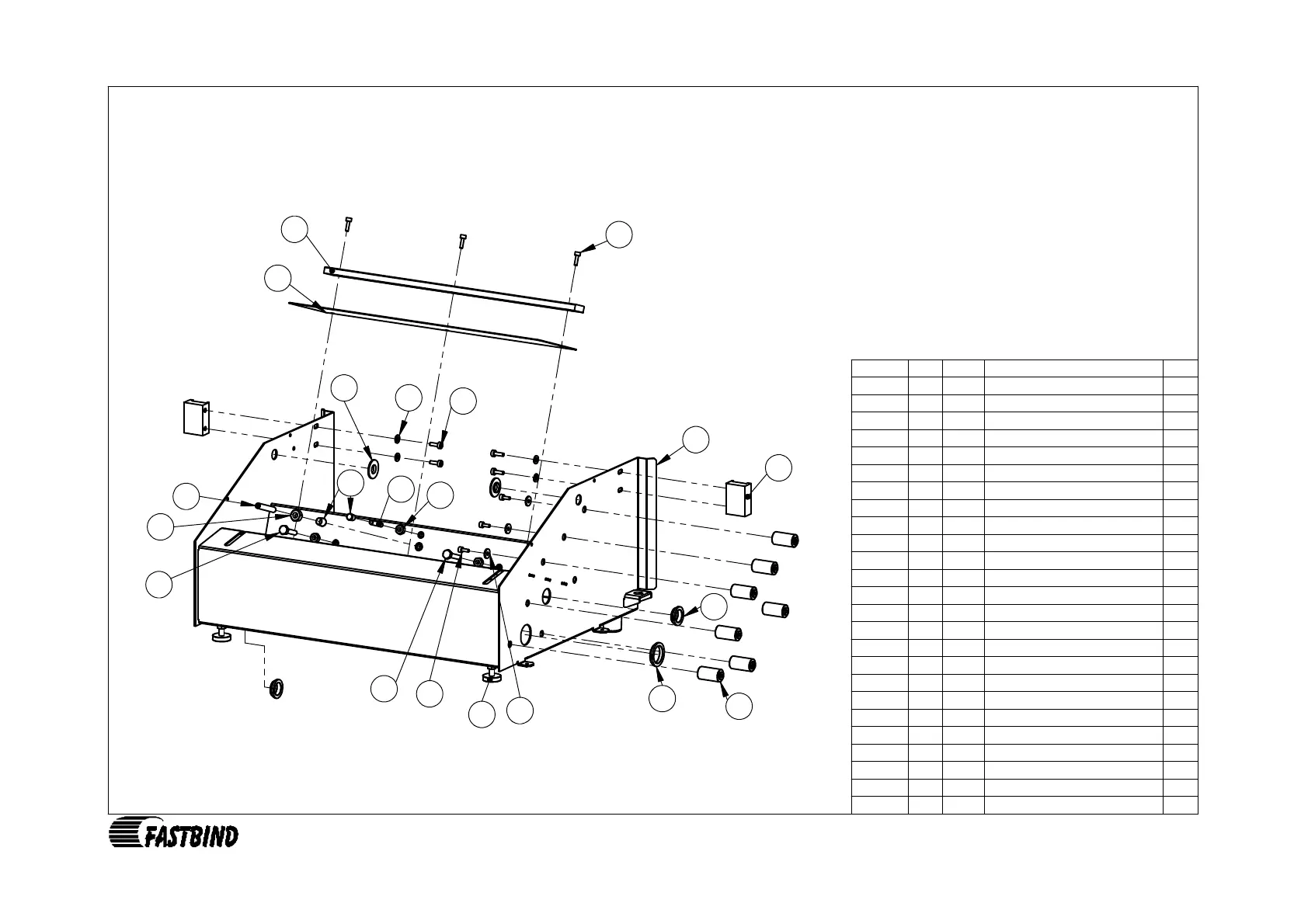

ITEM NO. ID Versio Name QTY.
1 3331 b3 Frame A3 HKP 1
2 3509 a3 Bearing 2
3 0615 a2 Bearing 2
4 3570 a1 Bearing 1
5 3560 b1 Gear peg 7
6 3511 b3 Back support soft 1
7 3634 a1 Positioning plate 1
8 3635 a2 Rail support 2
9 3548 STD Retaining screw M10 1
10 1838 STD Hexagon nut M10 1
11 3667 STD U-plug 2
12 1840 STD Retaining screw M8x35 1
13 2253 STD Hexagon nut M8 5
14 4096 STD Hex bolt M8 2
15 3675 STD Rubber foot 2
17 2200 STD Washer -A M6 4
18 3744 STD Hex socket screw M6 4
19 3646 STD Leveling foot M6 2
20 1809 STD Hex socket screw M5 3
21 2353 STD Spacer nut M5x25 1
22 1808 STD Hex socket screw M5x12 8
23 2376 STD Washer M4 7
24 3741 STD Shimming washer 14x20x1,0 1
25 2317 STD Washer -A M5 2
26 2326 STD Hex socket screw M5 2
3334 c1
Page:
Name:
17-02
Frame
