Section 3
MAIN PARTS AND CONTROLS
MAIN PARTS AND CONTROLS

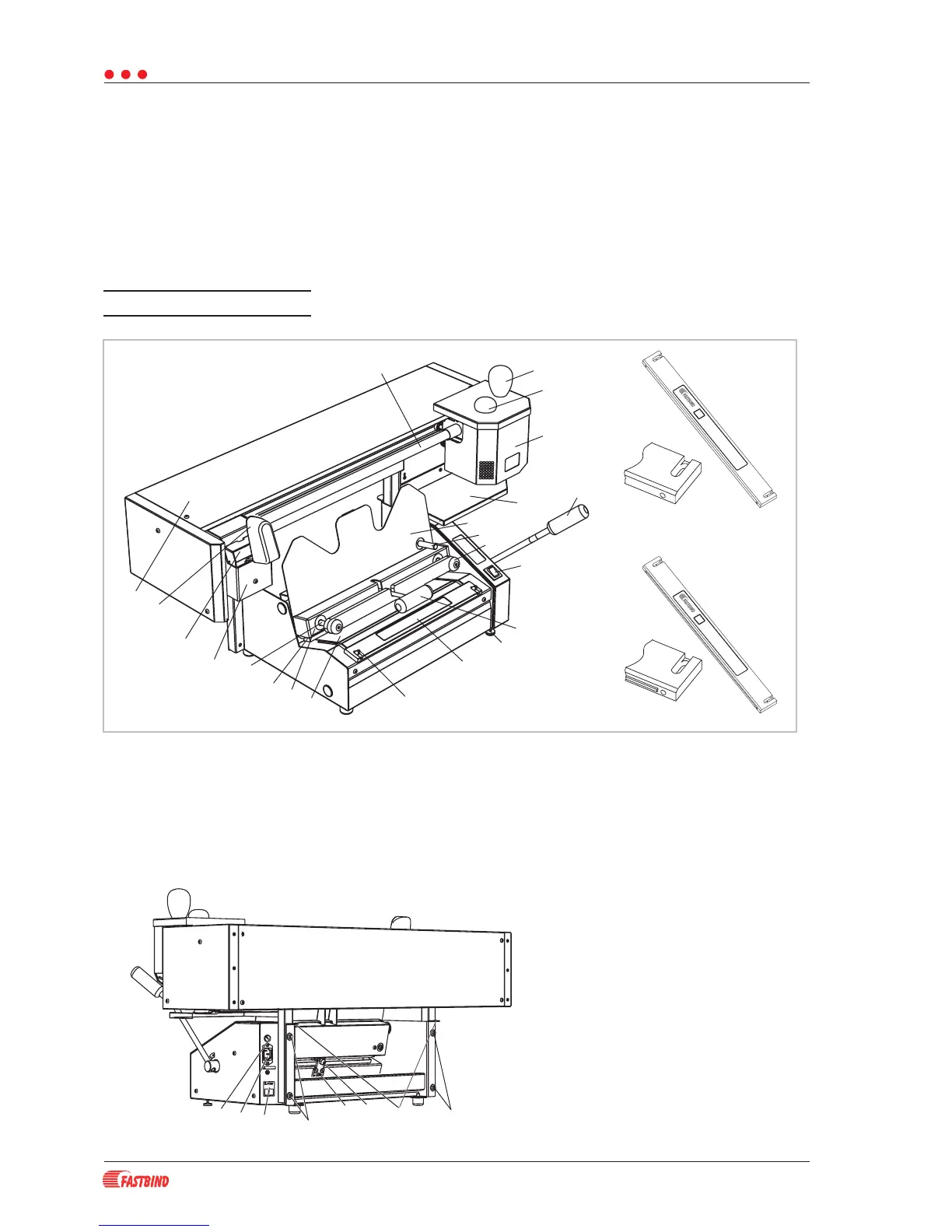

Machine Overview
S -nipping tool for soft covers
H -nipping tool for hard covers
Rail height adjustment screws
Rail height locking screws
Table angle adjustment (table down)
Table angle adjustment (table up)
Type plate with serial number
Main connector
Fuse holder with fuse: 230V 6.3 A (T)
23.
24.
25.
26.
27.
28.
29.
1.
2.
3.
4.
5.
6.
7.
8.
Applicator guide
Hand Knob
Reservoir Cap
Adhesive Applicator
Drop Collector with Drop Tray
Turn Table
Paper Guide (Soft or Hardcover)
Knob and Support Rod
Operating Handle
Main Switch
Clamp Handle
Leveling foot
Spine Pressing Tool (nipping tool)
Cam Driving Nipping Tool
Positioning Deck
Clamp
Back Support
Clamp Guide Rod
Roughener
Cover for adjustment elements
Roughener handle
Rail
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
1 - 6
