Fasttel FT23K - 2.3 with Wiegand Connection; 3. Programming

To Next Page

To Previous Page

Ed2.2

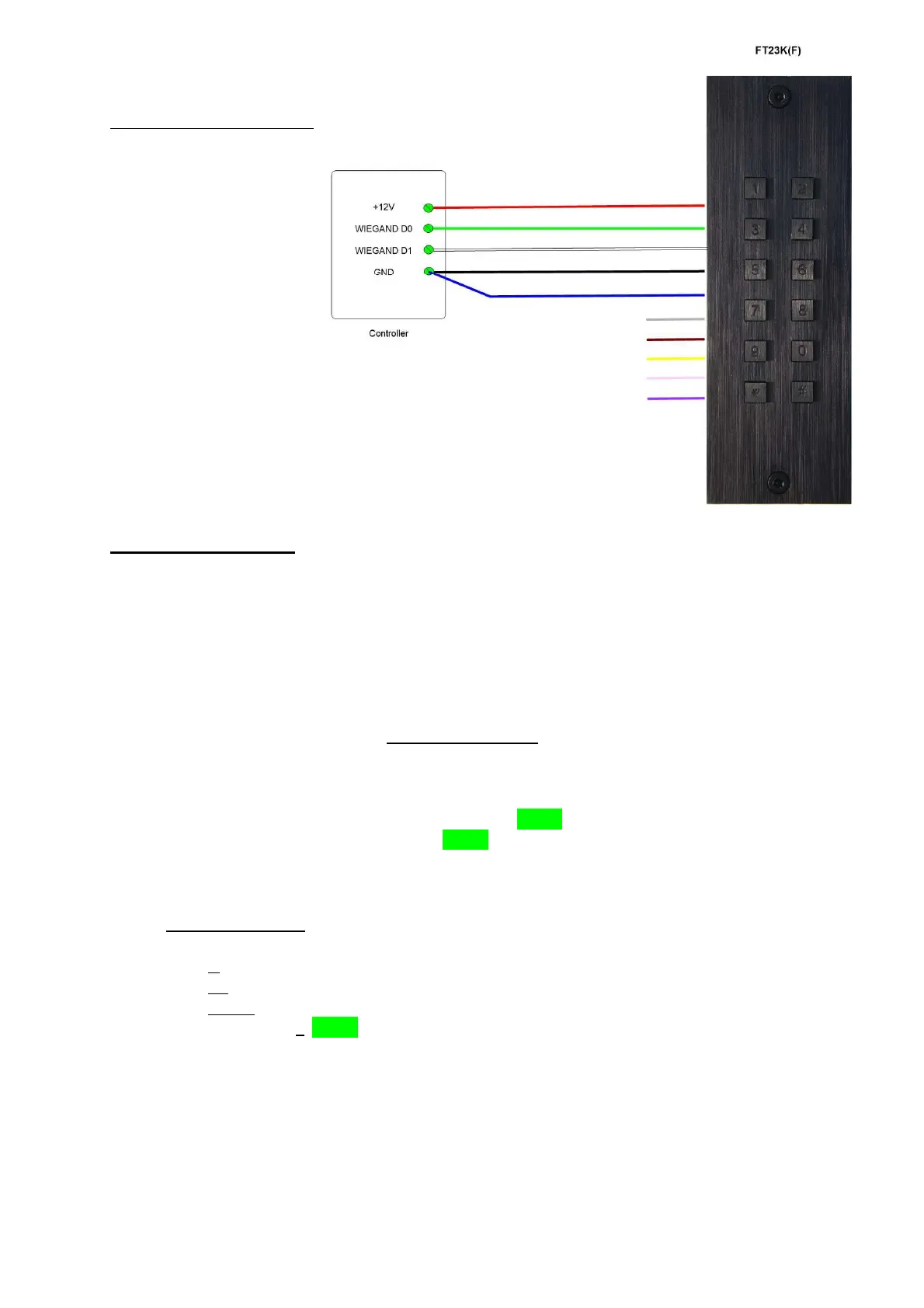

2.3 with Wiegand connection

Red = +12V

Black = GND

Bleu = GND Wiegand

White = Wiegand D1

Green = Wiegand D0

Grey = Not used

Brown = Not used

Yellow = Not used

Pink = Not used

Purpel = Not used

3. Programming

Access to programming: Press *1996*

After entering the code above you should hear 3 tones  tit tit tut indicating that you have entered

the main menu.

-Each correct code is confirmed by two long beeps (tuttut)-

-Any wrong code is confirmed by three long tones (tuttuttut)-

Programming Relay

First choose from the 2 modes:

930 : activate connection with FT25KINT (default) tuttut)

936 : activate Internal Relays (default) (tuttut)

Thereafter:

920 * i aa xxxxxx # :

- i = (Relay) 1 or (Relay) 2

- aa = index code 01 untill 24

- xxxxxx= 4, 5 or 6 digit code.

- End with # tuttut)

Example:

- First code to activate relay 1 with the code 1020:

This is programmed with 920 *1 01 1020#

- Second code to activate relay 2 with code 112233:

This is programmed with 920 *1 02 112233 Etc..
