Advanced Function Instruction
7-125
FUN160 D P
RWFR
READ/WRITE FILE REGISTER
FUN160 D P
RWFR
● For ladder program application, only this instruction can access the file registers.
● The record pointer will be increased by 1 after execution while pointer control input "INC"=1.
● This instruction will not be executed and error indicator ”ERR" will be 1 while incorrect record size (L=0 or >
511) or the operation out of the file register's range (F0～F8191).

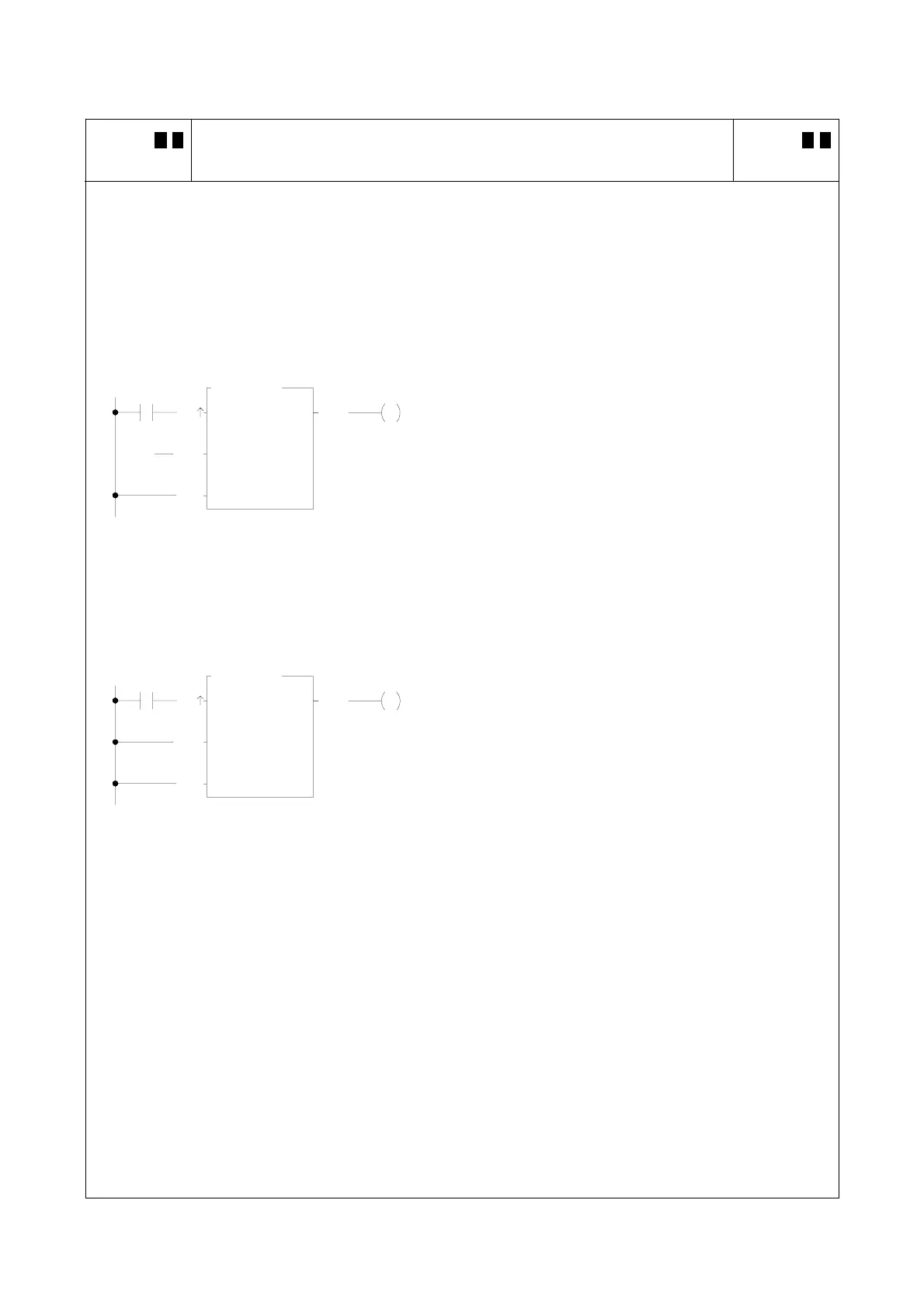

EN
160.RWFR
ERR
M10
M0
R/W
INC
L :
Pr :
Sa :
Sb :
D0
R0
F100
50
M0
EN
Sa :
R0
160.RWFR
Sb : F100
L :
Pr :
R/W
INC
ERR
50
D0
M10
.
When M0 changes from 0Æ1, if D0 =2, the contents
of file registers F200~F249 will be overwritten by the
content of data registers R0~R49. the record length is
50.
.Pointer will be increased by 1 after operation.
.When M0 changes from 0Æ1, if D0 = 1, the content
of data registers R0~R49 will be overwritten by the file
registers F150~F199.
.The record pointer will be increased by 1 after
operation.
