FATEK FBs-2DA - Page 35

H3-5
Model Number Specifications
FBs-CB2
1 RS232 (port2) communication board
FBs-CB22
2 RS232 (port1 & port2) communication boards
FBs-CB5
1 RS485 (port2) communication board
FBs-CB55
2 RS485 (port1 & port2) communication boards
FBs-CB25 1 RS232 (port1) + 1 RS485 (port2) communication board
Communication Board
(CB)
FBs-CBE 1 Ethernet communication board
FBs-CM22
2 RS232 (port3 & port4) communication modules
FBs-CM55
2 RS485 (port3 & port4) communication modules
FBs-CM25
1 RS232 (port3) + 1 RS485 (port4) communication expansion module
FBs-CM25E
1 RS232 (port3) + 1 RS485 (port4) communication module with Ethernet
Communication
Module (CM)
FBs-CM55E 1 RS485 (port3) + 1 RS485 (port4) communication module with Ethernet
Communication boards, which can be directly installed on FBs main units, are employed for expansion of
communication ports port1 and port2. Communication modules are independent modules used for the expansion of
communication ports port3 and port4 and need to be mounted against the left side of FBs main unit and connected to
the main unit via a 14pin connector. The labels of communication ports are marked on the cover plate of
communication boards and modules, from which users can easily identify each port. Except that the built-in
communication port (Port0) can only be used for USB or RS 232 interface, all the other ports (Port 1~4) can be used

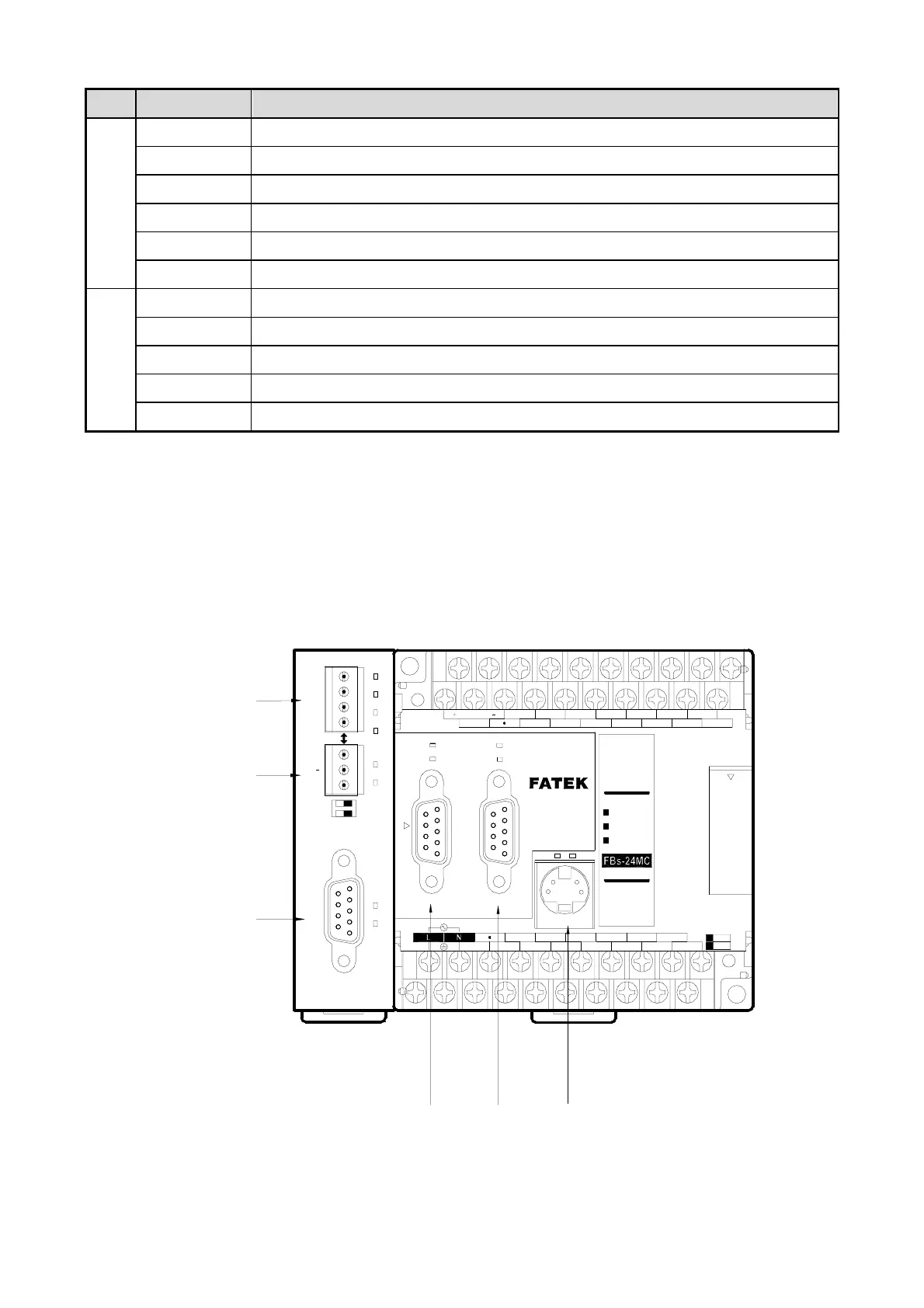

for RS232 or RS 485 interface in CB and CM. The following figure shows an example of expansion of 5 (maximum
allowed number) communication ports (CB22+CM25E):
