H1-2
○
8
Indicators for transmit (TX) and receive (RX) status of built-in communication port (Port0).
○
9
Indicator for Digital Input (Xn).
○
10
Indicator for Digital Output (Yn).
○
11
Indicator for system status (POW, RUN, ERR).
○
12
I/O output expansion header cover [units of 20 points or beyond only], with esthetic purpose and capable of securing
expansion cable.
○
13
FBS-CB22 Communication Board (CB).
○
14
FBS-CB22 CB cover plate (each CB has its own specific cover plate)
○
15
Screw holes of communication board.
○
16
Connector for communication board (for CB2, CB22, CB5, CB55, and CB25)
○
17
Connector for Communication Module (CM) (only available in MC/MN model, for CM22, CM25, CM55, CM25E, and
CM55E connection).
○
18
Connector for Memory Pack.
○
19
Connector for built-in communication port (Port 0) (With USB and RS232 optional, shown in the figure is for RS232)
○
20
I/O output expansion header (only available in units with 20 points or beyond), for connecting with cables from
expansion units/modules.
1.2 Appearance of Expansion Unit/Module
There are three types of cases for expansion units/modules. One type uses the same case as main unit that of the 90mm,
130mm, and 175mm, while the other two have thinner 40mm and 60mm cases, which are for expansion modules. All
expansion cables (left) of expansion units/modules are flat ribbon cables (6cm long), which were soldered directly on the PCB,
and the expansion header (right) is a 14Pin Header, with this to connect the right adjacent expansion units/modules. In the
following, each of the three types of expansion units/modules is described as an example:

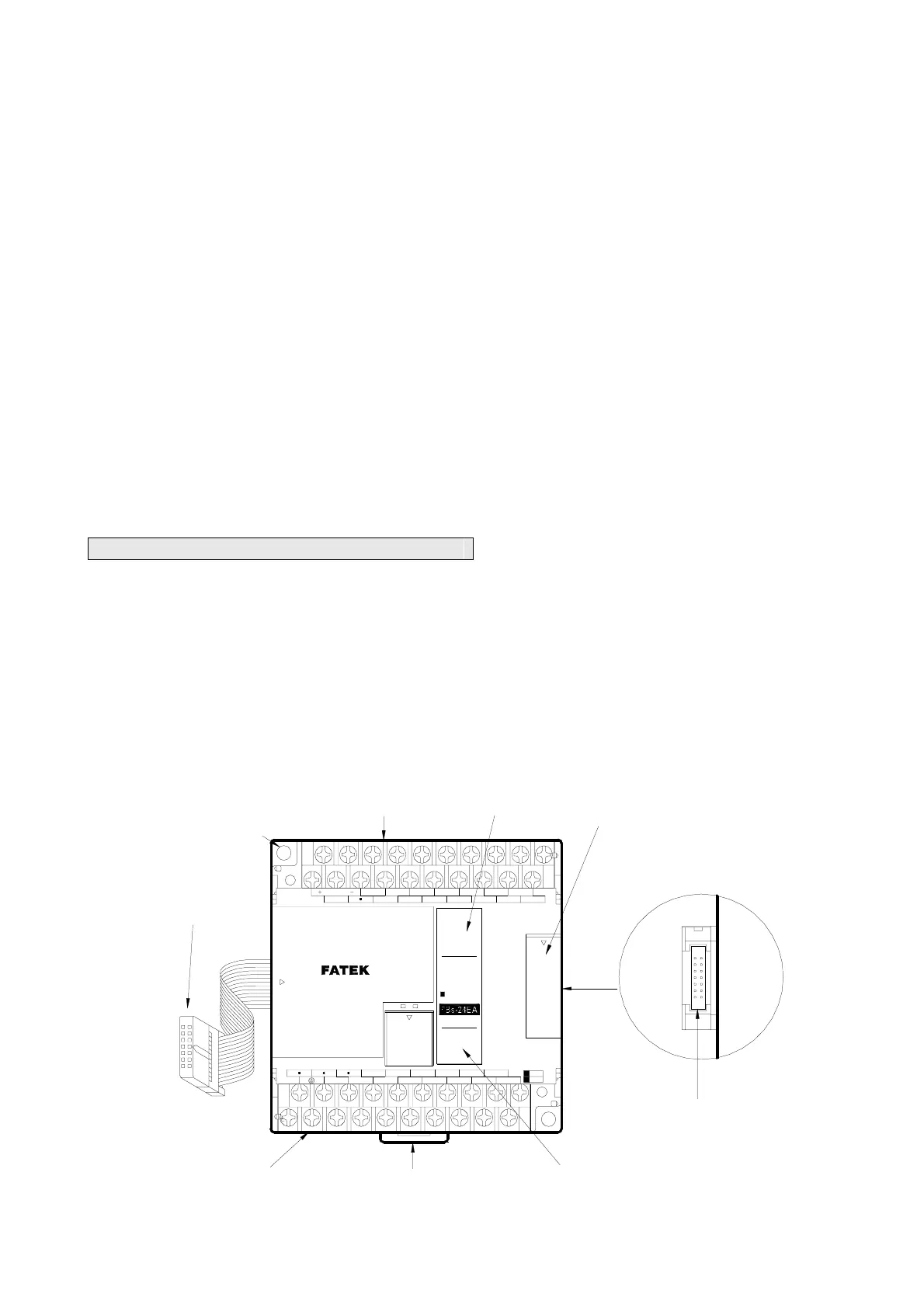

z Expansion unit/module with 90mm, 130mm, or 175mm width case: [-24EA(P), -40EA(P), -60EA(P), -TC16,
-RTD16]
X6
C5
PROGRAMMABLE
CONTROLLER
C1
Y2
Y1
C3
Y4
Y3
Y5
S/S
24V IN
X2
X1
X4
X3 X5
Y10
Y7Y6
C7
Y8
Y9
SINK
SRCE
X12
X9
X8
X7
X10
X11
X14
X13
數位輸入端子台
擴充輸入
扁平排線接頭
數位輸出端子台
及主電源輸入(EAP時)
擴充輸出插槽
( )
OUT Y
IN X
( )
8
4
I2
4
8
I4I3
9
5
I
67
I0
23
POW
3I2
5
9
76
I0 I I
螺絲固定孔
ψ4.5 × 2
DIN RAIL卡鉤
輸出狀態
指示燈
輸入狀態
指示燈
擴充輸出插槽蓋板
擴充輸出插槽蓋板
移除之正視圖
Expansion cable
connector
Screw hole
φ 4.5×2
Digital output terminal block and
Main power input (for EAP)
DIN RAIL tab
Output status indicator
Output expansion
Front view of output expansion
header with cover plate removed
Digital input
terminal block
Input status
indicator
Output expansion
header cover plate
