FATEK M Series User Manual

Chapter 1 Summary of M-PLC Motion Control Unit
1-5
M-Series PLC Motion User Manual
1-3 Axis Control Function and Reference
Described below are the unit hardware interfacing port between M-PLC units and the indicator
status, as per the M-PLC Unit indicated below. The left-hand side port is provided for connecting to
the power module and communication module, and the right-hand side port is designed for
connecting to the AIO, DIO and temperature module, etc. Further, the right-hand side should also be
provided with a terminal module for using as the terminal end.

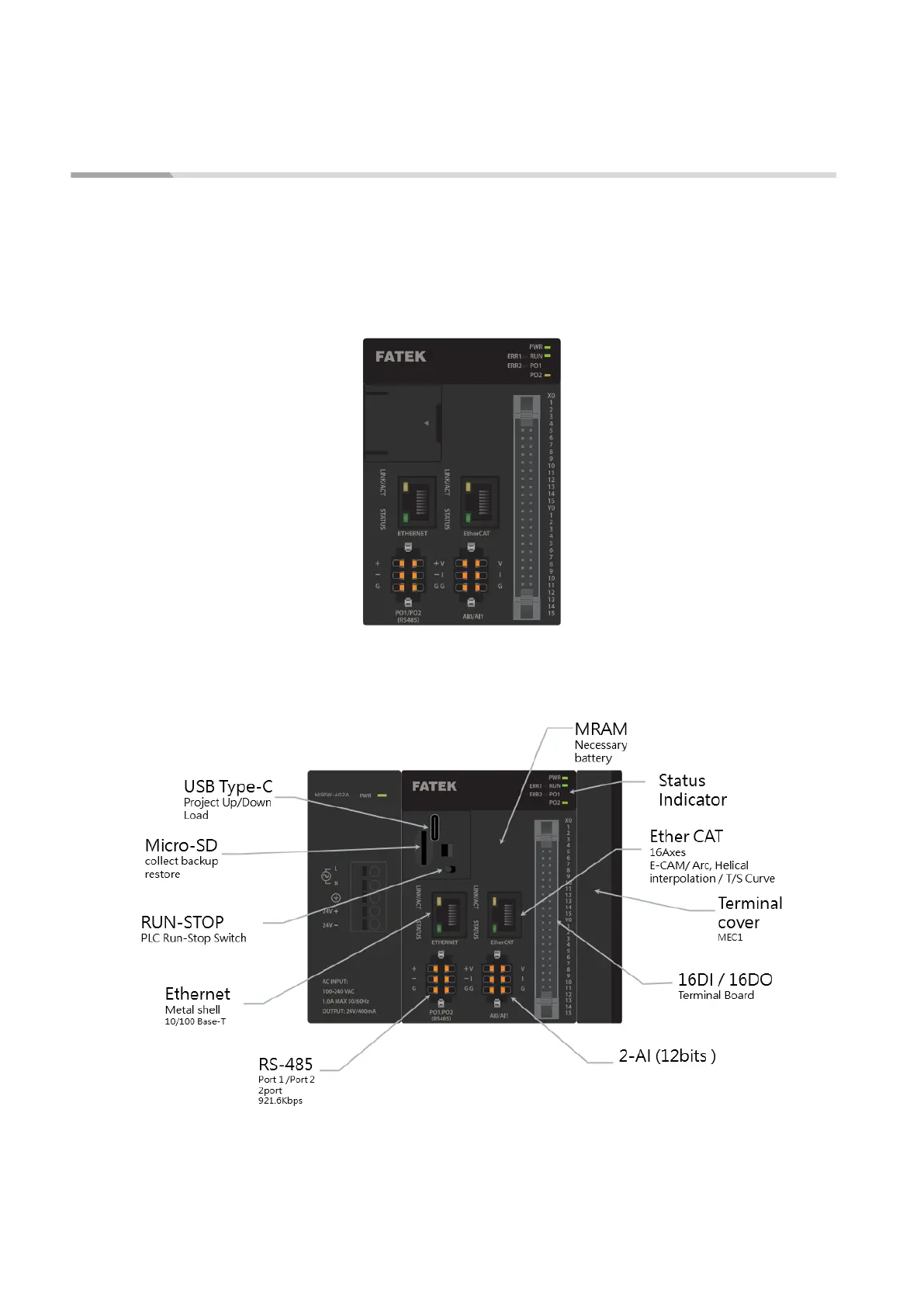

Indicated below are the M-PLC unit related ports:

FATEK M Series Specifications

General

Brand	FATEK
Model	M Series
Category	Controller
Language	English
