FATEK P5043S - Unpacking the Unit; Installation Procedures

4.
Unpacking
the Unit
FATEK HMI x1
Hook and Screw x4
A4 Double-sided Installation Guide x1
5.
Installation Procedures


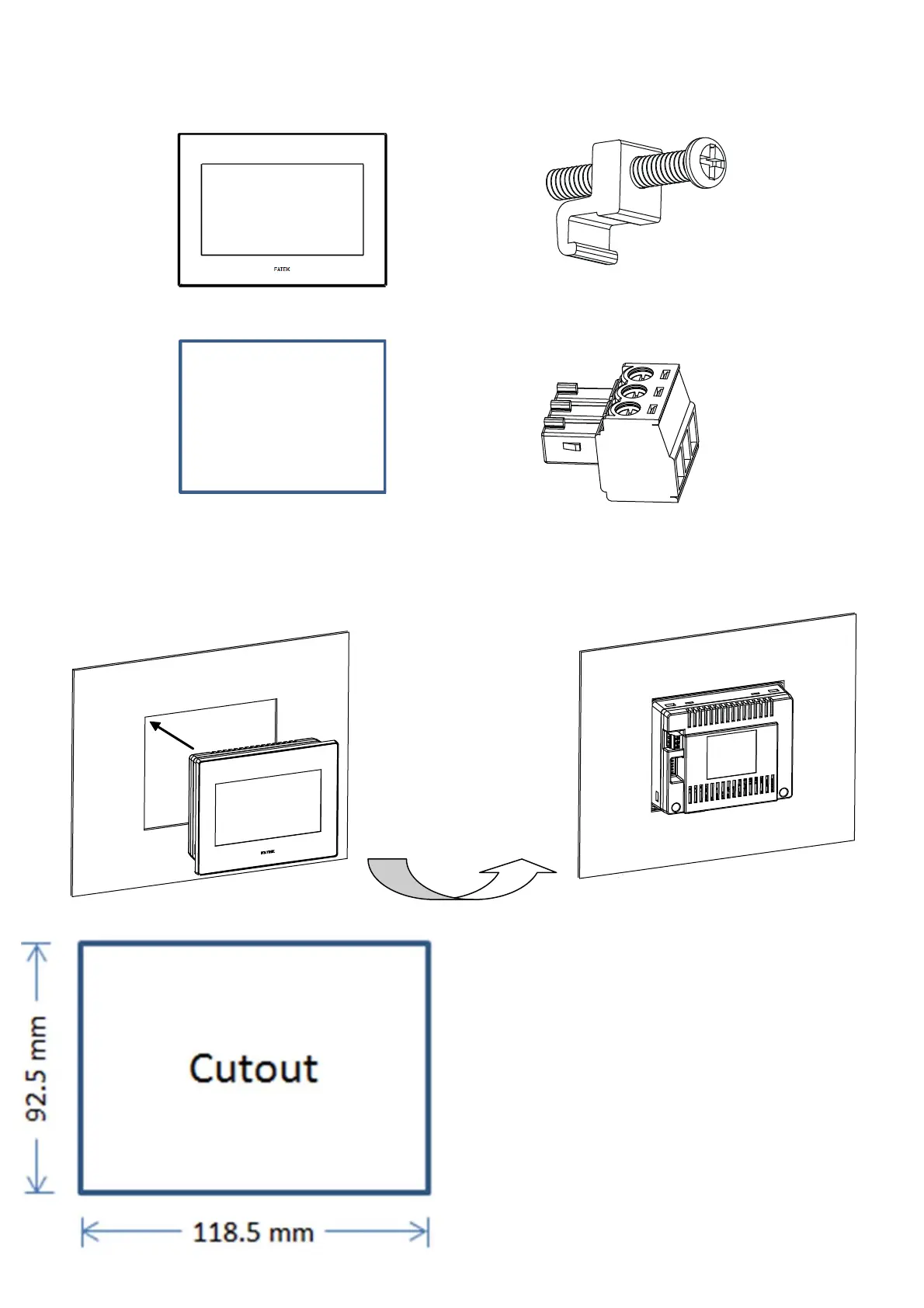

Push the HMI
into the cutout
until the
waterproof ring
contacts the
plate.
 Insert a hook into each mounting hole
on the HMI, and then tighten the
screws evenly with a moderate torque.

Failure to tighten the screws may
cause the HMI to fall, malfunction
or
short-circuit. Excessive tightening may
cause deformation.
The necessary
torque
is
about 0.16N·m.
5
Power Connector x1
