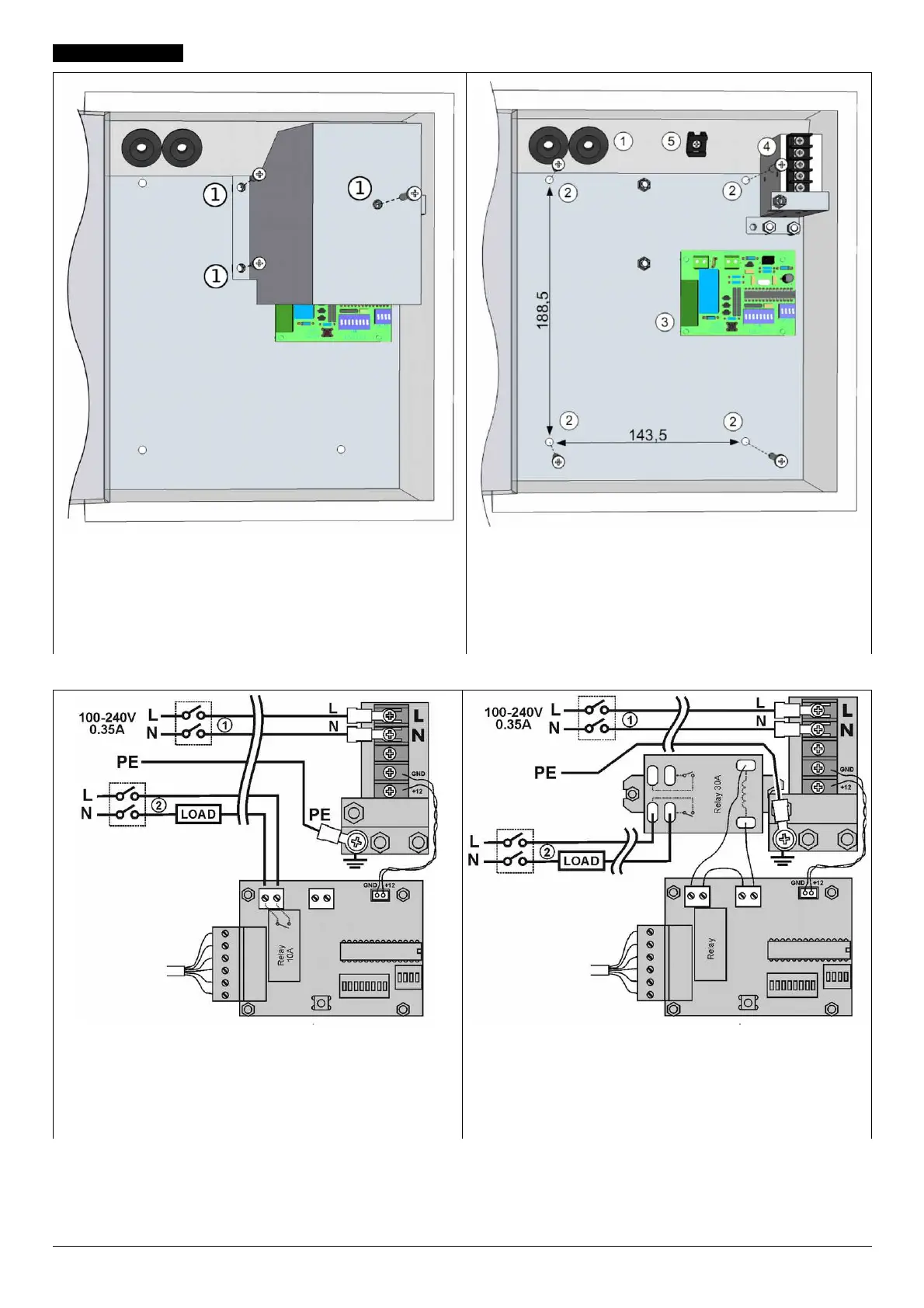

1) Fastening screws of the protection case.
Fig 1: Protection case of the connectors
1) Entrance for cables (grommets).
2) Holes for fastening to wall
3) Electronic board.
4) Power supply.
5) Cable clamp.
Fig 2: Mounting CT1
1) Power supply connection for the CT1
2) Power supply connection for the electrical load
Fig 3: Electrical connections on the CT1 with relay 10A
(standard version)
1) Power supply connection for the CT1
2) Power supply connection for the electrical load
Fig 4: Electrical connections on CT1 version with relay 30A
178-10-M02 - CT1 manuale di uso e installazione
Pag. 6 / 32
