4.7. Signal light
The red light on the front of the CT1 signals the following conditions:
• A light briefly flashing every second indicates that there is power supply voltage present and that the service is
free and ready to be used.
• 5 fast flashes indicate that the coin has been accepted.
• A slow flashing light indicates that the delay of service is being counted (chapter 4.4).
• A constantly lit light indicates the service is in use.
178-10-M02 - CT1 manuale di uso e installazione
Pag. 8 / 32
FAVERO ELECTRONIC DESIGN
1) DIP-Switches
for time of service (TIME)
2) DIP-Switches
for delay of service (DELAY)
3) LOAD ON/OFF button

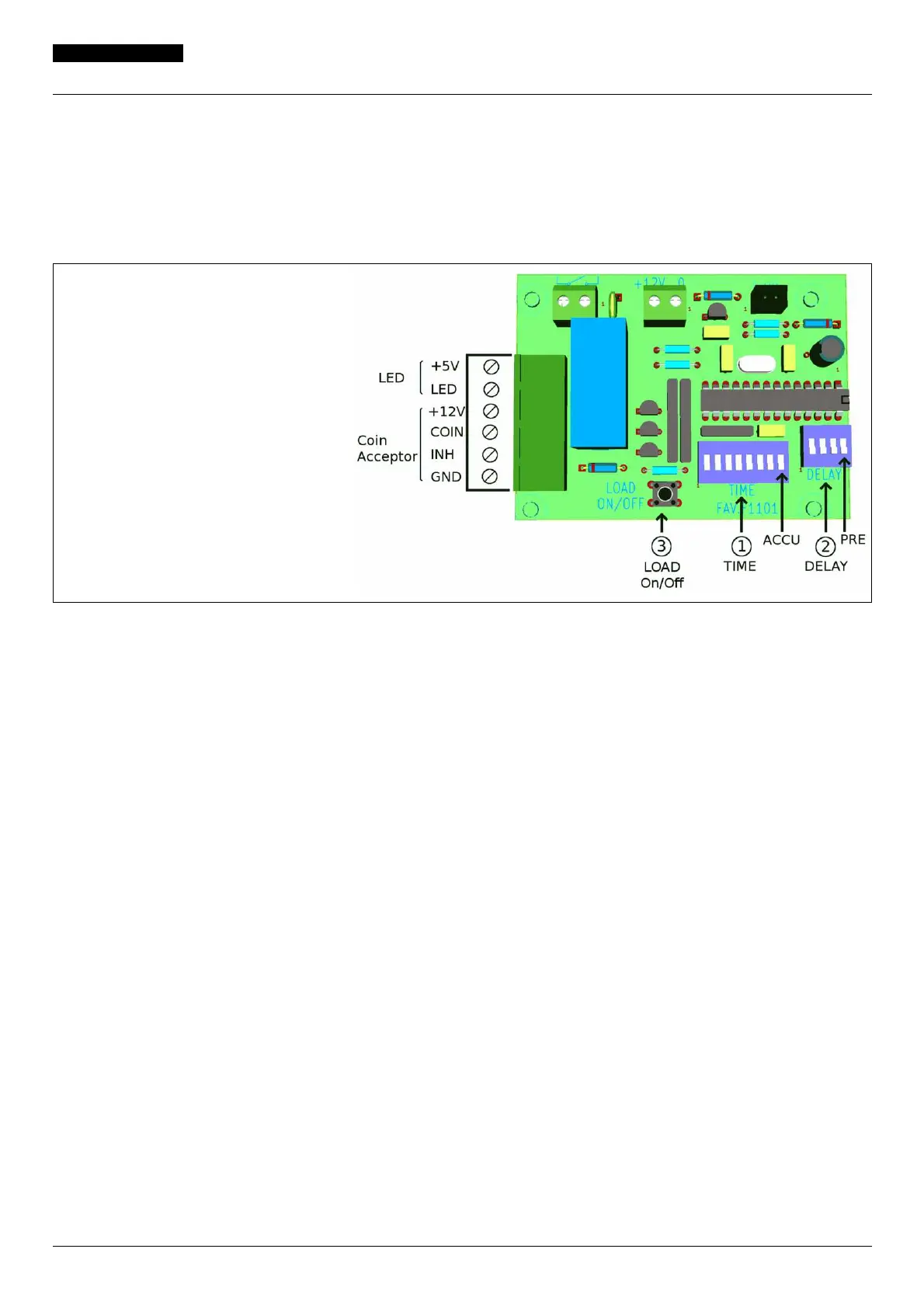

Fig 5: Electronic board.
