17

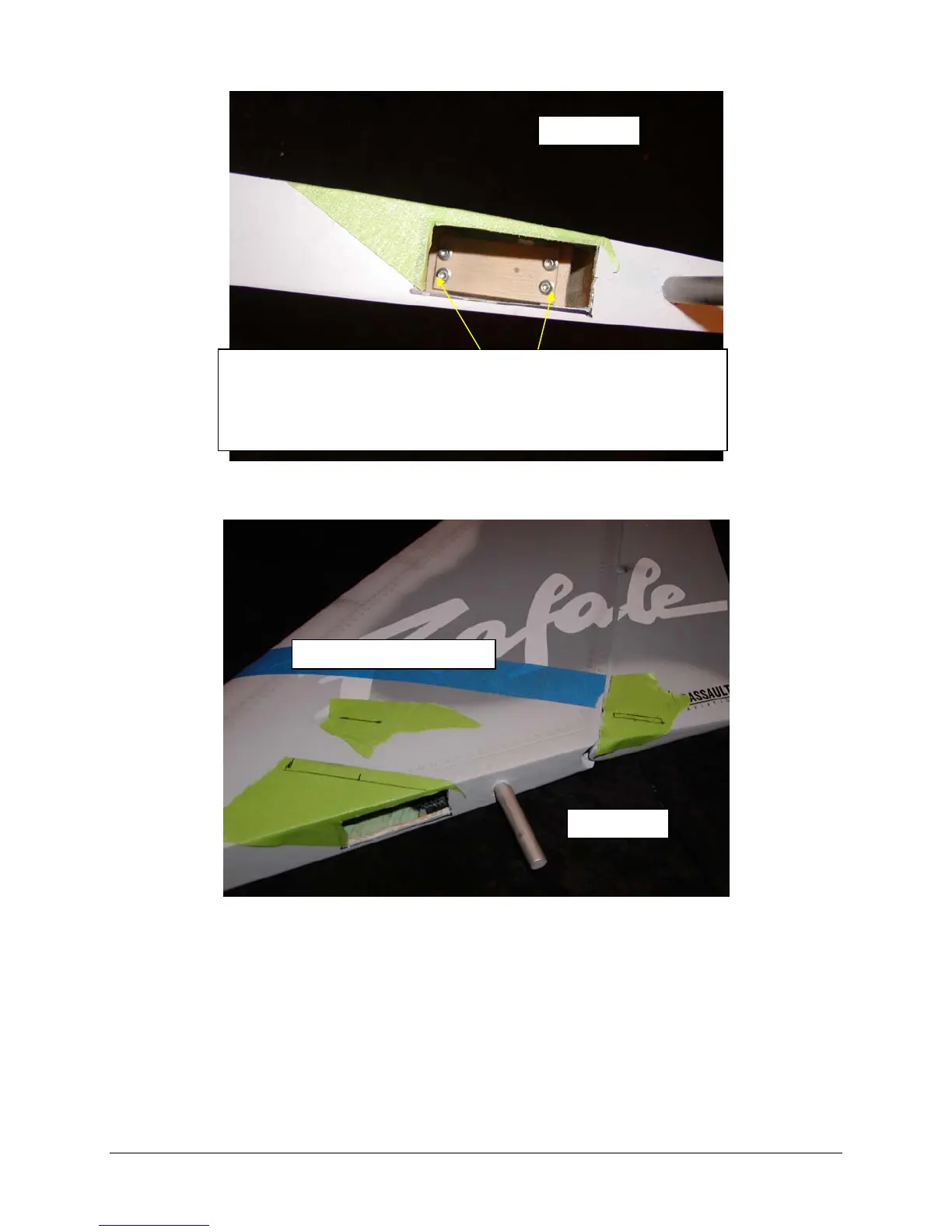

Layout the locations for the servo arm cut out and control horn as shown in photo 28
Using your receiver or servo cycler power up the servo and set it at neutral. Attach the
control arm at a vertical position. Mount servo in fin as shown in photo 27. The slot may
need to be enlarged in size slightly with a small file if the servo arm binds.
Secure control horn with adhesive and let cure.
Construct linkage as shown in photo 29 &30.
After adhesive is dry remove fixture. The servo installs with the
top of the servo mounting tabs making contact with the servo
rails, if the servo has reinforcement on the top tab it may need to
be removed so the servo will sit flush on the mounts. The servo
spline faces the front of fin.
La
out hole
ositions
Photo 27
Photo 28
