Assemble the rudder linkage; you may need to enlarge the hole in the control horn with a
7/64 inch drill for the connecting bolt bolt. Do not over tighten this bolt as the rod will bind as
the rudder is actuated.

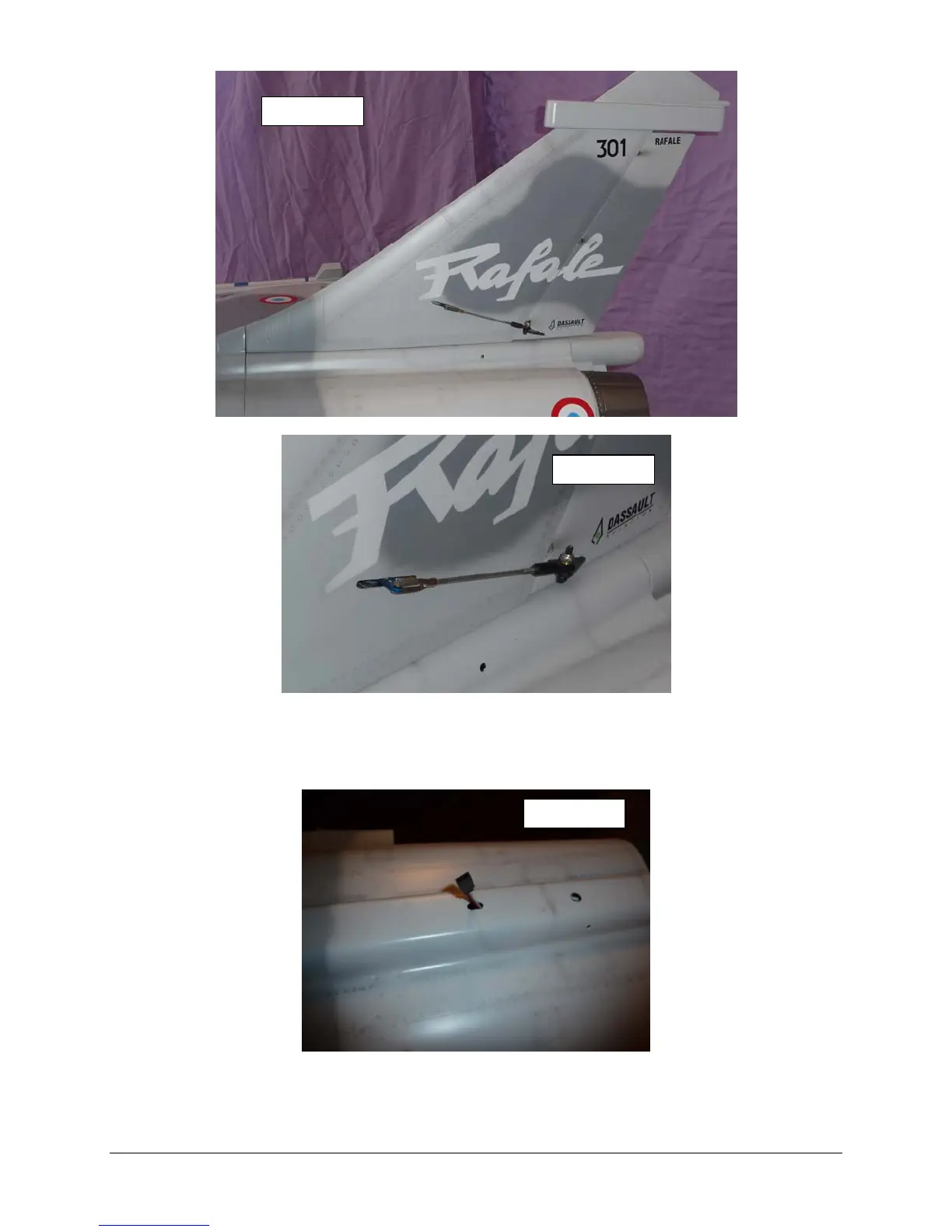

Cut a servo lead access hole in the fuselage as shown in photo 31.
Connect your servo extension and secure with tape or heat shrink tubing.
Secure the front of the fin to aft fuselage with the supplied bold and large washers, see
photo 23, and use Loctite on the threads. Secure the clamp bolt on the fin see photo 22.
Photo 31
Photo 30
Photo 29
