9
Wing Servo Mounting:
The production kit that was used for this manual had the servo bay cut outs position far back
towards the TE of the wing; this creates a height issue when using standard sized servos and
the stock flat hatches; see Photo 9.
The kit was also supplied with extra raised hatches to help solve this issue. I will cover the
servo installation with the raised hatches in this manual; however, for the model that I built I
devised a method to utilize the flat hatches. This required structural modifications not covered in
this manual (see Photo 10 for preview) and is covered in detail on the build thread that I started
on RC Universe, see the following thread for the details:
http://www.rcuniverse.com/forum/m_8458710/mpage_1/key_/tm.htm
A brief synopsis of the modifications:
Cut out section of wing skin
Remove factory servo mounting structure
Cut out new servo mounting structure from drawing and glue into place
Rotate section of wing skin 180 degrees and re-glue into place

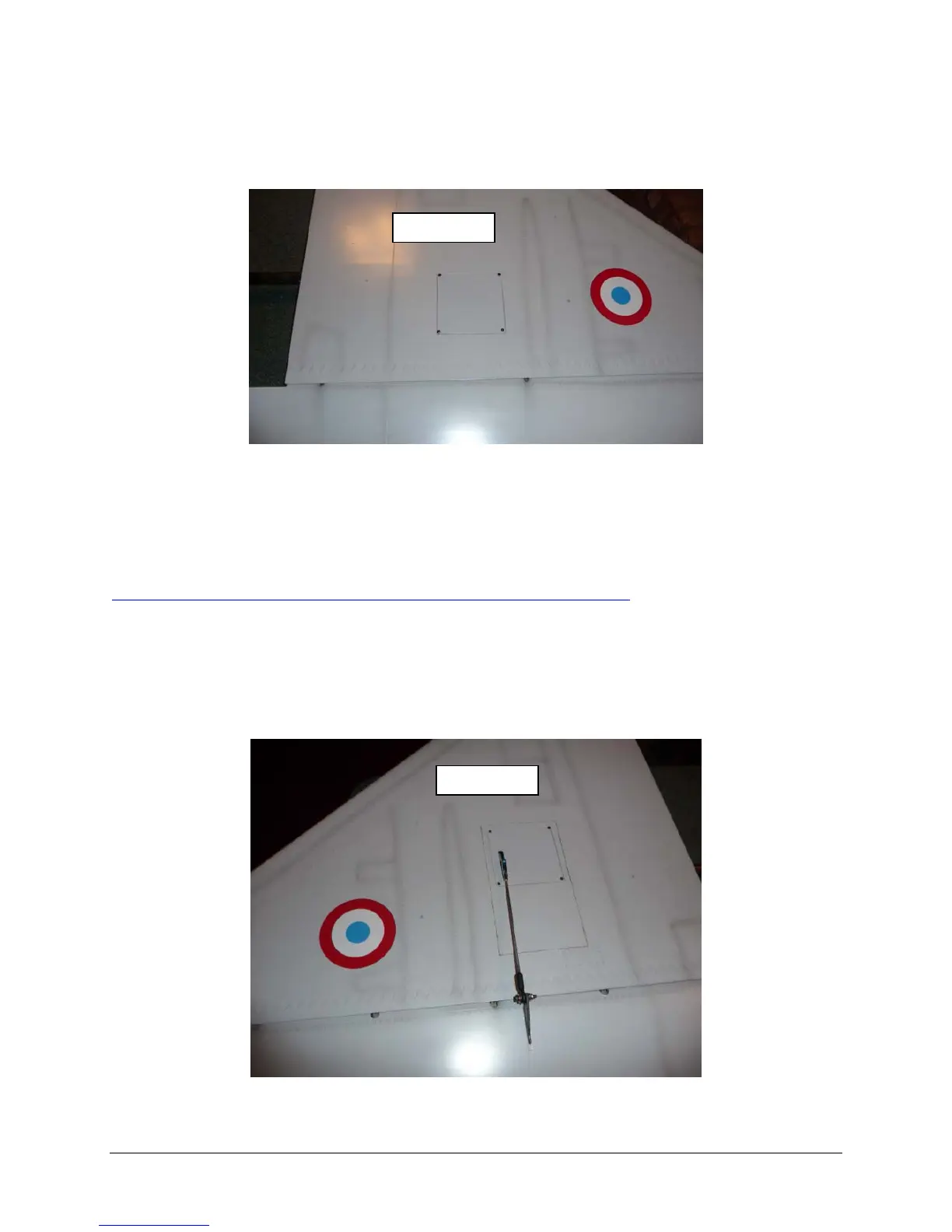

Factory Supplied Servo Bay:
Photo 9
Photo 10
