VAC 2006 • VAR 2006

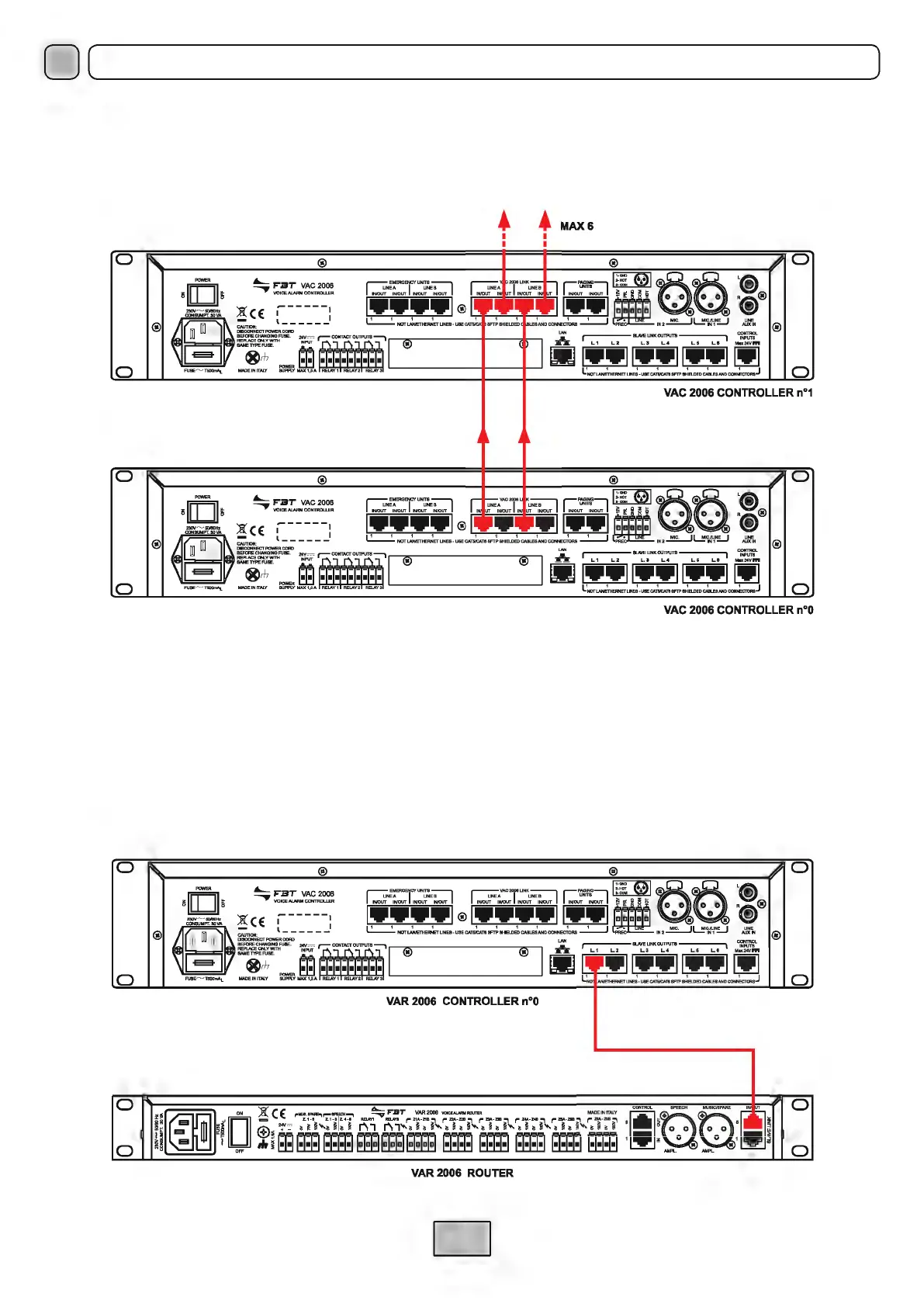

A) CONNECTION AMONG CONTROLLERS
Use Cat.5e SF/UTP cables in the ‘VAC 2006 LINK’ sockets (R3) to connect the controllers of the system (max 6) with one another.
B)
CONNECTING THE OUTPUT LINES
Use the ‘SLAVE LINK OUTPUTS’ sockets (R9) to connect the following to the controller:
B1) VAR 2006 router.
B2) VAIE 2250 compact emergency system.
B3) Amplifiers of the D
P
U range.
B1) VAR 2006 router
U
s
e Cat.5e SF/UTP cables to connect the ‘SLAVE LINK OUTPUTS’ sockets (R9) to the ‘IN/OUT SLAVE LINK’ s
ockets on the router.
o
• • MAX&
o o
o o
VAC 2006 CONTROLLER nº1
o o
o
VAC 2006 CONTROLLER nº0
o
o
VAR 2006 CONTROLLER nº0
o o
o o
VAR 2006 ROUTER
D
