System Manual | 2013 VAIE 2000 | Voice Alarm Integrated Systems
67
VAC 2006 • VAR 2006
UK

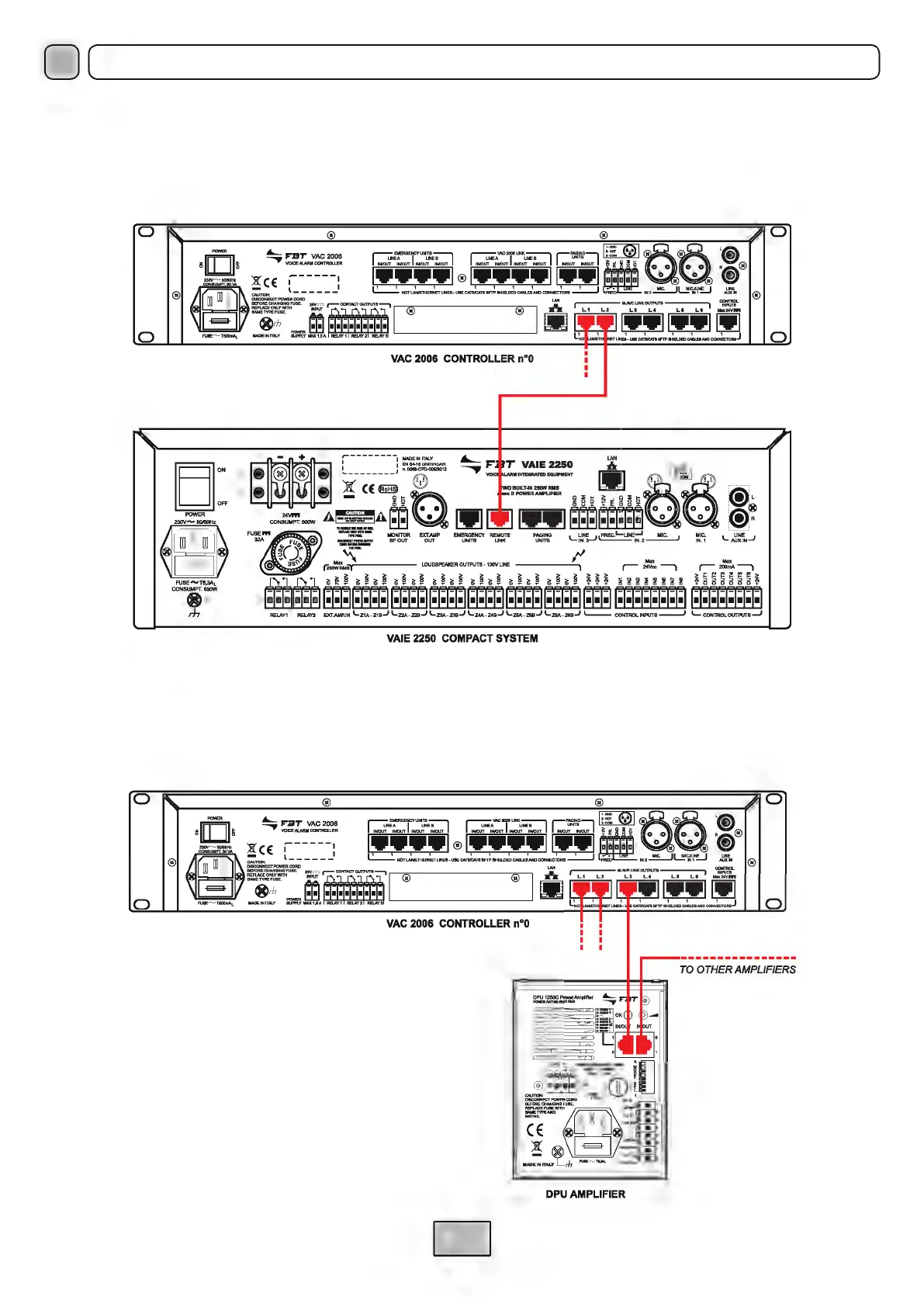

B2) VAIE 2250 compact emergency system
Use a Cat.5e SF/UTP cable to connect one of the ‘SLAVE LINK OUTPUTS’ sockets (R9) to the ‘REMOTE LINK’
socket on the VAIE 2250
compact system.
B3) Amplifiers of the
DPU range
Use a Cat.5e SF/UTP cable to connect one of the ‘SLAVE LINK OUTPUTS’ sockets (
R9) to the ‘IN/OUT’ socket on the amplifier (DPU 1125C,
DPU 1250C or DPU 1500C).
o
o
o
[EJJ:
POWER
~
o
o
VAC 2006 CONTROLLER nº0
VAIE 2250 COMPACT SYSTEM
VAC 2006 CONTROLLER
nº0
D
~POlll'EROONSlllPT.:
: : : : ~~--=M
@ •••• @
'W"Mt.--=
CE ® ~ ~ ~
!@ =
MADEINITALY L,+, ..... ~"""'-
DPU AMPLIFIER
o
TO OTHER AMPLIFIERS
