FEET AND METAL BAND INSTALLATION GUIDE
STEP 1
Mark the spot where the center of the dome is to be. Draw a circle with a radius consistent with the table below.
It is best to make a permanent mark where the center is (with a marker or drive in a screw) so that you know which
spot to go back to when double checking your measurements.
GLAMPING FG20 R= 2480 MM
GLAMPING FG30 R= 2965 MM
GLAMPING FG40 R= 3455 MM
GLAMPING FG50 R= 3950 MM
MM = MILLIMETER
What is needed:
• 15x feet
• 15x metal bands
• 15x nuts
• 30x washers
• 15x bolts
• 30x Anchor Bolts and washers
• Measuring tape, cord, chalk/marker (not included
in FDomes Delivery)

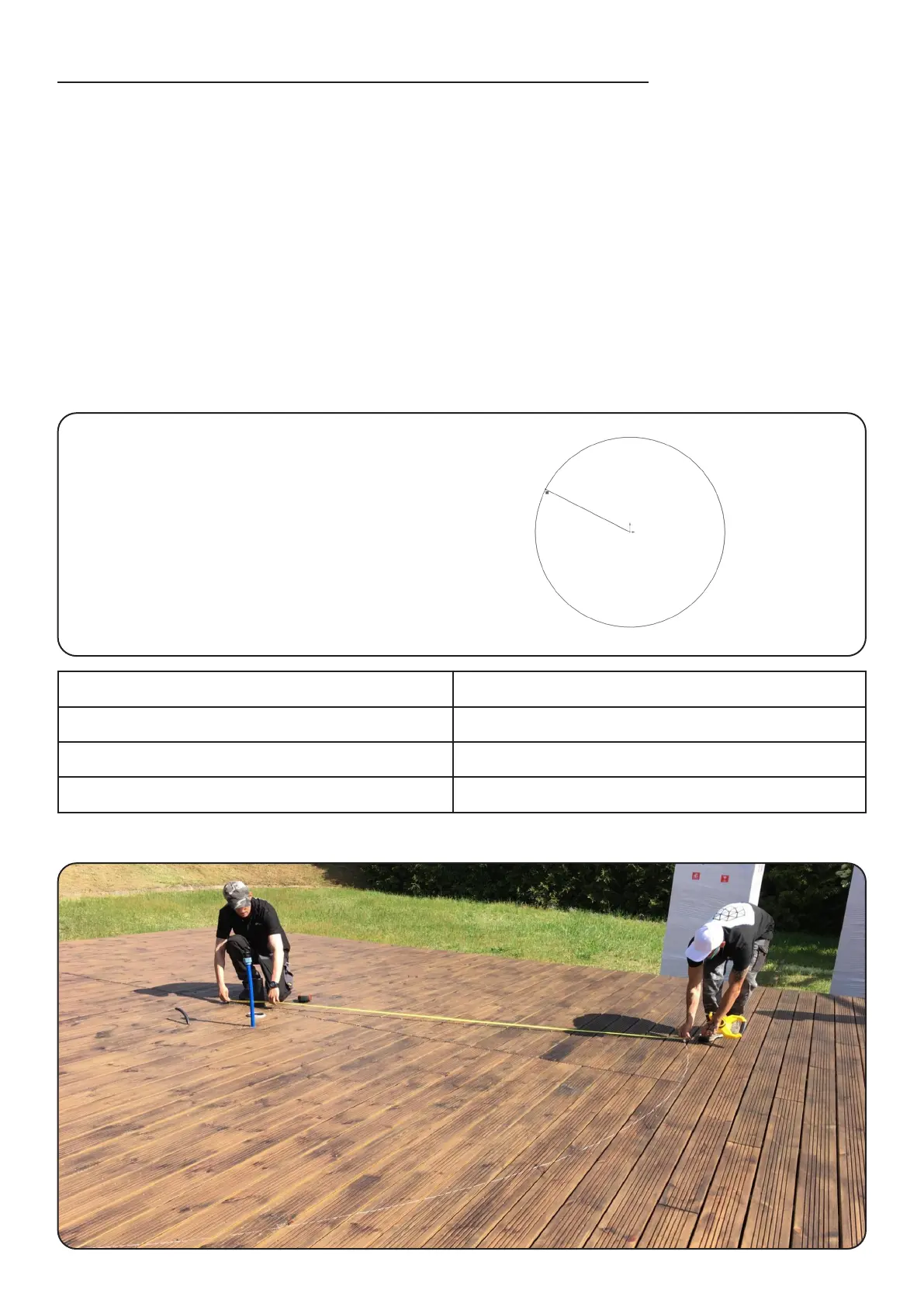

Drawing 1
Marked circle and a corresponding radius.
