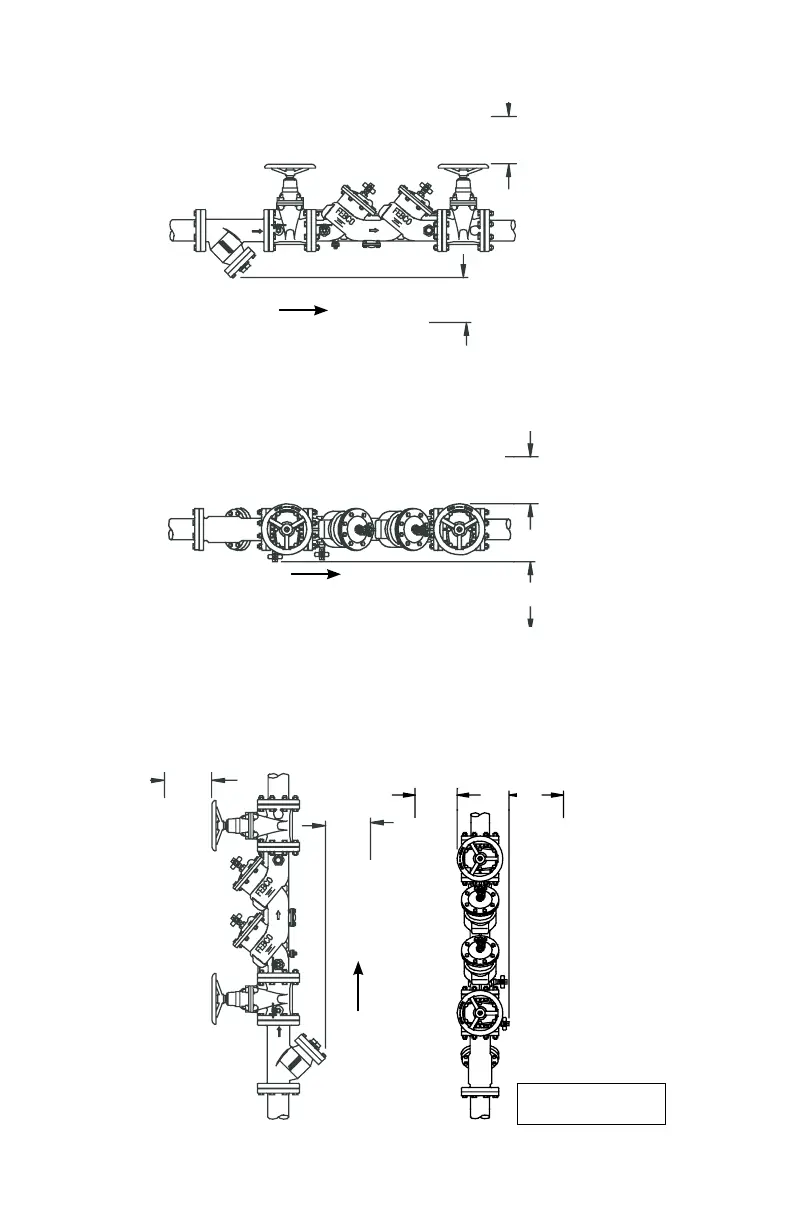

Typical Installation
RWWP
FRT
4175
12" Min (300mm)
Refer to Local Codes
6" Min (150mm)
Refer to Local Codes
Flow
HORIZONTAL INSTALLATION OF THE DC SERIES 850, LF850
& DCDA SERIES 856, 856ST
(Front View, Shown With Strainer)
6" Min (150mm)
Refer to Local Codes
18" Min (450mm)
HORIZONTAL INSTALLATION OF THE DC SERIES 850, LF850
& DCDA SERIES 856, 856ST
(Top View, Shown With Strainer)
Flow
Figure 2
Figure 1
12" (300mm) minimum
above all downstream
piping and use
RWWP
FRT
4175
12" Min (300mm)
Refer to Local Codes
6" Min (150mm)
Refer to Local Codes
Flow
VERTICAL
INSTALLATION
OF THE DC
SERIES 850,
LF850 & DCDA
SERIES 856,
856ST
(Front View,
Shown With
Strainer)
RWWP
FRT
4175
Flow
Flow
HORIZONTAL INSTALLATION OF THE DC SERIES 850
(FRONT VIEW, SHOWN WITH STRAINER)
HORIZONTAL INSTALLATION OF THE DC SERIES 850
(TOP VIEW, SHOWN WITH STRAINER)
12" min. (300mm)
Refer To Local Codes
6" min. (150mm)
Refer To Local Codes
6" min. (150mm)
Refer To Local Codes
18" min. (45mm)
6" Min (150mm)
Refer to Local Codes
18" Min (450mm)
VERTICAL
INSTALLATION OF
THE DC SERIES
850, LF850 & DCDA
SERIES 856, 856ST
(Top View, Shown
With Strainer)
Figure 3
Figure 4
CHECK WITH LOCAL
CODE REQUIREMENTS
